| Prod Model: |
TKF(R)-60DW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Write |
| Defrosting: |
Auto Defrosting |
| Type: |
Fixed-frequency Air Conditioner |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
CSA |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

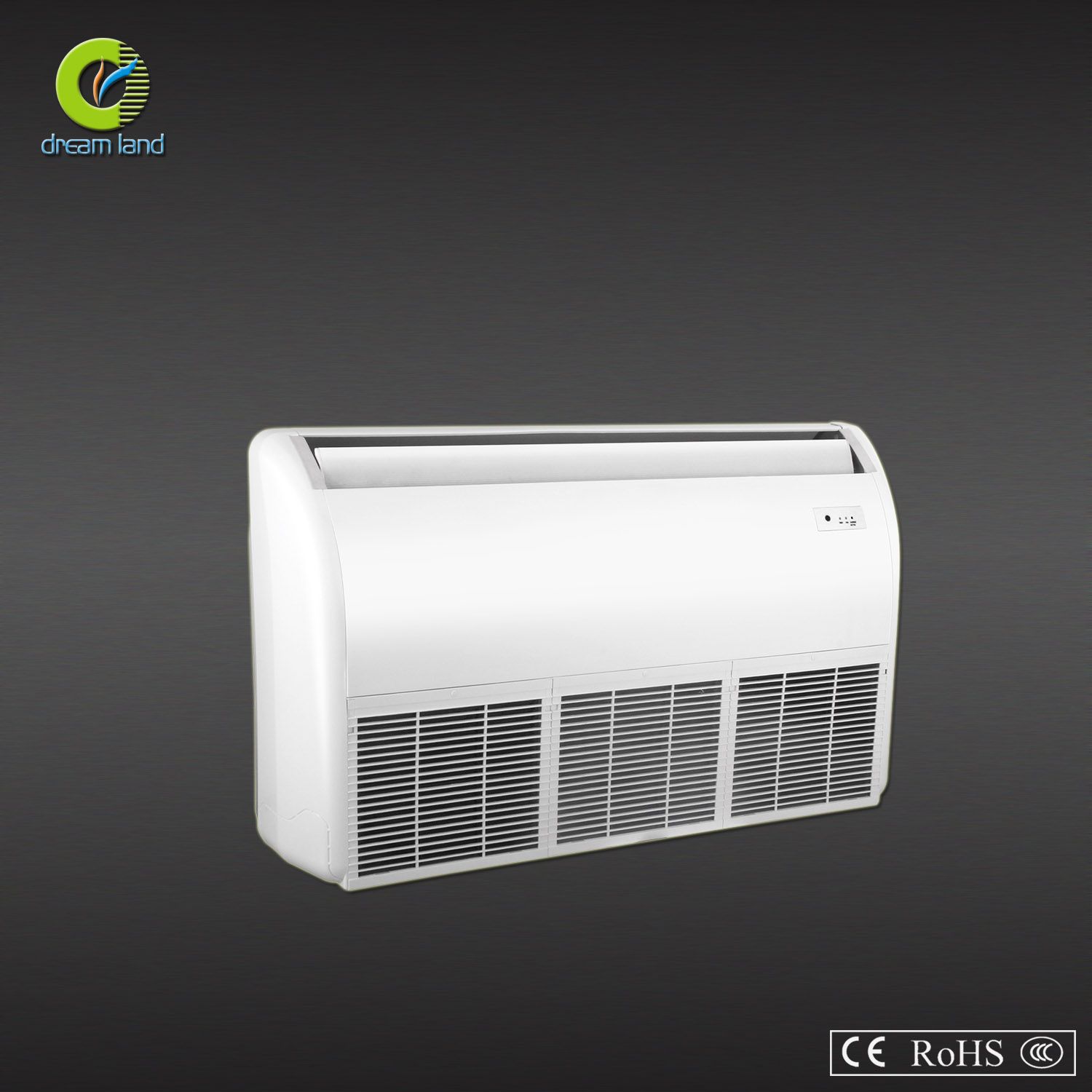

High Reliability Solar Air Conditioner (TKFR-60DW) ADVANTAGES:
1.Entirety design
2. Simple installation
3. High efficiency EER 4.0
4. Quiet running
5. Attrative Appearance
Basic features of the units: |
| 1 | Entirety outdoor and solar panel design |
| 2 | World famous brand compressor---Hitachi |
| 3 | LED display |
| 4 | Washable and movable anti dust air filter |
| 6 | 12 hour Timer function |
| 7 | With remote control |
| 8 | EER: above 4.0 |
| 9 | Easy installation, same normal air conditioner |
| 10 | Energy saving at least 50% comparing to normal air conditioner. |
| 11 | Enviornmently friendly gas--R410A |
| 13 | 100% copper pipes ensures the strong cooling capacity. |
| Model No. | TKF(R)-60DW |
| Power Supply:220-240VAC, 1PH, 50Hz |
| Performance |
| Capacity | Cooling | Btu/h | 20000 |
| W | 6000 |
| Heating | Btu/h | 22000 |
| W | 6600 |
| Noise | Indoor | dB(A) | ≤50 |
| Outdoor | dB(A) | ≤56 |
| Air Circulation | m³/h | 800 |
| Suitable Area | m² | 25~42 |
| EER | W/W | 3.88 |
| Btu/h/w | 13.24 |
| Power Consumption |
| Power Input | Cooling | W | 1350~1560 |
| Heating | W | 1350~1590+350 |
| Rated Current | Cooling | A | 6.14~7.09 |
| Heating | A | 6.14~7.23+1.6 |
| Vacuum Tube | Diameter*Length*Pcs | 47mm*620mm*11 |
| Dimensions |
| Indoor Unit | Net | mm | 905*673*243 |
| Shipping | mm | 995*765*311 |
| Outdoor Unit | Net | mm | 850*300*755 |
| Shipping | mm | 950*400*770 |
| Water Tank | Shipping | mm | 980*400*370 |
| Vacuum Tube | Shipping | mm |
| Weight |
| Indoor Unit | Net/Gross | kg | 30/33 |
| Outdoor Unit | Net/Gross | kg | 50/52 |
| Solar Collector | Net/Gross | kg | 16/17 |
| Loading Qty | in 20feet | sets | 42 |
| 40HQ | sets | 103 |
Solar Air Conditioner Application
Pre-checking
*Please check if the groundwire is rightly connected or not.
*Please check if the air strainer is fixed.
*If the solar air conditioner is idle for a long time,please rinse the strainer before start-up.
For more details,please consult the chapter Repair and Maintenance.
*The inlet opening and the outlet opening of the indoor and outdoor units should be unblocked.
Optimum operation
*Please set a proper comfortable temperature.Avoid exceedingly hot or cold,especially where the elders,children and patients live.
*When cooling,please use curtain or shutter to avoid sunlight from shining in.
*Please shut the windows,otherwise the convection of indoor and outdoor air will decrease the effect of cooling and heating.
*If you need to set the pre-runtime,please use the remote controller.
*Never place barriers,which baffle the airflow,near the indoor and outdoor units.It will decrease the effect of air conditioner system;even stop the running of the system.
*Please rinse the air strainer frequently.If the air strainer is blocked,it decreases effect of cooling and heating.
