| Prod Model: |
TKF(R)-60DW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compresser: |
Hitachi/Gmcc/SANYO |
| Application Areas: |
Office, Meeting Room, Restaurant, Hospital |
| Cooling Capacity: |
20000BTU |
| Energy Type: |
Solar Thermal Assisted |
| Type: |
Fixed-frequency Air Conditioner |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
GS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

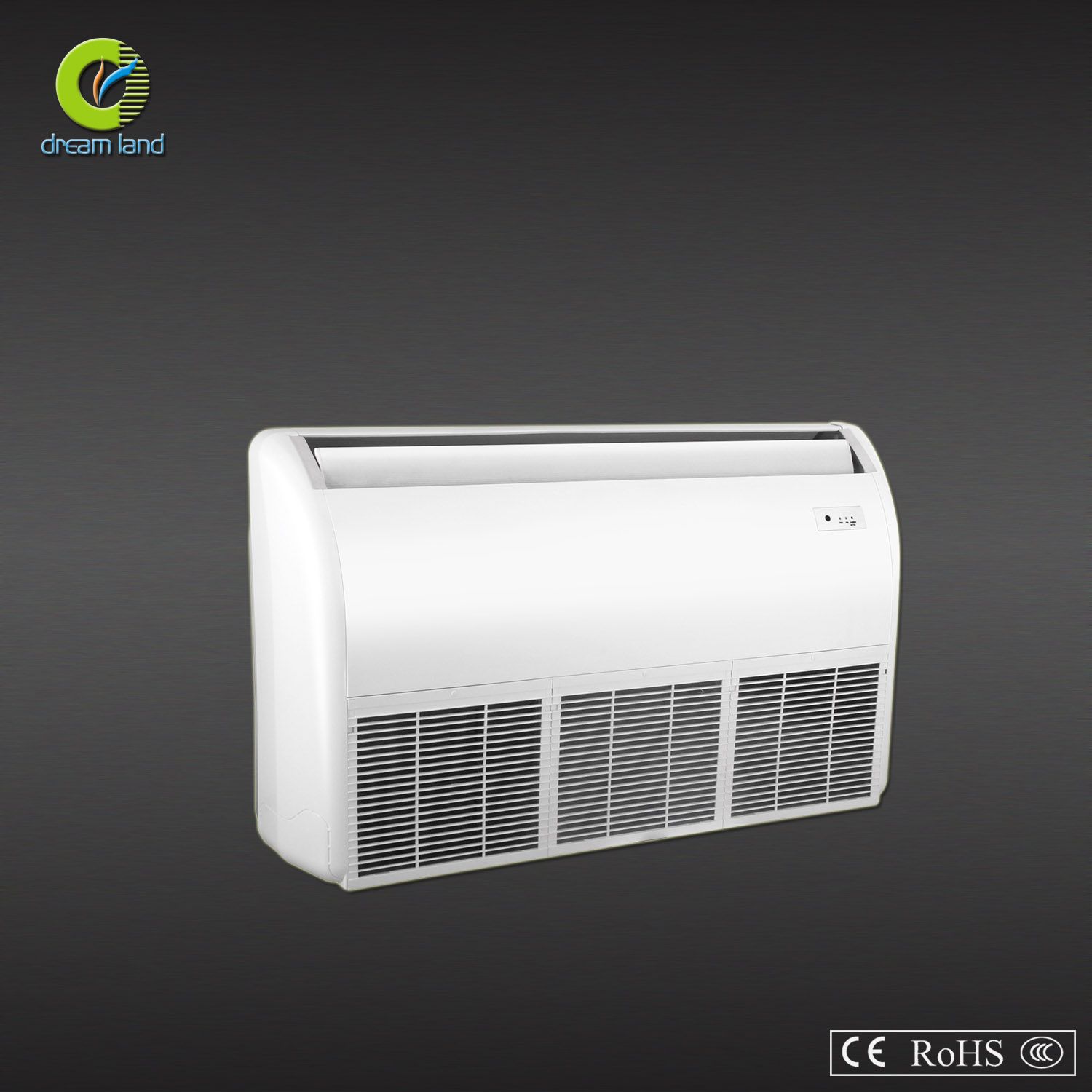

High Reliability Floor Ceiling Type Solar Air Conditioner(TKFR-60DW)
Specifications
1. Solar Air Conditioner
2. electricity-saving 30% to 50%
3. smooth running at -5 to 53 Celsius degree
4. easy installtion
Solar Air Conditioner
floor ceiling type,installed wherever you like
wild angle air supply
easy installation and maintenance
low-noise running
world famous brand compressors
high reliability and long lived
flexible installation on the ground or under the ceiling according to different requirement
muti self-protection functions
Why saving energy? |
1. Hot water inside the collector helps reducing
the consumption on compressor |
2. AC adopts high efficiency heat-exchange system |
Installation suggestion |
1. Similar to conventional ac |
2. Facing south is not a must |
3. Suggest outdoor unit lower than indoor unit for drain water supplement to collector |
4. When empty the air, don't forget the pipes for collector |
5. Fill water when newly installed |
| Model No. | TKF(R)-60DW | TKF(R)-72DW | TKF(R)-100DW | TKF(R)-120DW | TKF(R)140DW |
| Power Supply:220-240VAC, 1PH, 50Hz |
| Performance |
|
| 1.5Ton | 2Ton | 3Ton | 3.5Ton | 4Ton |
| Capacity | Cooling | Btu/h | 20000 | 24000 | 36000 | 41000 | 48000 |
| W | 6000 | 7200 | 10000 | 12000 | 14000 |
| Heating | Btu/h | 22000 | 27000 | 40000 | 46000 | 55000 |
| W | 6600 | 7900 | 12000 | 14000 | 16000 |
| Noise | Indoor | dB(A) | ≤50 | ≤50 | ≤53 | ≤53 | ≤56 |
| Outdoor | dB(A) | ≤56 | ≤58 | ≤58 | ≤60 | ≤60 |
| Air Circulation | m³/h | 800 | 1250 | 1700 | 1800 | 1900 |
| Suitable Area | m² | 25~42 | 30~48 | 42~67 | 50~80 | 58~93 |
| EER | W/W | 3.88 | 3.82 | 3.87 | 3.96 | 3.87 |
| Btu/h/w | 13.24 | 13.03 | 13.2 | 13.51 | 13.2 |
| Power Consumption |
| Power Input | Cooling | W | 1350~1560 | 1700~1900 | 2400~2640 | 2900~3150 | 3500~3740 |
| Heating | W | 1350~1590+350 | 1700~1950+350 | 2470~2650+350 | 2900~3180+350 | 3500~3760+350 |
| Rated Current | Cooling | A | 6.14~7.09 | 7.73~8.64 | 10.91~11.95 | 13.18~14.32 | 15.91~17 |
| Heating | A | 6.14~7.23+1.6 | 7.73~8.66+1.6 | 11.23~12.05+1.6 | 13.18~14.45+1.6 | 15.91~17.09+1.6 |
| Vacuum Tube | Diameter*Length*Pcs | 47mm*620mm*11 | 47mm*620mm*11 | 47mm*700mm*13 | 47mm*1200mm*13 | 47mm*1200mm*13 |
| Dimensions |
| Indoor Unit | Net | mm | 905*673*243 | 1288*673*243 | 1672*673*243 | 1672*673*243 | 1672*673*243 |
| Shipping | mm | 995*765*311 | 1375*765*311 | 1760*765*311 | 1760*765*311 | 1760*765*311 |
| Outdoor Unit | Net | mm | 850*300*755 | 940*300*755 | 950*355*835 | 950*355*1255 | 950*360*1255 |
| Shipping | mm | 950*400*770 | 990*400*770 | 1140*460*910 | 1140*460*1340 | 1140*460*1340 |
| Water Tank | Shipping | mm | 980*400*370 | 980*400*370 | 1105*400*325 | 1120*400*400 | 1120*400*400 |
| Vacuum Tube | Shipping | mm | 765*280*205 | 1270*280*210 | 1270*280*210 |
| Weight |
| Indoor Unit | Net/Gross | kg | 30/33 | 40/43 | 40/43 | 45/49 | 45/49 |
| Outdoor Unit | Net/Gross | kg | 50/52 | 55/58 | 73/76 | 95/100 | 97/102 |
| Solar Collector | Net/Gross | kg | 16/17 | 16/17 | 18/21 | 23/26 | 23/26 |
| Loading Qty | in 20feet | sets | 42 | 37 | 28 | 20 | 20 |
| 40HQ | sets | 103 | 89 | 69 | 40 | 40 |
