| Prod Model: |
CUSTOMIZED |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Evaporator |
| Condition: |
New |
| Model Number: |
Customized |
| Performance: |
3.5 Million Sets Per Year |
| Size: |
Width 590 (Max), Length 2050 (Max) |
| Coating Thickness: |
Thickness of Coating40 90um |
| Aluminium Evaporator: |
Al-Plate |
| Principle: |
Regenerative Heat Exchanger |
| Structure Material: |
Metal Material |
| Application: |
Cooler |
| Heat Transfer Surface: |
Plate Heat Exchanger |
Product Description

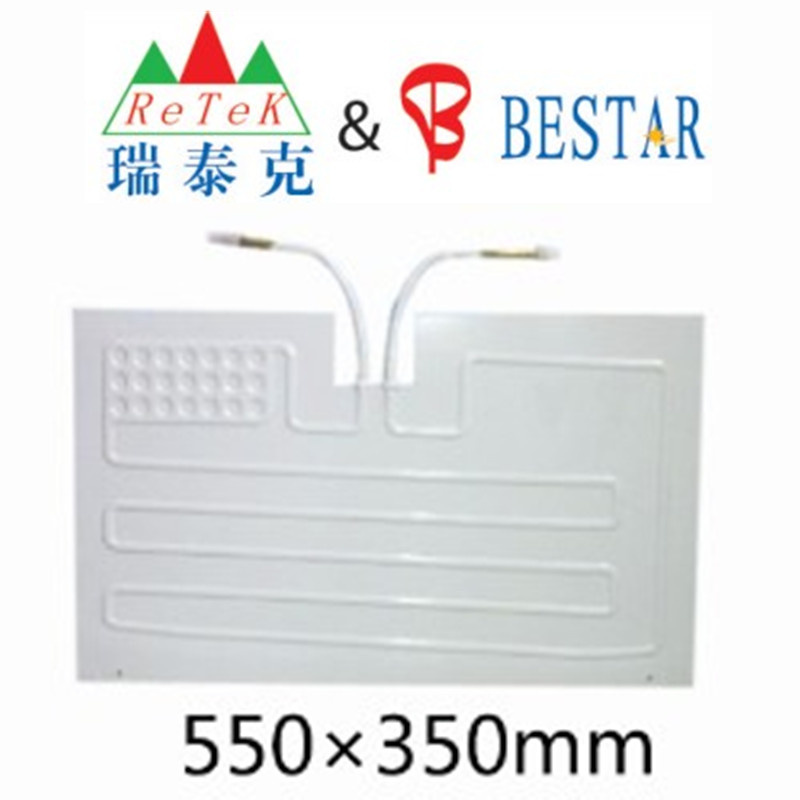

Aluminium Roll Bond Evaporator
We can supply many kinds of Roll Bond Evaporator,Evaporator,Aluminium Evaporator,Refrigerator
Evaporator , Evaporator For Refrigerator , Aluminium Roll Bond Evaporator,Aluminium Fridge
Evaporator, aluminium plate evaporator , Global Evapor,Liquid Evaporator,Commercial Evaporator ,
Roll Bond Evaporator,Aluminium Evaporator,Evaporator For Refrigerator
PRODUCT DETAILS
aluminium inflation evaporator, aluminium evaporator, roll bond evaporator,refrigeartor evaporator,
refrigeration parts
We supply roll bond evaporator(evaporator for refrigerator and ice
Box),evaporator,condenser,refrigeration .
Raw material |
Al-plate: finished products thickness: 1.1 2.0mm,
raw material Al plate thickness: 1.4 2.5mm |
Structure |
Double side rollbond evaporator,
single side rollbond evaporator,
part single side rollbond evaporator |
Key process |
Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing |
Technical Standards |
1) Size: width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. |
Performance |
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements. |
Performance |
3.5 million sets per year (10000 sets per day) |
|
R134a Cooling System Tube Inside standards |
Residual moisture |
≤5 /100cm3 |
Residual impurity |
≤1 /100cm3 |
Residual mineral oil |
≤100 /100cm3 |
Residual chlorine |
≤5vloppm |
Residual paraffin |
≤3 / |
Biggest single impurity |
≤0.5mm |
|
Specification of coating |
Coating thickness |
thickness of coating40 90 μ m |
Hardness of coating |
≥2H |
Impact of coating |
50cm?kg/cm impact, no crack |
Adhesion of coating |
≥two grade |
Flexibility of coating |
Around R=3D bend 180?, no crack or no fall off |
Color tolerance of powder
painting |
E≤1.5 |
|
Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.
With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.
Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
