| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Daqin Professional Cutter of Screen Protector ,Las |
| Parcel: |
Software+Laser Cutting Machine+Materials |
| Voltage: |
110V/220V |
| Total Weight: |
45kg |
| Power: |
200W |
| Max Cutting Area: |
210mm*297mm |
| Inventory: |
in Stock |
| Shipping Method: |
Usually by Express Company(by Air) |
| Language: |
En/Cn |
| Use: |
Making Screen Protectors for Any Models Phone |
| Usage: |
Mobile Screen Protector |
| Material: |
PET |
| To Fit Screen Size: |
All Size Screen |
| Compatible Brand: |
All Brands |
Product Description

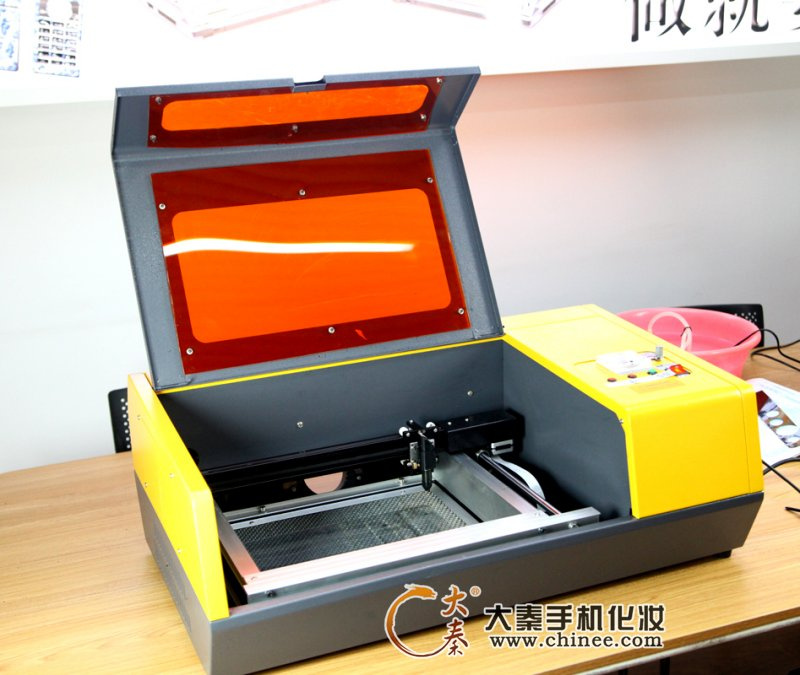

Mobile phone screen protector cutting machine
Features:
1. Precise Cutting.
2. Fine and smooth edge, no rough selvedge.
3. High-compatibility of materials.
4. On-production production, no swelling inventories.
5. Easy to use.
Function:
The entire system is made up of the Daqin mobile screen protector design software and the cutting machine.
Application range: Cutting various model of mobile phone screen protection film worldwide(Brand of newly published mobile phone protection film will be updated in time ), personalized screen protection film of the camera, MP3, MP4, tablet, PC etc.
The Daqin software runs on the computer. Various dimension data of the screen protection film are stored in the Daqin software. Run the software and choose the corresponding data of the screen protection film according to the model and brand, then the chosen data will be output to the Daqin screen protector cutting machine. After that, it will cut out the corresponding shape of the screen protection film with the material of PET, PVC etc. Also, the user can add data of new model of mobile phone screen film.
Property right:
Special announcement: Daqin automatic screen protector cutting system won TWO national patents, with proprietary intellectual property rights.
Patent number:
201210280019.7
201220389999. X
|
Beam type: |
CO2 |
Beam power |
40W(700) |
|
Cooling system |
Circulating water cooling system |
Exhausting fume method |
Back exhaust |
|
Max cutting area |
297mm*210mm |
Power |
220V 50Hz |
|
Cutting precision |
±0.01mm |
Cutting speed |
<50cm/s |
|
Drive type |
0.9°Stepper motor |
Communication interface |
USB Print line |
|
Operating temperature |
5-45 |
Machine size |
830mm*500mm*250mm |
|
Total Weight: |
32kg |
Total Power |
200W |
DAQIN, Global Leader of mobile phone sticker machine, sell well in 73 countries since 2002. Daqin establish the first global mobile phone sticker business institute. Mission: Raise the value of mobile sticker industry, help 10 million merchants succeed!
As another wonder of China, in the 12 years process, DAQIN made the best mobile phone sticker machine and DIY product, fulfilled dreams of millions of entrepreneurs in the mobile phone sticker machine field. 4 of DAQIN's products have a 70% market share in the global market. For the mobile phone sticker machine, DAQIN is your first choice!
DAQIN has almost 20 kinds of national registered trademarks and product patents. Successfully attained the SGS certification and the ISO9001: 2008 certification.
Main Products and Serivce
Custom Mobile Sticker Machine
Mobile phone sticker design Master
Custom mobile phone case printer
Mobile phone screen protector film cutting machine
Mission
DAQIN Let'everyone in the world own a Unusual mobile phone, Let humans redefine the value of mobile phone!
DAQIN, As a non-mobile phone maker. Let'everyone in the world own a Unusual mobile phone, and Let humans redefine the value of mobile phone.
Will you join us?
Together we change the human's definition of mobile phone
Vision
Raise the value of mobile sticker industry, help 10 million merchants succeed!
Daqin establish the first global mobile phone sticker business institute. Daqin mobile phone sticker business institute is an organization that combines service, technique, marketing and management as a whole. It provides multiple services such as: Guidance to open a store, store design, marketing, product structure design and technical support etc.
Corporate Value
Customer first: Customer success is our success.
Team: Undertake, grow and share together.
Pasion: Never give up, optimistic. Do it now, do perfect!
Creative: Creative thinking, Creative work.
Good faith: Integrity and compliance, Commitment should always be kept!
