| Prod Model: |
SC15024-10.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
9" Inch |
| Structure: |
Pet + Glass |
| Connector: |
Pin 6 12c Interface |
| Thickness: |
1.4 ± 15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
Projection Capacitive Touch Screen |
| Ratio: |
16:9 |
| Resolution: |
1024*600 |
| Aspect Ratio: |
16:9 |
| Application: |
Public Information Inquiry System |
| Screen Type: |
Capacitive |
| Resistive Touch Screen Type: |
Analog |
| Customized: |
Customized |
| Screen Size: |
9 Inch |
Product Description
Product Description

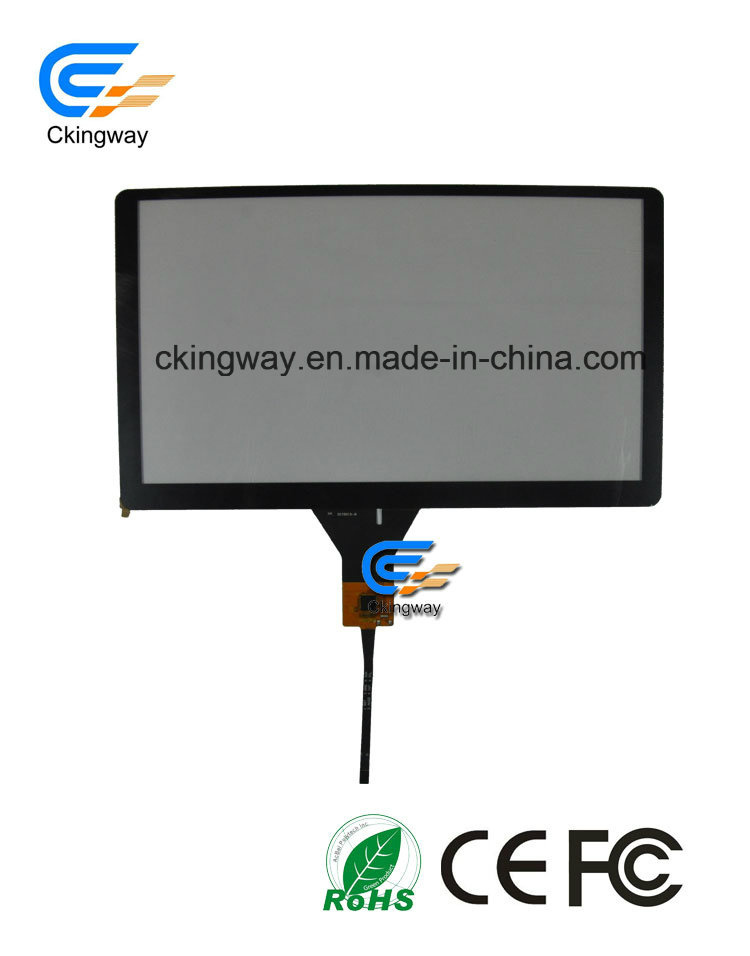

the feature of High Quality G+G Structure 9 Inch TFT 10 Touch Points Touch Screen as below:
1.Operates with any medium (finger, pencil, gloves, etc.)
2. Consistently accurate , accurate response
3.Relatively resistant against dirt and spray water
4.Very thin frame
5. Exact registration and precision due to high touch resolution
6. Light and compact design
7. Lowest priced technology that is most frequently used
8. Available custom Service
| Size | 10"00 inch |
| Structure | PET + Glass |
| Connector | Pin 6 12C interface |
| Thickness | 1.4 ± 15 mm |
| Touch Media | Finger, Touch Pen |
| Type | Projection Restistive Touch screen |
| Ratio | 16:9 |
| Resolution | 1024*600 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 2.8 ~ 3.3 V DC |
| Transparent | ≥ 83% |
| Screen Resistance | / |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 10 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 20ºC ~ +70ºC |
| Storage Temperature | - 30ºC ~ +80ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
High Quality G+G Structure 9 Inch TFT 10 Touch Points Touch Screen for packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
High Quality G+G Structure 9 Inch TFT 10 Touch Points Touch Screen for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated
Company Information
Ckingway Technology Co.,Ltd. Established in 2009, We focus Researching & Developing, Design, Manufacture and sales integrated into one target on Resistive Touch panel, Capacitive Touch Panel and LCD/LCM (Liquid Crystal Display Module). Coming along with Electronics consumer products increasing rapidly recently, Our product has been holding steady marketing share in Touch display field under our teamwork strongly, while industry chain getting more ruggedized , professionalized.
Ckingway's Product range of application widely, is applied to Automobile electronic, Medical Equipment, Industrial Control, Security monitor and Digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, All products met RoHS testing request completely and have RoHS certification.
Ckingway holds Business ideology report that: Quality and service will not stopping to develop to be excellent., Creat value for customers. We implement management policy with institutional and hommization combination, For" Connecting People, as career into integrity, Profits shared each other, Progressing by together" talent development strategy. R&D team with Efficient and unite we had, can be make a response to market rapidly.
FAQ
Q:Sample Policy
A:Free sample,freight cost paid by customer.
Q: Sample leading time ?
A:3-5 days if you need to print your logo.
1-2days for our exsiting samples for reference.
Q :Production time ?
A:10-15 days after sample confirmed.
Q:shipping?
A:Usually we deliver our goods by DHL,UPS, FedEx for the small orders, for large quantity you can choose by sea or by air.
Q:Place an order as OEM to produce under our own brand?
A:Yes, our company accepts OEM and ODMONLY for the following types:
Resistive Touch Panel (3.5 inch to 24 inches)
The sizes of the Touch Panel can be adjusted according to the customers' requirements
