| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Refrigerate |
| Cooling Method: |
Direct Cooling |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description

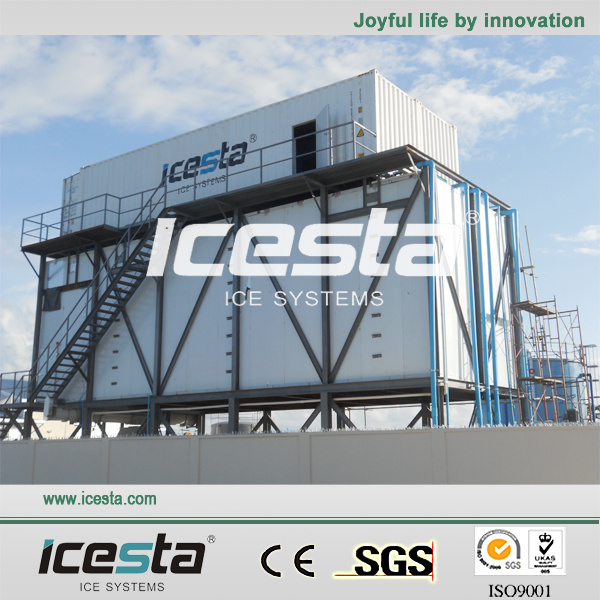

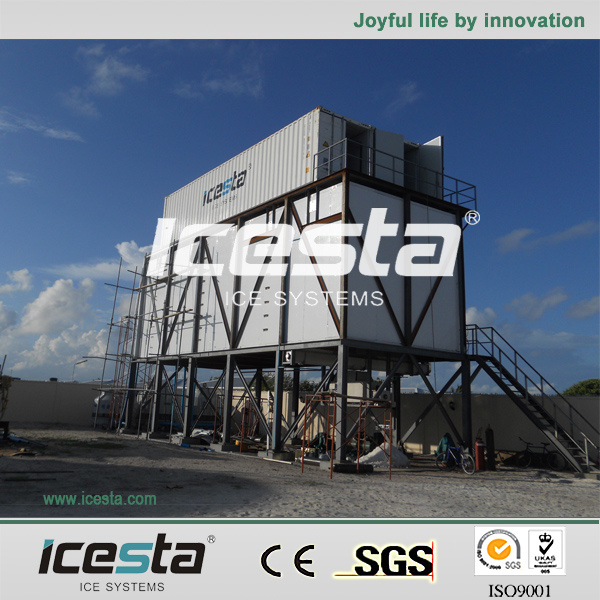

Containerized Ice System
Basic features:
*one-stop service
*Ice-making process can be monitored
*Fast cooling in few Mins
*Long lifetime
Concrete cooling systems:
Flake ice machine
Ice machine touch screens
Ice Rake hoist assembly
Discharge screw ice conveyor and pneumatic delivering system
Ice weighing system
Automatic ice storage bin
Industry Applications
Temp. Reduction of Mine
Concrete construction project
Flake ice selling
Product details:
TOP-Quality Ice Making Evaporator (Drum)
*UNIQUE Strict ICESTA quality control system (ERP SYSTEM controlled)
*Delicate welding technics with X-RAY. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the HACCP request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
BITZER Refrigeration System
*Superb Stability and reliability, long use life.
*Energy-efficient
----Refrigeration can be used many times due to the tight, high quality refrigeration system
PATENTED H-M Control System
Ice machine touch screen:
Patented ICESTA ice machine control system gives operators the following experiences:
Vivid images for easy operation
Smart displaying for easy diagnoising
Detailed instructions for easy touble-shooting
Humane parameter setting for convenient system minor adjustment
Intelligent and high definition screen for easy observation
Ice storing and delivering system
Intelligent ICESTA ice storing and delivering control system stores, delivers and loads ice all automatically:
Infrared sensor detects ice level inside ice storing bin and automates ice raker system
SICK detectors help adjust ice delivering speed and avoid ice jamming
Omron limit switches help automate ice loading and delivering
Smart displaying of failure records gives instructions as to how to troubleshoot and reset the current failure.
Rake Hoist assembly
ICESTA rake hoist system is composed by reducer with monitor, chain wheels, chains, bearings, steel rope wheels, supporting mechanism. The chains are driven by the chain wheels that are moved by the reducer with monitor, and the moving chains will in the turn move the steel rope wheels, with whose friction, the steel ropes are to move the ice rake mechanism up and down.
Advantages of ICETA patented ice rake assembly:
The design is the first type ever found in the market
The design simplifies the rake and hoist assembly and brings down the fabrication cost
The design reduces chances of maintenance by using fewer chains and chain wheels
The design is more compact and saves space which is used for ice storing
The design has included a balanced steel rope structure, which makes the rake assembly move more smoothly and stably
Materials for this assembly can be stainless steel or galvanized steel for different industries.
Discharge screw conveyor
Single discharge screw is used for smaller quantity of ice discharge for smaller ice storing bin.
Dual discharge screws are used for bigger quantity of ice discharge for bigger ice storing bin.

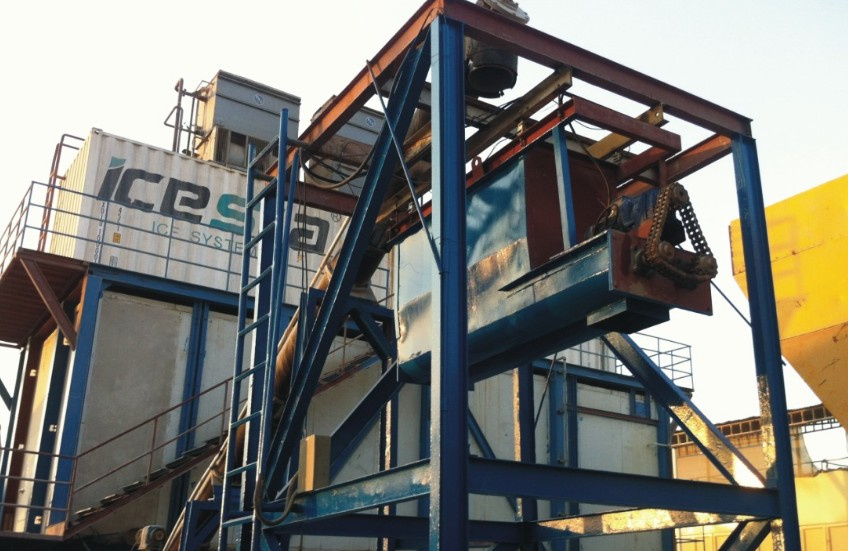

Pneumatic delivering system
A pneumatic delivering system is normally used for long distance ice conveying and is normally composed by the following components:
Metering screw conveyor with lump breaker and drive assembly
Blower unit with monitor
Air chiller with condensing unit
Conveying valve
Electrical control panel
Diverter valves
Line couplings, conveying lines, elbows(all shipped loose fir field installation)
Cyclone receiver
Ice weighing system
An intelligent and accurate ice weighing system is crucial for correct ice dosing. ICESTA is using world renowned scale which is the key component for this ice weighing system. An ice weighing system normally comprises of the following:
1. Scale 2. Ice weighing (Pneumatic hopper or buffer tank) 3. Analogue-to-digital data decoder
| Model | IFCT-20T | IFCT-30T | IFCT-40T | IFCT-50T | IFCT-60T | IFCT-80T |
| Daily Output(T/day) | 20 | 30 | 40 | 50 | 60 | 80 |
| Cooling capacity(KW) | 118 | 200 | 236 | 320 | 345 | 472 |
| Container type | 20 | 40 | 40 | 40 | 40 | 40 |
Dimension(mm) | L | 6100 | 12200 | 12200 | 12200 | 12200 | 12200 |
| W | 2440 | 2440 | 2440 | 2440 | 2440 | 2440 |
| H | 2590 | 2590 | 2590 | 2590 | 2590 | 2590 |
