| Prod Model: |
SP-660 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(L*W*H): |
3550*1330*2350mm |
| Voltage: |
380V/50Hz |
| Weight: |
4000kw |
| Power(W): |
45kw |
| Warranty: |
1 Year |
| Control Method: |
PLC |
Product Description
1. Usage:

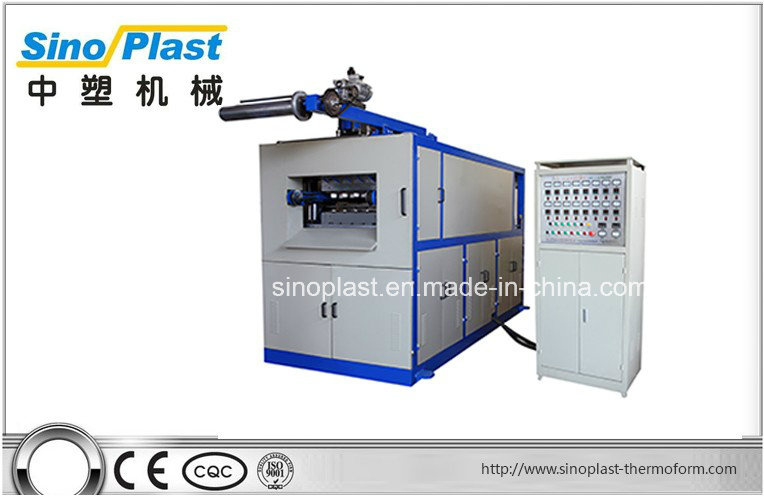

SPC-660C Automatic Disposable Plastic Cup/Lid/Bowl/Plate Thermoforming Machine is mainly used to formPP/PS/PET/PVC sheet into various kinds of disposable plasti cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup, etc. It could also make some regular shape products, such as plate, bowl, cover, lid, dish, etc with different moulds.
2. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter. The feeding length is controlled by the encoder.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.4) The up mould is fixed and the down mould movement is driven by twin cam. 5) There are total 16 heating zones. The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.
8) This machine adopt PLC and touch screen to control.
3. Main Technical Parameter:
Model |
SPC-660C |
Mould Driving Method |
Cam |
Approximate Max. Forming Area |
660 x 300 mm |
Approx. Running Speed |
15-30 Stroke / min approx. during production |
Approx. Sheet width required for feeding. |
500 - 660 mm in rolls. |
Mode of cutting arrangement. |
In mould automatic |
Sheet thickness Range |
0.20 - 2.0 mm |
Material |
PP, PS, PET, PVC,PLA |
Max. Draw depth,
i.e. cup length. |
140 mm (Could be special design) |
Oil Pump Motor Power |
11KW, 6P |
Sheet Feeding Motor |
2.2KW |
Max. Sheet roll diameter. |
800 mm |
Heating arrangement |
Top + bottom
heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. |
PID K-Type |
Type of Mould |
Multi cavity
1 - 3 row. |
Approx. Electrical Consumption |
45KW/hr |
Approximate Dimension |
L3100×W1500×H2500 (mm) |
Approximate Weight |
4000Kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.
Packaging & Shipping
Macine packed by Wooden case or Plastic film
Our Services
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is "Credit by Quality, Market by Service".
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
FAQ
1. Installation Service:
Our company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.
2. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
