| Prod Model: |
LED Display P10-4S(high brightness) |
| Product Name: |
Outdoor LED Display P10-4s(DIP) |
| Driver IC: |
Mbi5124 |
| Bightness CD/Sqm: |
8000CD/M2 |
| Grey Scale: |
65536 Degree |
| Life Time: |
More 100,000 Hours (80%) |
| Mtbf: |
More 50,000 Hours |
| Operating Temperature: |
-30~-60t |
| Humidity: |
10%-95% |
| Color Temperature: |
6500-9500k |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
| Pixel Density: |
40000dots/M2 |
Product Description
High quality 8000CD/M2 outdoor led screen display
Product descripition:
| Product name | LED Display outdoor LED Screen P10-4S(high brightness) | Pixel Pitch(mm) | 10mm |
| Pixel configuration | 1R1G1B/ DIP 346 | Drive IC | MBI5124 |
| Screen Power Consumption | Max: 680w/m2; Average:220w/m2 | Module Resolution (W*H) | 16dots x 16dots |
| LED control system | LINSN,Nova-star,Color light is selectable | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km |
| Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |

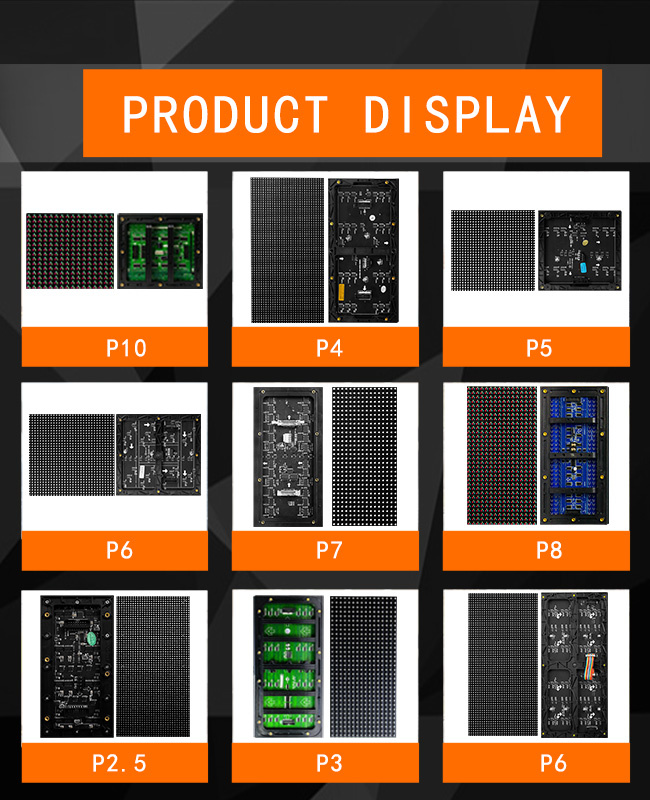

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
SHENZHEN HONGKINGLED OPTOELECTRONIC Co., Ltd, is one manufactuiers in SHENZHEN China, we product all kinds of full color indoor outdoor LED display, single color LED display, Di-color LED display,
SHENZHEN HONGKINGLED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 1000 worldwide installation projects In the pursuit of excellence, we succeeded in breaking numerous industry records. HONGKINGLED is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress.
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
