| Prod Model: |
P5-16S |
| Moduel Size: |
320mm × 160mm |
| Cabinet Size: |
640mm × 640mm |
| Moduel Resolution: |
64 × 32 |
| Cabinet Resolution: |
128× 128 |
| Brightness: |
2000 CD/M² |
| Grey Processing: |
14 Bit |
| Contrast: |
1000:1 |
| Frame Frequency: |
65 Hz |
| Refresh Rate: |
>3200 Hz |
| Working Voltage: |
AC 85-264V |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
5mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
40,000 dots / m² |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| System Operating Platform: |
Winxp,Winvista,Win789 |
Product Description
Production Specifications:

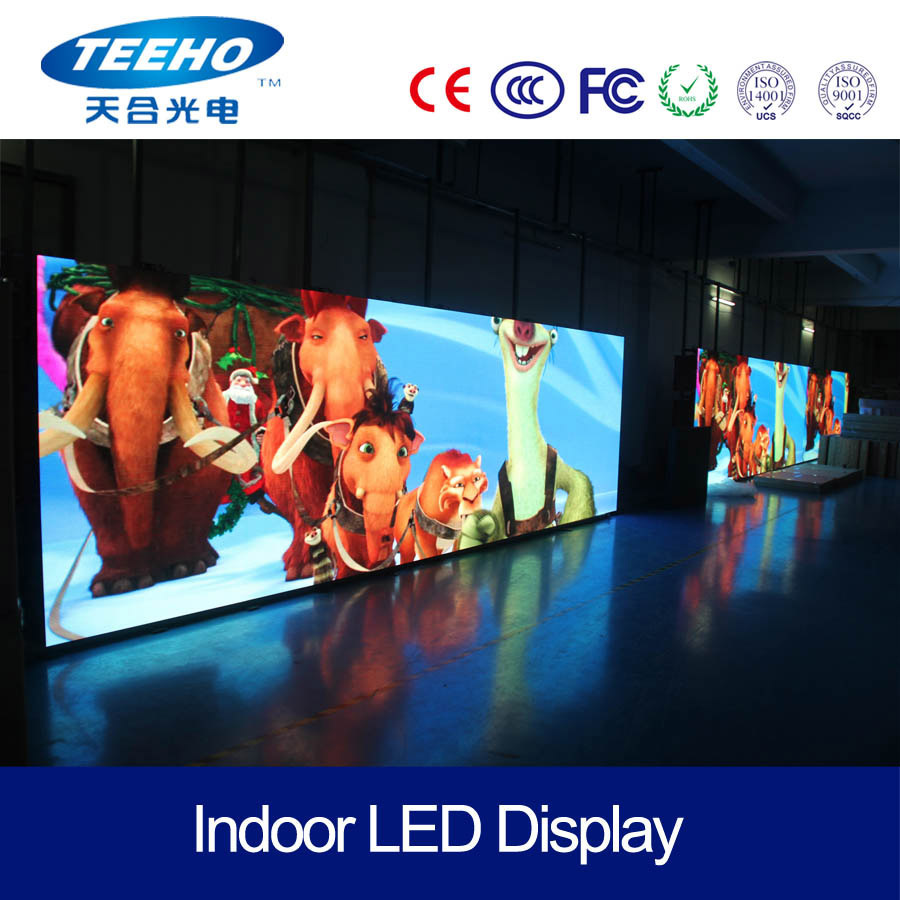

High Quality 5mm LED Display for Fixed
Production Benifits:
1. Wide application, including stage rental events, exhibition, wedding and so on.
2.Wide viewing angle, up to 120º(horizontally & vertically).
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Silent operation, little heat generated.
| Technical Parameters | Parameters Values |
| Pixel Pitch | 5mm |
| Density | 40000 pixel/m² |
| Pixel Configuration | R/G/B |
| Driving Method | 1/16Scan |
| Drving IC | MBI 5124 |
| LED Encapsulation | SMD 3528 |
| Moduel Size | 320mm × 160mm |
| Cabinet Size | 640mm × 640mm |
| Moduel Resolution | 64 × 32 |
| Cabinet Resolution | 128 × 128 |
| Display Resolution | 2048 Dots |
| Brightness | 2000 cd/m² |
| Moduel Port | HUB 75-B |
| Moduel Consumption | ≤ 19.5 W |
| Moduel Angle | 120 Degrees |
| Option Distance | 2.5-35 M |
| Maximun Power | 390 W/M² |
| Environment Temperature | -10-60 ºC |
| Environment Humidity | 10%-70% |
| Operating Temperature | Working:-20-65 ºC |
| Storage:-40-85 ºC |
| Life Span | 100,000 Hours |
| Mean Time Between Failures | >50000 hours |
| Remote Control | Can realize remote control and send alarm signal to operators in case of failure logging (Be customized) |
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (customized) |
| Operating System Platform | Windows NT,Windows2000,Windows XP,Windows7 |
| Protection | Waterproof, dustproof, high temperature prevention, anticorrosion, smoulderproof, anti-static, shockproof, lightning proof, smoke alarm and temperature alarm.(customized) |
| Descriptions | 1.This product is wide applied to advertising media, government projects
2.Designs of cabinet sizes are based on installation sites/screen sizes
3.The parameters above are actual tests. |
| Warranty | 24 months |
If you have any questions, you can send me a message, i will reply the message as soon as possible.
Attention please:
To provide the most proper productions for you, we would like to know more details before offering you the best quotation.
1. What is the size of the moduel and cabinet you want.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods (is it urgent or not.)
5. Any special requests such as video processor, hanging bar, flight case for package.
