High Quality 12000BTU Solar Air Conditioner
| Price: |
US $ 680-700/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
12000btu Solar Air Conditioner |
| Markets: |
Southeast Asia,Africa,Mid East |
| Function 1: |
Refrigeration |
| Function 2: |
Heating |
| Key Name: |
Solar Air Conditioners |
| Using: |
Da & AC Together |
| Certificate: |
CE, RoHS, CCC, UL, ISO, FCC, EMC, GS, Soncap,Pvoc, |
| Warranty: |
1 Year |
| Producing Date: |
20 Working Days |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
24-35dB |
| Certification: |
RoHS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Solar |
| Power Type: |
DC |
| Condition: |
New |
Product Description
1. Concept of Solar Air Conditioner.Solar air conditioning refers to any air conditioning (cooling) system that uses solar power.
2. Specification Of Solar Air Conditioner.| Model No | KFR-35GW/TLPD-N1 Wall Split Mounted Type Solar Air Conditioner |
| Rated V/Hz | 220V~ / 50Hz | power phase number | Single | climate type | T1 |
| Suitable V | 198V ~ 242V | mode of connection | single-phase three wire system
| IP | IPX4 |
| Project | Unit | Parameters | Note |
| Refrigeration | rated refrigerating | W | 3500 |
|
| rated input power | W | 964 |
|
| Rated Input Current | A | 4.4/6.9 |
|
| Max Input Power | W | 1309 |
|
| EER (Energy Efficiency) | W/W | 3.63/ L1 |
|
| dehumidification capacity | L/H | 1.5 |
|
| Circulating Air | m3/h | 620 |
|
| Indoor Fan Speed (Low/Middle/High) | r/min | 1000/1100/1250 |
|
| Outdoor Fan Speed (Low/Middle/High) | r/min | 860 |
|
| Heating | Rated heating capacity | W | 3850 |
|
| rated input power | W | 1094 |
|
| Rated Input Current | A | 5.0/11.8 |
|
| Max Input Power | W | 2250 |
|
| COP | W/W | 3.52 |
|
| Circulating Air | m3/h | 620 |
|
| Indoor Fan Speed (Low/Middle/High) | r/min | 1000/1100/1250 |
|
| Outdoor Fan Speed (Low/Middle/High) | r/min | 860 |
|
| Name of auxiliary electric heater | W | RGL/PTC//1000 |
|
3. Other Parameters of our Solar Air Conditioner.| Operating temperature range | ºC | -7~43 |
| The primary loop fusing electric current | A | -- |
Refrigerant code/injection rate
| kg | R22/1.07 |
| Indoor machine noise(Smallest/Biggest) | dB(A) | 25/42 |
| Outdoor machine noise(Smallest/Biggest) | dB(A) | 53 |
| Indoor Machine Weight | kg | 10 / 13 |
| Outdoor Machine Weight | kg | 49.1 /53.1 |
| Indoor Machine Size (W*H) | cm | 81.8×27×20.2 |
| Outdoor Machine Size (W*H*D) | cm | 90×64×30 |
| Indoor Machine Packing Size | cm | 91×38×29 |
| Outdoor Machine Packing Size | cm | 105×40×70 |
| Compressor Mark/Model/Type |
| -- |
| Connected Wire |
| -- |
| Joint Pipe(Big/Small) | -- | / PH210M2C-4FT3 / |
| Fitting Pipe | mm2
| 1.0×3+0.75×2 |
| throttle type | throttle valve |
|

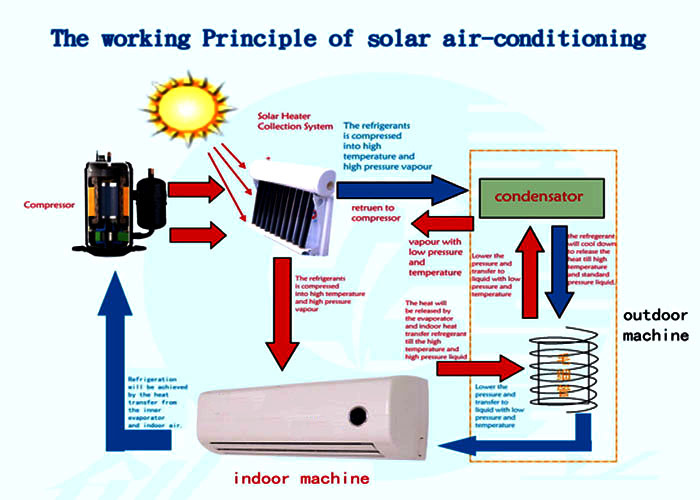

4. How Solar Air Conditioner Works.
The Solar Panel with high efficiency cell will collect and store the heat, the light & the radiant energy in the environment and provide the Compressor with the heat-carrying refrigerant and assist in the process of cooling and heating. Moreover, the energy absorbed in the day time can be stored in the heat absorbing device, ensuring the Air Conditioner to work normally all day. Other procedures would be done by the Compressor same as in Normal Air Conditioners. The function of the Solar Panel is heating the already conditioned air. The Compressor capacity is not reduced. The Solar Panel assists the Compressor to cool, resulting in the consumption of less energy.
