| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
5 Years |
| Capacity: |
100L-300L |
| Inner Tank: |
Sus304-2b Imported Food-Grade Stainless Steel |
| Collector: |
Vacuum Tube |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE |

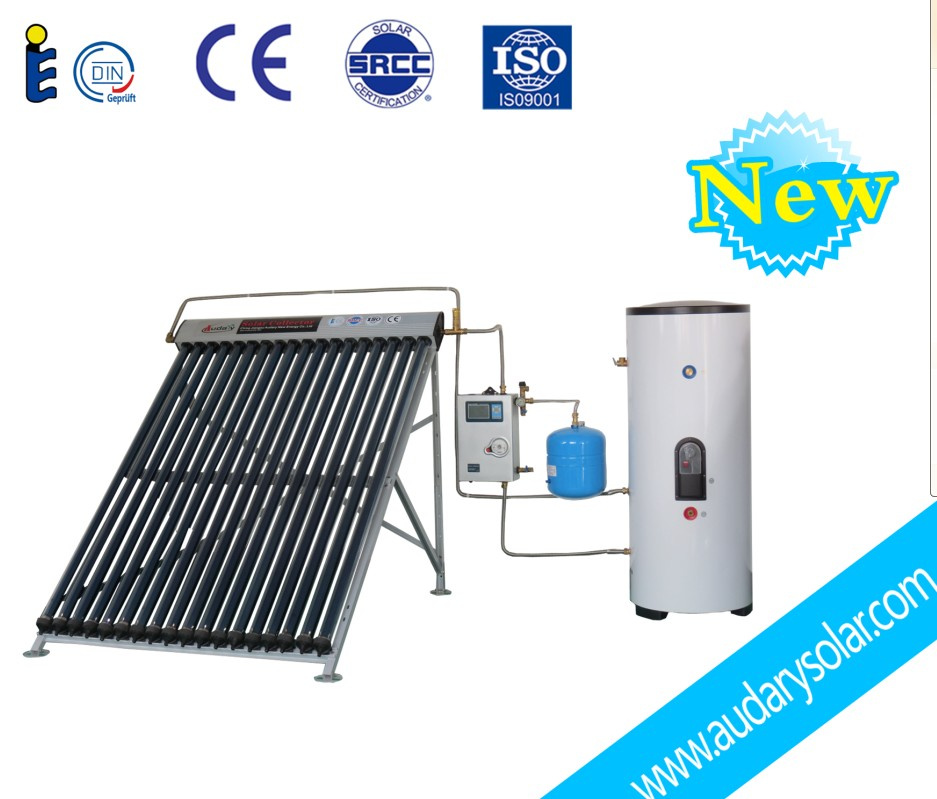

Product Description
1. Vacuum tubes:
* Hail proof: Hail resistance 20-30mm
* Guarantee on vacuum tubes: 3 years
* Vacuum tube size: ø 58X1800mm, ø 47X1500mm
* Thickness: 2.5-3mm
* Coating layers: Structure: A1-N/A1 or CU/SS-ALN(H)/SS- ALN(L)/ALN
* Grade: Normal/Three target
* Heat preservation: 72 hours
* Seal: Silicone rubber polymer
* Absorption rate: ≥ 0.95± 0.02
* Emission rate: ≤ 0.20± 0.02
* Vacuum tightness: P≤ 5.0*0.0001PA
* Idle sunning property paramerers: Y=220-260. /KW
* Avetage heat loss coefficient: Ult=0.6-0.7W(. )
* It means the temperature in the water tank is rang from 50 to 100 degree.
2. Tank:
* Inner tank, thickness: 0.40mm, material: SUS304-2B stainless steel/Color coated sheet/Mirror sheet/Galvanized sheet.
* Outer tank thickness: 0.40mm, color coated sheet
* Insulation layer: 55-65mm as you want. Computerized pressurizing and foaming of polyurethane.
3. Frame:
* Material: Galvanized sheet and electrostatic plastic-sprayed.
* Thickness: 1.2mm
* Paint wind resistant: ≤ 30m/s
* Guarantee on system: 5 years
* If you want to know more details, please send us mail, we will be glad to help, thanks!
|
Tank |
material of inner tank |
SUS 304-2B food-grade stainless steel, Φ 450mm |
|
material of outer tank |
color-coated galvanized steel, Φ 550mm |
|
thickness of inner tank |
1.5mm |
|
thickness of outer tank |
0.6mm |
|
upper coil |
Φ 12*1.0*12(optional) |
|
lower coil |
Φ 12*1.0*15 |
|
electrical heater power |
1.5kw |
|
Insulation layer |
50mm, polyurethane foaming |
|
liter |
200L |
|
Heat Collector |
Vacuum Tubeor Heat Pipe |
high-borosilicate glass, cooper heat pipe(Φ 8/14mm) |
|
size of vacuum tubes |
Φ 58x1800mmx20pcs |
|
Absorbsion Area |
1.6 m² |
|
Work Station |
Fasteners |
Stainless steel screws. |
|
Sealing ring |
Macromolecule silicone rubber. |
|
others |
P/T valve, electrical heater, magnesium rods, relief valve |
|
Specification |
Heat preservation |
72 hours |
|
Hail resistance |
20-30mm |
|
Max Water Temperature |
Can reach at least 95 degree |
|
Circulation |
Indirect /Closed loop (Active) |
|
Heating System |
Thermosyphon (Passive) |
|
Connection Type |
Direct-plug |
|
Absorption Rate |
≥ 0.95± 0.02 |
|
Emission Rate |
≤ 0.20± 0.02 |
|
Vacuum Tightness |
P≤ 5.0*0.0001Pa |
|
Idle sunny property parameres |
Y=220-260. /KW |
|
Total Weight |
161KGS |
|
Certifications |
Solar Keymark, SRCC, SGS, CE, ISO9001 |
|
Warranty |
5 years |
