| Prod Model: |
JJL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solar Water Heater Inner Tank: |
SUS304,SUS316,0.4mm,0.5mm,0.6mm |
| Solar Water Heater Outer Tank: |
Galvanized/Color Steel,Powder Coated,Stainless |
| Accessories For Opition: |
Assistant Tank,Magnesium Rod,Solar Controller |
| Product: |
High Pressure Heat Pipe Solar Collector |
| Tank Capacity Opition: |
100L,120L,150L,180L,200L,250L,300L,360L |
| Solar Stand/Bracket/Support Material: |
Galvanized/Powder Steel/Aluminium/SUS201/SUS304 |
| Application: |
Pressurized Solar Water Heater,Heat Pipe |
| Max. Capacity: |
>200L |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

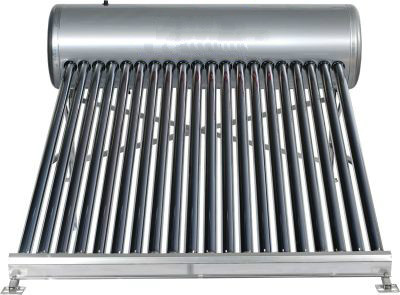

High Pressure Heat Pipe Solar Collector/Pressurized Solar Water Heater
We manufacturer of solar water heater more then 15years in China.Main products:non pressure solar water heater,high pressure solar water heater,prea-heated solar water heater,heat exchange solar water heater,heat pipe solar collector,non pressure solar collector,solar manifold,split solar water system etc. Advantages: 1. Highly Efficient absorber of high performance with daily average efficiency over 50%; 2. Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction; 3. Withstand pressure of 6bar, can be connected to city water; 4. No water in tubes, the system will still in service even some of tubes broken; 5. Easy installation; Anti-freezing; 15years life span. High Pressure Solar Water Heater Model: | Model | Tube QTY | Tube Size | 20'GP | 40'GP | 40'HQ |
| JCN-PC100L | 10 | 58×1800MM | 66 | 138 | 174 |
| JCN-PC120L | 12 | 58×1800MM | 55 | 114 | 144 |
| JCN-PC150L | 15 | 58×1800MM | 44 | 91 | 115 |
| JCN-PC180L | 18 | 58×1800MM | 37 | 78 | 98 |
| JCN-PC200L | 20 | 58×1800MM | 35 | 72 | 91 |
| JCN-PC240L | 24 | 58×1800MM | 29 | 60 | 76 |
| JCN-PC300L | 30 | 58×1800MM | 23 | 49 | 62 |
| JCN-PC360L | 36 | 58×1800MM | 20 | 41 | 52 |
Technical data:Inner tank:SUS 304-2B/1.5mm,380mmOuter tank:Galvanized steel/0.41mm,480mmInsulation Layer:high density polyurethane foam 50mmVacuum tube:58*1800mm/SS-CU-AIN/ALN or AL-N-AL coatingBracket:Galvanized steel 1.5mm with 27/38/45 degree installing angle.
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
