| Prod Model: |
HNB-1GA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-1o to +40 |
| Size(W*H*D): |
36mm×75mm×106mm |
| Weight: |
0.1kg |
| Color: |
White |
Product Description
Product Description

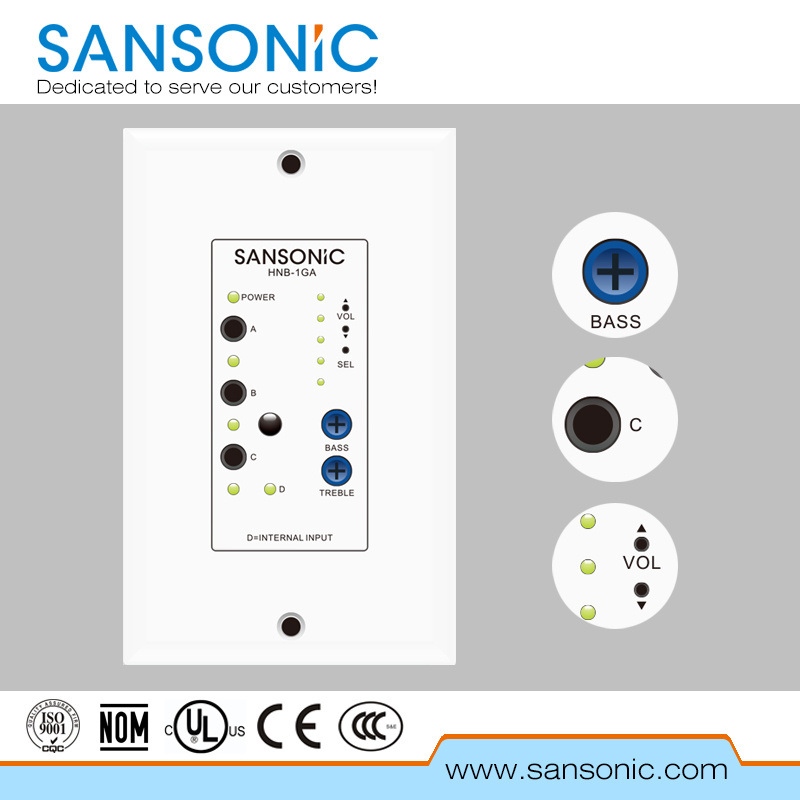

The Sansonic HNB-1GA digital mixer amplifier is a powerful stand alone audio-only communication system that installs into a standard 1-gang electrical box. It is easy to install, easy to use and is ideal for most small room applications with one to four speakers. Full fidelity output of 25 watts per channel makes it suitable for use in AV and Audio-only room/suite applications in Education, Healthcare, Corporate, Retail, Church, Government, Entertainment and Sporting facilities.
Applications:
1.Multimedia environments: AV projector, labtops, VCR DVD, iPod and MP3 device.
2.Audio-only installation : in local or remote areas including K-U classrom, Stadium skybox, retail stores, theater backstages
3.Emergency communication: emergency PA, EVAC, hospital Code Red & Blue, and Security system.
4.HNB-1GA is easily upgraded to wireless soundfieled amplification : includs a CAT5e(RJ45) , with capabilitiesbto support Teacher, Student, ADA assisted listening, 2nd language translation in classroom of all kinds.
Features:
1.Reduces labor& material cost
2.Saves space and power
3.Innovative
4.Compatible to all manufacturers
5.Full audio fidelity
6.Reliability, over-curren and over-temperaure protection
7.Quite operation
8.Powerful and compact 50W digital Mono/Stereo peak output capable of driving up 4 speakers
9.Simple to use
10.Simplifies integration
11.Affordable: small 1-gang system is cost effective to purchase to install
Specification:
Type Architecture:
2 Channel Mixer Amplifier Digital Class D
Speaker Outputs
4ohm (optimum) or 8ohm
Mains Input Power:
100-240VAC, 50-60Hz
Output Regulation
Less than 2dB, no load to full load at 1 kHz
Automatic 'Duck' manual adjust 1 to -50dB for Mic input
Input Power (to HNB™):
24VDC in-line regulated switching power supply,
2.5A, FCC, UL, CUL, CE listed (provided)
Internal Controls
(1) 'Duck' level - screwdriver adjust
Output Power
25W peak 4ohm per channel
12W RMS continuous 4ohm per channel
Front Controls
Volume gain (+/-) soft push buttons
Frequency Response
20Hz - 20KHz ( ± 1.5dB )
Power Efficiency
<80% at 25W @ 4ohm, <85% @ 8ohm
<90% at 10W @ 4ohm, <95% @ 8ohm
THD + N (Mono-Ea. Ch.)
≤ 1.0% at 1 kHz rated output
≤ 0.1% at 1 kHz at 10W 4ohm
Power Consumption
32W / 9.5 btu @ 120VAC
Signal to Noise Ratio
90dB A-weighted (band pass 20Hz-20kHz)
Operating Temperature
-14 to 104F
Channel separation
60dB
Storage Temperature
-4 to 149F
Dynamic range
100dB
Input Connections
(1) RCA, (1) 3.5mm front audio input (external)
(1) 3-pin audio-in connector (internal)
(1) 2-pin 'override' connector (internal)
(1) RJ45 input / output wireless microphone (internal)
Input Sensitivity &Impedance
Program: 0.775V, 10kohm electronically balanced,with RF filter (ferrite)
