| Prod Model: |
JX-F-0027 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Can Be Customized |
| Material Selection: |
Stainless Steel, Carbon Steel |
| Filter Bag Number: |
1-24 |
| Filtering Area: |
0.25-12m2 |
| Usage: |
Chemical Industry |
| Motive Force: |
Electric power |
| Certification: |
CE |
| Type: |
Filter |
| Style: |
Bag |
Product Description
Why chose JX Filtration
------Professional manufacture of filter and filter element since 2004!
------Superior quality products with reasonable price!
------Best pre-sale and after-sale service!
Description

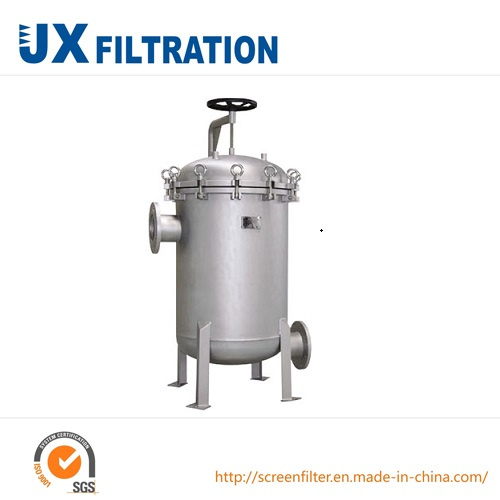

Bag type filter
Bag type filter belongs to pressure filtration equipment which consist of filter cylinder, filtering cylinder head, quick opening mechanism, strengthened net and etc. Liquid flows into the filter bag which is installed inside the strengthened net through the side inlet tube, then the liquid permeates the filter bag to obtain qualified liquid and the impurities are trapped by the filter bag.
Advantage
1. Low side leakage rate which ensures the filtration quality.
2. Higher working pressure endurance, low pressure loss, low operation cost.
3. Filtration precision can reach 0.5μm.
4. High treatment capacity, high filth allowance
5. Easy to change filter bag
Application
Widely used in paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, plating solution, milk, mineral water, hot solvent, emulsion, industrial water, sugar, water, resin, printing ink, industrial waste water, fruit juice, edible oil, waxes, and other fields of precision filtration.
Technical parameter
| Model | Filter bag
number | Filtering
area (m2) | Diameter of inlet and outlet
(mm) | Working pressure
(Mpa) | Max. flow capacity
m2/h |
| JXB-1P1S | 1 | 0.25 | φ50 | 0.5 | 20 |
| JXB-1P2S | 1 | 0.5 | φ50 | 0.5 | 40 |
| JXB-2P2S | 2 | 1.0 | φ50 | 0.5 | 70 |
| JXB-3P2S | 3 | 1.5 | φ50 | 0.5 | 100 |
| JXB-4P2S | 4 | 2.0 | φ100 | 0.5 | 140 |
| JXB-5P2S | 5 | 2.5 | φ150 | 0.5 | 175 |
| JXB-6P2S | 6 | 3.0 | φ200 | 0.5 | 210 |
| JXB-7P2S | 7 | 3.5 | φ200 | 0.5 | 245 |
| JXB-8P2S | 8 | 4.0 | φ250 | 0.5 | 280 |
| JXB-10P2S | 10 | 5.0 | φ250 | 0.5 | 350 |
| JXB-12P2S | 12 | 6.0 | φ300 | 0.5 | 420 |
| JXB-14P2S | 14 | 7.0 | φ300 | 0.5 | 490 |
| JXB-16P2S | 16 | 8.0 | φ300 | 0.5 | 560 |
| JXB-18P2S | 18 | 9.0 | φ350 | 0.5 | 630 |
| JXB-20P2S | 20 | 10.0 | φ350 | 0.5 | 700 |
| JXB-22P2S | 22 | 11.0 | φ350 | 0.5 | 770 |
| JXB-24P2S | 24 | 12.0 | φ350 | 0.5 | 840 |
Packaging & Shipping
Packaging
1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us.
Shipping
JX Filtration offer any delivery method for different quantity.
