| Prod Model: |
ADL6018 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |
Product Description

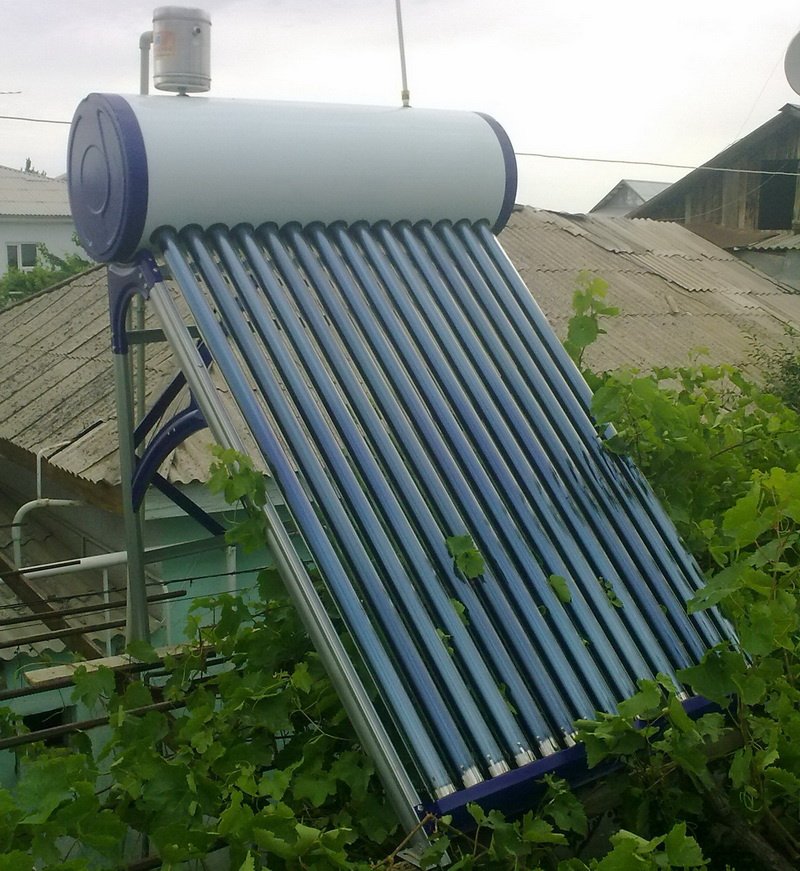

Description of solar water heater
Vacuum tubes:
Material: High borosilicate 3.3 glass
External pipe diameter and thickness: Φ=58mm, 1.6mm
Internal pipe diameter and thickness: Φ=47mm, 1.6mm
Absorbing coating: Al-N/Al, Al-N/SS/CU
Freezing resistance: -35° C
Hail resistance: 25mm/
Lifetime: 15 years
Water tank:
1. Inner tank material: Stainless steel SUS304-2B, 0.4mm thickness
2. Outer tank material: Color steel, 0.4mm thickness
3. Insulation layer: Polyurethane foaming, 50mm thickness
4. Inner tank diameter: 360mm
5. Outer tank diameter: 460mm
6. Heat preservation: 72 hours
Frame:
1. Material: Galvanized sheet and electrostatic plastic-sprayed, Thickness: 1.5mm
2. If stainless steel, thickness is 1.2mm
3. Angle of frame: 27° , 30° , 38° , 45°
CE, ISO9001: 2000, SOLAR KEYMARK, SRCC certification
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
