| Prod Model: |
CNF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Filter Media: |
PP/PTFE/Nylon/Pes/Mce/Glass Fiber |
| Support &Housing: |
PP |
| Sealing Technology: |
Thermal Bonding(No Adhesives) |
| Diameter: |
67mm |
| Length: |
2.5-Inch, 5-Inch, 10-Inch |
| Inlet/Outlet: |
1/4"NPT |
| Vent/Drainage: |
1/8"NPT |
| Filtration Area,Sq Ft: |
2.5-Inch≥1.1 5-Inch≥2.2 10-Inch≥4.4 |
| Pore Size,Micro: |
0.01(for Air), 0.1, 0.22, 0.45, 1.0 3.0, 5.0 |
| Maximum Differential Pressure: |
Forward: 3.5 Bar @23 Degree Centigrade |
| Type: |
Distiller |
| Usage: |
Food and Beverage |
| Motive Force: |
Pressure |
| Style: |
Capsule |
| Certification: |
SGS, ISO |
Product Description

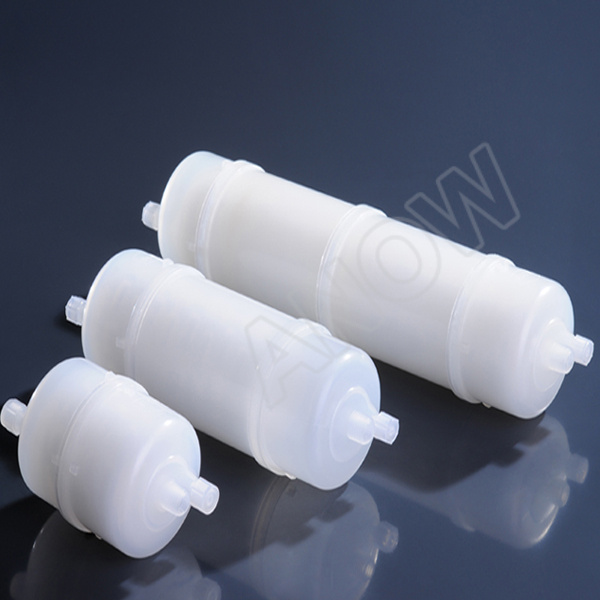

High Efficient 1/4" NPT One-off Capsule Filter For Liquid Filtration
1. Eco-friendly and cost-effective
2. Smart, disposable and safe
3. Low hold-up volume
Quality
1. Filters produced in a controlled environment
2. Manufactured according to ISO9001 certified Quality Management System
Application
1. Filtration for beverage, wine and beer
2. Water filter for purification
3. Air filter in processing
Specification
| Materials of Construction |
| Filter Media | PP/PTFE/Nylon/PES/MCE/Glass Fiber |
| Support and drainge | PP |
| Sealing technology | Thermal Bonding, No Adhesives |
| Dimensions |
| Diameter | Φ 67 |
| Length(in) | 5-inch,5-inch,10-inch |
| Inlet/outlet | 1/4"NPT |
| vent/drainage | 1/8"NPT |
| Filtration Area |
| 2.5-inch≥1.1 5-inch≥2.2 10-inch≥4.4 |
| Pore Size, μm |
| 0.01(for air),0.1,0.22,0.45,1.0,3.0,5.0 |
| Maximum Forward Differential Pressure |
forward:
3.5 bar @23ºC(50.7psi,73.4F)and 3.0 bar @60ºC(43.5psi,140F)for liquid
3.0 bar @23ºC(50.7psi,73.4F)and 2.5 bar @60ºC(36.2psi,140F)for gas&air |
| Sanitization |
| 3 autoclave cycles of 30 minutes at 123 ºC(253.4F). sterilization is not recommended |
Hangzhou Anow Microfiltration Co., Ltd. is a well-known filtration company in Asia who focus on N66, N6, MCE, PES, PVDF, PTFE membrane development, with pore size ranging from 0.03 μ M to 10 μ M, and design and production of various pleated filter cartridges and capsule filters. ANOW provides professional assistance to liquid and gas & air filtration, separation and purification solutions for customers around the word in biopharmaceutical, medical, food & beverage, microelectronic, chemistry, water treatment and laboratory applications.
ANOW is a state-class high-tech enterprise, who has successfully gotten the certificates of ISO9001 and ISO13485, and obtained the SFDA authorized production certificate of the 3rd medical plastic products, among which disposable microporous membrane and filters for medial use have been honored the registration certificate of medical devices by SFDA. Besides, we have been also honored as Direct Unit of the Membrane Industry Association of China and Direct Company of medical plastic product branch association of CAMDI.
Our plant located in Xindeng Industrial Zone, Fuyang, Hangzhou, covers a production workshop area of 6000 m² , with 3000 m² Area meeting the GMP requirements for manufacturing of medical devices, 100000-class 600 m² Cleaning room and 2400 m² Cleaning room. We have more than twenty lines for the production of microporous membranes and pleated filter cartridges, advanced inspection tools and equipments, as well as professional R&D Centre and Validation Centre. In addition, we have adequate and recognized technical experts such as Professor Meile Gong, for developing new products and providing technical service, which can satisfy our customers both in quantity and quality.
ANOW has been making great efforts to improve the quality management system during the process of obtaining the certificates of production and registration. We particularly attach great importance to R&D to make consistent progress in order to provide customers with excellent products and services.
Our massion is "make\ing the filtration better".
