| Prod Model: |
DPT10C-11A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110V/220V |
| Frequency: |
50Hz/ 60Hz |
| Air Volume: |
282CMH 166cfm |
| Power: |
69W |
| Ball Bearing: |
NSK Ball Bearing |
| Research & Development: |
OEM, ODM |
| Protection Grade: |
IP44 |
| After-Sales Service Provided: |
3 Year Guarantee Repair for Motor |
| Performance: |
Stable Structure, Better Fire Prevention |
| Insulation Grade: |
Insulation Class F |
| Electric Current Type: |
AC |
| Mounting: |
Ceiling Fan |
| Certification: |
CCC |
| Material: |
Galvanized Sheet Steel |
| Blade Material: |
Galvanized Sheet Steel |
Product Description
Duct Diameter: 100mm, 150mm, 200mm.
Duct Diameter: 4 inch, 6 inch, 8 inch.

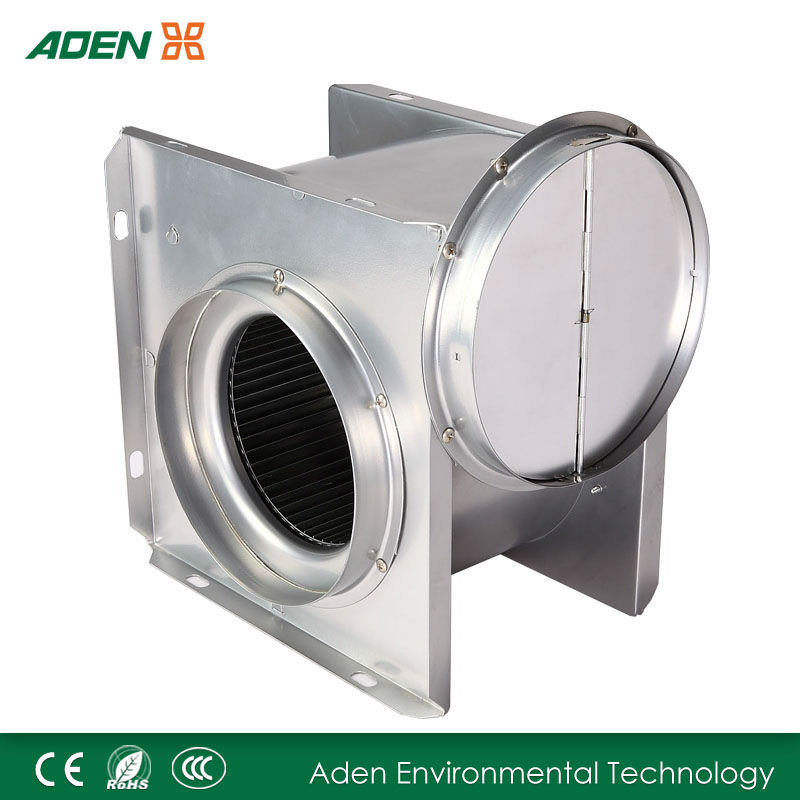

Model: DPT10C-11A (100mm/ 4 inch)
Voltage: 110V/ 220V
Frequency: 50Hz/ 60Hz
Airflow:165CMH 97CFM
Static Pressure: 68Pa
Power: 20W
Speed: 1295 rpm
Noise: 36dB
Weight: 2.5kg
Our advantage:
1.Low MOQ
2.Guaratee for motor
3.Excellent quality
4.Certification: CCC, CE, RoHS
5.We can develop new models based on your budget and specifcation
6.Powerful design according to customer's idea
Features:
1.100% pure copper motor consistent running for 5000hr without failure;
2.Special return air prevention device can prevent backflow of outdoor harmful gases and odor;
3.Optimized multi-blade all metal centrifugal impeller;
4.Unibody mold with full metal spraying casing;
5.Flexible installation methods;
6.Easy disassembly motor and impeller design facilitates maintenance and cleaning;
7.Japan NSK ball bearing to ensure motor running more smoothly and silent;
8.Professional air duct design can realize more silent effect and superior performance of the product;
9.Normal operation at super-wide ambient temperature from -20ºC to 50ºC
10.Can start up at 100V ultra-low voltage;
11.Enclosure class IP44;
12.Insulation class E.
Performance Parameter:
Model
Voltage
(V)
Frequency
(Hz)
Airflow
CMH CFM
Static
Pressure
(Pa)
Power
(W)
Current
(A)
Speed
(r.p.m)
Noise
(dB)
Weight
(Kg)
DPT10C-11A
220
50
165 97
68
20
0.09
1295
36
2.5
DPT15C-33A
220
50
320 188
129
35
0.15
1180
41
3.5
DPT15C-34A
220
50
490 289
143
58
0.29
1232
45
4.5
DPT15C-44A
220
50
550 324
169
70
0.30
1275
45
4.5
DPT20C-45A
220
50
630 371
168
116
0.56
998
46
8.5
DPT20C-54A
220
50
735 433
185
112
0.58
1070
47
8.7
DPT20C-55A
220
50
800 471
203
129
0.59
1190
47
8.7
DPT20C-55B
220
50
950 559
208
134
0.61
1236
48
8.9
DPT20C-65A
220
50
1220 718
220
228
1.15
1220
53
9.6
DPT20C-65B
220
50
1500 883
236
255
1.22
1295
57
9.8
Product Details:
Application:
Company Profile:
Zhongshan Aden Environmental Technology Co., Ltd. is a technology-based firm focusing on ventilation and air purification area integrated with product R&D, manufacturing and sales. The company has passed a series of certifications such as ISO9001:2008, 3C, CE, RoHS. Our main products include: ventilation exchanger, pipeline blower, silent fan, air curtain, air purifier and so on. The company has modern standard workshops, advanced production equipment and product research laboratory satisfying the production.
We provide customers with innovative, attractive, convenient products and services relying on years of in-depth research and technology accumulation in ventilation and air purification field. We are devoted to dig up the potency of every employee in the company, and integrate staff's individual pursuit to long-term development of the company, setting consistency of company development and individual happiness as the objective. We expect the common prosperity of the company and our customers. Customer focus, staff welfare and feedback to the society are responsibilities of our company.
We make contributions to improve air quality of the world relying on sincerity and unique technology, adhering to technological innovation, management innovation, organizational innovation and service innovation to satisfy customer demands and market changes. We have become a preferred suppliers with customer trusts. We are strive to become a high-end and world famous professional manufacturer in ventilation and air purification field.
FAQ:
Q:What is your MOQ?
A:MOQ bases on different models,and you will see detailed MOQ in our quotation.Or you can contact us for quickly answer by Alibaba TradeManager or telephone.
Q:How can I get a sample to check your quality.
A:After the price is confirmed,you can ask for samples to check our quality.
If you ask for samples,we will collect sample fees(Some model is free).But the sample charges will be refund to you upon receipt your order later.
Q:Can you do the design for us?
A:Yes,your design is also welcome.Please send your design idea or drawing to us,and we customize it for you.
Q:What is your delivery time?
A:Retail delivery:in 7 days
Sample delivery:in 15 days
Whole sale delivery:30-40 days
Project delivery:35-50 days
Kindly keep enough time for your receive goods in time.
Q:How will you arrange the shipment?
A:For small sample,we send by DHL/Fedex/UPS/TNT express,and mass production will ship by sea.Sometimes,if you have cargo to go from other chinese factory,we also can help you arrange consolidation shipment.
