| Prod Model: |
ZJA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Oil-Water Separator |
| Performance: |
Efficient Filtration |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Suction Filter |
| Flow: |
1800L/H - 30000L/H |
| Medium: |
Transformer Oil |
| Function: |
Dehydration and Gas Removal |
| Construction: |
Frame and Open |
| Stage: |
Double Stage |
| Application: |
Transformer Oil Purifying |
Product Description
Use:

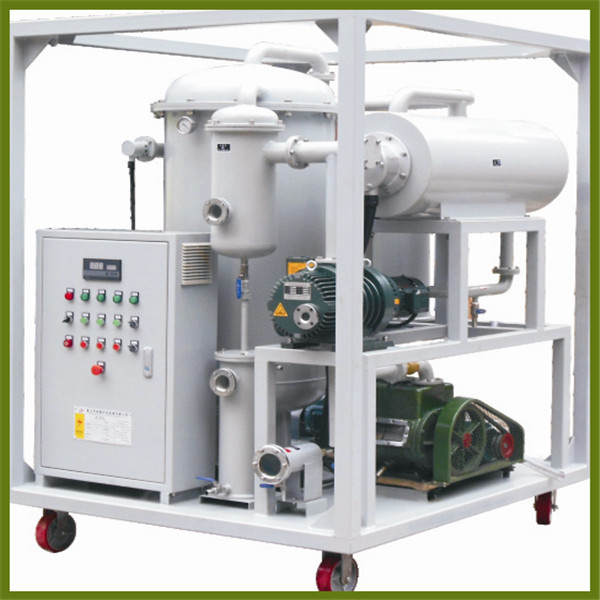

ZJA Two-Stage Vacuum Transformer Oil Purification Machine is widely used in electric power, transforming electricity industry, metallurgy, traffic, railway and others. It is designed for the vacuum filter of expensive oil such as fresh oil, imported oil, instrument transformer oil, extra-high tension transformer oil (cover110v, major transformer), and for vacuum oiling, and drying of transformers. The oil purifier can work on line.
Feature:
Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.
1: It can be widely used for oil filling for transformers and circuit breakers under vacuum condition.
2: Precise filtration system, high-quality filter element, multi-stage filtration with gradual precision can help to remove mechanical impurities in the oil.
3: An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent equipment can ensure operation of the equipment with high performance.
4: Online work, allowing separated operation of manual operators from machine with lamps indicating the condition for operation.
Optional mode:
1: The customer's request can be met by adopting PLC intelligent and displaying dynamically.
2: The whole set of this machine can be made mobile, immovable and car-carried.
3: All types of filter can be offered hermetical, canopy-covering or open-air.
4: Various sizes and configuration (alloy shield) are available.
|
Item |
ParamName |
Unit |
ZJA-30 |
ZJA-50 |
ZJA-100 |
ZJA-150 |
ZJA-200 |
ZJA-300 |
ZJA-500 |
Technical
Parameter |
Flow |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
30000 |
|
Operating Vacuum Degree |
MPa |
-0.08 _ -0.099 |
|
Working Pressure |
MPa |
≤0.5 |
|
Temperature Range |
ºC |
20 _ 80 |
|
Power Supply |
V |
380V/50Hz(or at user's option) |
|
Working Noise |
dB(A) |
≤78 |
|
Heating Power |
Kw |
30 |
45 |
60 |
90 |
135 |
180 |
216 |
|
Total Power |
Kw |
35 |
50 |
66 |
96 |
142 |
191 |
230 |
|
Pipeline Diameter |
mm |
25 |
32 |
40 |
50 |
50 |
65 |
80 |
|
Net Weight |
Kg |
600 |
800 |
1000 |
1300 |
1800 |
2100 |
2400 |
|
Overall Dimensions |
Length |
mm |
1200 |
1250 |
1450 |
1600 |
1600 |
1800 |
1900 |
|
Width |
mm |
1200 |
1250 |
1400 |
1600 |
1600 |
1700 |
1900 |
|
Height |
mm |
1700 |
1750 |
1800 |
2150 |
2150 |
2250 |
2300 |
Index for
Oil Treatment |
Breakdown Voltage |
KV |
≥70(GB/T507) |
|
Water Content |
PPM |
≤3(GB/T7600) |
|
Gas Content |
% |
≤0.05(GB/T423) |
|
Filtration Precision |
µm |
≤3 |
Chongqing Lushun Scientific and Technological Development Co., Ltd., is a high-tech enterprise for researching, designing, developing, and producing vacuum oil purifier. With its continuous drawing of lessons, unremitting innovation and borrowing of advance technology from both at home and abroad, Lushun oil purifier company is now becoming a professional manufacturer of oil-filters which are excellent in quality, capable of standing wear, complete in various styles. And its products are widely applied to various sectors such as electric power, petroleum, chemical, metallurgy, mine, mechanical, aviation, ship, railway, pharmacy and edible oil processing.
Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to secure the high quality of our products, we conduct our manufacturing in strict accordance with the standard JB/T5285-2001 by Ministry of Machine Building, standard DL/T521-93 by Ministry of Power Industry.
With strong technology development, advanced products mass-production, perfect quality control, smart market design, and excellent after-sale service, Lushun Oil Purifier Company has formed a rigorous management system. And every link is in its production process: Purchasing of components, packing, storage is in strict compliance with standard of ISO9001: 2000. To secure the high quality of our products, every oil-filter is checked and put into trial-running. It follows the domestically-pursued principle "the requirement of the next working procedure imposes a command for the early working procedure" that secures the good quality of its products in the working process.
