| Prod Model: |
HR3-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
PLC |
| Layout: |
Horizontal |
| Filtering Frequency: |
Single Filtered |
| Shape: |
Simple Bracket Type |
| Feature: |
Handle Control |
| Automation: |
Automatic |
| Customized: |
Customized |
| Condition: |
New |
| Filter Type: |
Cartridge Filter |

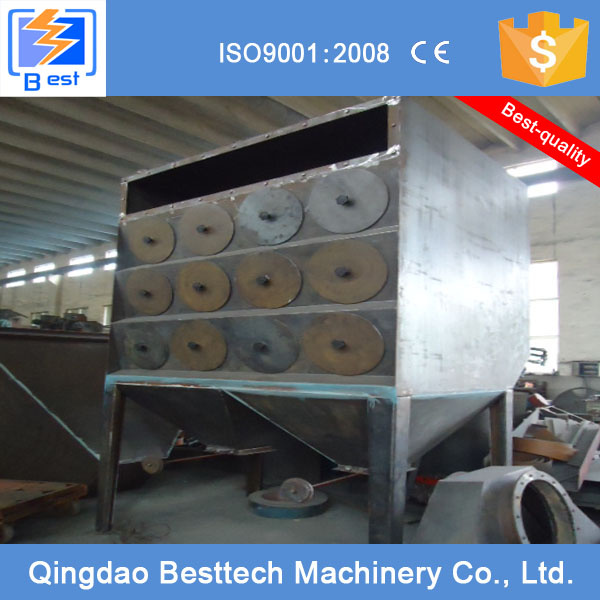

Product Description
Working Principle
After Containing dust gas entered Duster ash bucket , due to airflow section suddenly expanded and the airflow distribution Board role,air flow in the part of gross settlement of particles under the action of moving and inertia in the hopper;Fine granularity and density of small dust particles into the dust filtering chamber, spread by brown and sieve filter combined effect, make the dust deposition on the surface of the filter material, after purification, the air chamber by the exhaust gas into the net by the fan discharge.
Resistance of filter cartridge filter with filter surface dust layer thickness increases. Cleaning the resistance when it reaches a specified..At this time of PLC program control pulse valve opening and closing,first a points room upgrade valve closed, will filter airflow truncated, then electromagnetic pulse valve opened,compressed air and a short time the case on the rapid expansion, the influx of cartridge, cartridge expansion deformation produces vibration, and under the action of reverse flow scouring, attached to the filter bag dust on the surface of the appearance, stripped fell into the hopper.Ash removal to end, electromagnetic pulse valve closed, lift valve opens, the chamber filter state has been resumed.Soot cleaning the room, in turn, from the first chamber ash removal to the next soot cleaning for a soot cleaning cycle.Fall off the dust off valve to discharge into the hopper by handing ashes.
In this process must be to replace the cartridge and cleaned on a regular basis, to ensure that filtering effectiveness and accuracy, because dust in the filter process in addition to blocked and some will be deposited on the surface of the filter media, increasing resistance, it is generally the correct replacement time is 3-5 months!
Main Feature
1. By use of impulse technology, the dust collector has a strong ability of cleaning dust, high efficiency, and is with low leakage rate, less energy consumption. The equipment works stably, and wins good economic returns, which is applied for cleaning dust in several industries, such as metallurgy, building materials, machine, chemistry, electricity, light industries and so on.
2. The box is designed in a good seal. Excellent seal materials are used in making the inspected door, with low leakage.
3. At the opening of outlet is with compact layout and low resistance.
4. Adopt blowing pulse cleaning dust so as to make the cycle extended and the energy reduced. It can improve twice service life of filtering bags and valves.
5. Change the filtering bags without stopping th machine and overhaul has no effect on operating the equipments.
6. By putting bags on the upper part, checking level is improved.
Specification
Type | Tube Qty | Filtering area(m²) | Wind capacity treatment(m³/h) | Weight(kg) |
| HR3-12 | 12 | 180 | 4500-9000 | 970 |
| HR4-16 | 16 | 240 | 6000-12000 | 1060 |
| HR3-24 | 24 | 360 | 9000-18000 | 1683 |
| HR4-32 | 32 | 480 | 12000-24000 | 1980 |
| HR4-48 | 48 | 720 | 18000-36000 | 2762 |
| HR4-64 | 64 | 960 | 24000-48000 | 3238 |
| HR4-80 | 80 | 1200 | 30000-60000 | 3745 |
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you want to purchase dust collector, Please indicate the following details
1) Filter used for what industry.
2) How much is the filtering area and air volume.
3) You'd better give us your workshop layout diagram.
After getting your answer, our engineer will provide a reasonable solution for you, you can refer it.
