| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifespan: |
100,000 Hours |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10000 dots/m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Brightness: |
7000 cd / m² |
| Certification: |
CCC |
| System Operating Platform: |
Winxp Win98,Win7 |
Product Description
Specifications

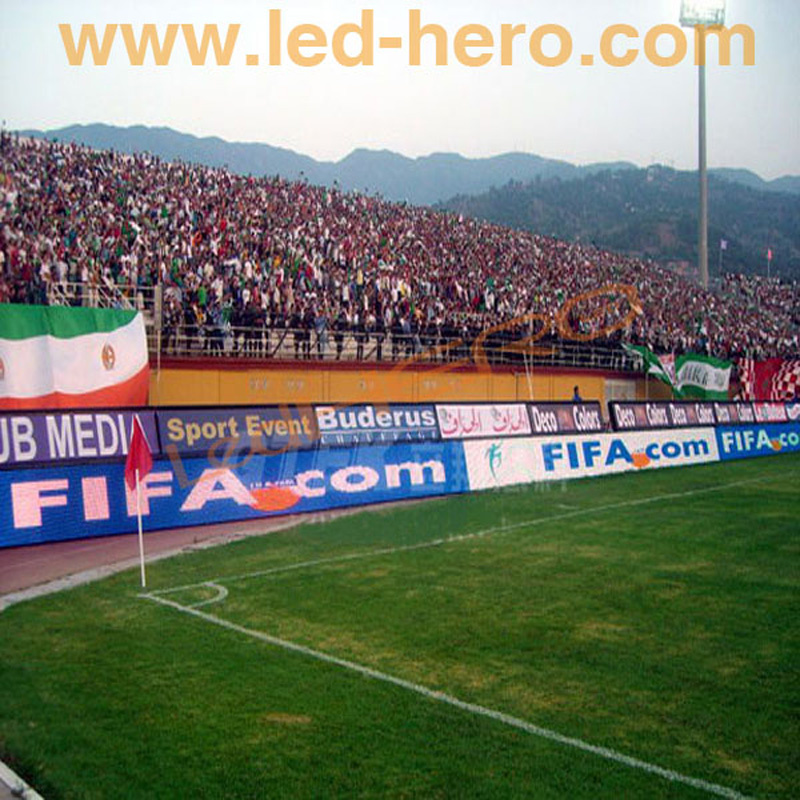

football pitch led display
1long life span
2 high resolution and brightness
3 Real Epistar led lamp
4 easy installation
No.LED constitutionTypes
1DIP346Epistar
Module Specifications
1Pixel Pitch16mm
2Drive modeconstant current
3Module Resolution16dots × 16dots
4Module Pixles256 dots
5Module Size160mm × 160mm
Cabinet Specification
1Brightness:≥8500cd/m2Driving Method:1/4scan
3View Angle:Horizontal 120° Vertical 70°
4Min. Viewing Distance:≥7 meter
5Gray scale:8192×8192×8192
6Colors:549 Billion
7Refresh rate:≥2000Hz
8Input Voltage:AC220V/50Hz or AC110V/60Hz
9Power Consumption :(Max. / Ave.)900/250 W/m2
10Screen weight:65kg/m2
11MTBF:>10,000 hours
12Life spanL≥100,000 hours
13IP rating:(Front/Rear)IP65
14Temperature-operating:-10°C~45°C
15Humidity-operating:10%~90%
16Controlling systemColor:light or Linsn
17Source compatibility:(with video processor)AV,DVI,HDMI,SDI,S Videom,DPetc.
Please check out our official website: www.led-hero.com
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
