| Prod Model: |
TZ5.14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Guarentee: |
2 Years |
| Refresh Rate: |
600Hz |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| Display Function: |
Video Display |
| Tube Chip Color: |
Full Color |
| System Operating Platform: |
WIN XP |
| Certification: |
RoHS |
| Application: |

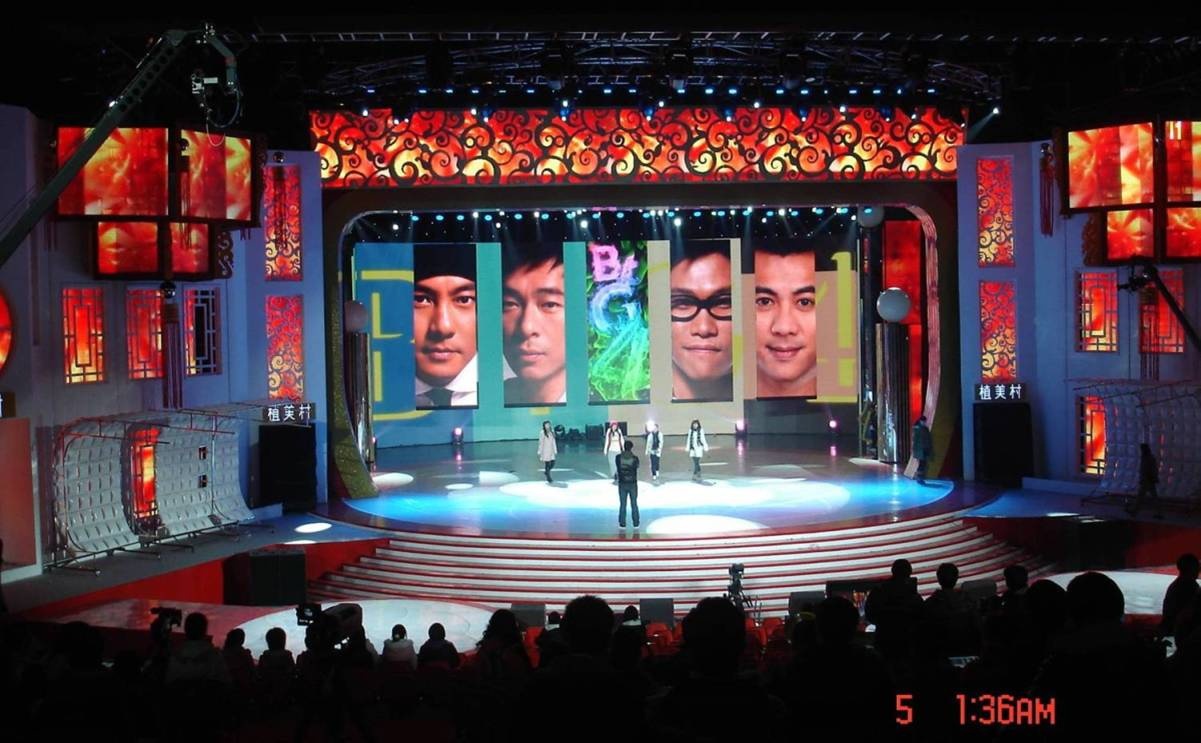

Stage Performance |
| Pixel Pitch: |
5.14mm |
| Pixel Density: |
37,850 Pixel/M2 |
| IP Rating: |
IP31 |
Product Description
TZ5.14
The premium 5.14mm die casting LED display system for indoor use.
Fast & seamless assembly, superb image quality, wide viewing angles and unrivalled reliability.
Features:
1. Fast assembly design, save your time in the assembly.
2. Anti-deformation die casting aluminum cabinet, Beautiful appearance
3. The cabinet thickness is less than 115mm, the cabinet weight is only11.5kgds/tile.
4. Unique fast lock system on the cabinet assembly and door opening
5. Adopt the DC cooling fans, less noise for indoor use.
6. Adopt the newly geometric design on the face cover deep black, high contrast
7. Wide viewing angles, the images visible in more than 160 degree viewing angles.
8. Neutrik connectors are adopted, fast assembly, durable.
9. Support hanging and stacking, suitable for both fixed install and rental activities.
|
Model Number |
TZ5.14 |
|
Description |
Die casting aluminum cabinets with hanging function |
|
Application |
Indoor use, advertising or rental use |
|
Pixel configuration |
1R1G1B SMD 3-in-1 3528 style LED |
|
Pixel pitch |
5.14mm |
|
Pixel resolution per standard cabinet |
112 x 112 pixel |
|
Standard cabinet dimension |
576 x 576 x 115 mm |
|
Module size |
288 x 288 mm |
|
Pixel resolution per module |
56 x 56 pixel |
|
Pixel density per m2 |
37, 850 pixel/m2 |
|
Minimum viewing distance |
5 m |
|
Brightness |
2, 000 CD/ m2 |
|
Grey scale |
4096 steps |
|
Color Number |
68.7194billion |
|
Display Mode |
Synchronous with video source |
|
Data refresh rate |
≥ 600HZ |
|
Driver IC |
MBI5024 |
|
LED drive |
1/8 scanning, constant current |
|
Control system type |
LINSN |
|
Control software name |
LED Studio |
|
Viewing angle |
Vertical 120° Horizontal 120° |
|
Temperature range |
-10 centi degrees to +50 centi degrees |
|
Ambient humidity |
10%-99% |
|
Service access |
Rear |
|
Standard cabinet weight |
11.5 kg |
|
Power consumption |
Maximum: 300 W/cabinet, average: 150 W/cabinet |
|
Protection level |
Front: IP31, rear: IP31 |
|
Lifetime to 50% brightness |
75, 000 h |
|
LED failure rate |
< 0, 00001 (LED display line standard < 0, 0001) |
|
MTBF |
> 10, 000 h |
