| Prod Model: |
FOX-P4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
2500CD/M2 |
| Pixel Configuration: |
1r1g1b |
| Best Viewing Distance: |
More Than 4m |
| Price And Advantage: |
Factory Price and LED Panel Manufacturer |
| Warranty Time: |
7years |
| Programmable Card: |
3G/SD/U Disk/GPRS/GSM Wireless Control System |
| Input Signal: |
HDTV CATV NTSC PAL S-Video VGA VCD DVD |
| Life Span: |
More Than 100000hours |
| Interface: |
Network/Erial Port/50 Chip/Parallel RS 232/Solar P |
| Diode Model: |
Silan/Nichia/CREE/Epistar/Opto |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
ETL |
| Pixel Density: |
62500 |
Product Description
Indoor P7.62 full color advertising SMD LED display details
1. Multi-application Commercial advertisement; Exchange; Shopping malls; Bank; School
2. It is the best seller products, we can provide a competitive price
3. The best tube chip we just used, the CREE, Opto, Silan, etc. To ensure The quality we have promised to our customs.
4. A good service; 5years gurantee, A free technology support by phone or e-mail.
* Products function introduction: 1) High intensity and can be adjusted, so can meet the request of the customers according the application environment. 2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light 3) To pictures and character, have clear, exquisite and real display effect 4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion 5) Can repair each LED lamps, so the cost of maintain is lower, and easy to repair. * Products Advantages: 1) Price Advantage: We have the best competitive price at the market
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps 3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability. 4) Service advantage: Better service at same situation, better cooperation at same service!
* Products list and application area: 1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display 2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment,

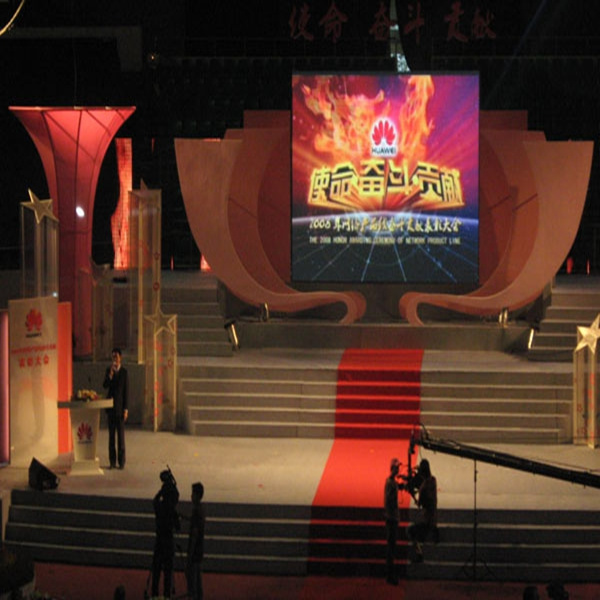

Application of LED display:
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shoping malls
Postal officees, schools, monitoring, restaurants, entertainment, enterprises etc...
Trade Terms:
1. Payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2. Production lead time for 100~500PCS: 10days, 500~1000PCS: 15days
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PC
Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized screen we can help you to design and put into product.
4. Distributoer ship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
| Description | Technical parameter |
| Unit module | Module size | 128*128mm |
| Pixel pitch | 4mm |
| Pixel density | 62500dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | 2121 SMD 3 in 1 |
| Pixel resolution | W: 128dots*H: 128dots |
| Cabinet | Dimension | 768mm*768mm*150mm |
| Quantities of module | 32pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 40kg |
| Best viewing angle | 2-100m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-300W |
| Max. Power consumption | ≤ 320W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/16scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 2200cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. |
| Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
