Prod Model: |
HM-8941G |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
CE |
Type: |
DVD/VCD Player |
Product Description

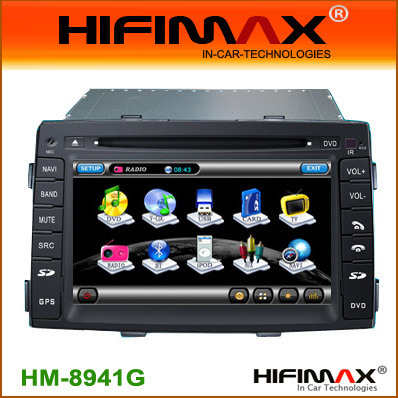

7 inch Double-DIN Car DVD GPS system for (KIA Sorento)
(Digital screen/Bluetooth/RDS/iPod/GPS(Dual zone)/PIP/Steering wheel control) (DVB-T optional)
1 7 inch (16: 9) Motorized in-dash digital screen(800*RGB*480).
2 (RGB) Touch screen with Graphical User Interface.
3 All keys supply red and blue LED, match your original car perfectly
4 Compatible with DVD/VCD/CD/MP3/MPEG4/DIVX/CD-R/WMA/JPEG.
5 Built in TV tuner(if order DVB-T, then will have no Analog TV), PAL/NTSC or SECAM compatible.
6 Built in FM/AM tuner, preset 24 stations
7 Built in GPS system.
8 Dual Zone(music or radio while in GPS Navigation mode)
9 GPS Navigation handwriting function
10 Built in Bluetooth for hands free call (the current mode will switch automatically to Bluetooth mode when call coming, the calling and music in mobile can be operated in? Devices after switch)
11 Built in 4x45W amplifier
12 4CH audio output
13 1 A/V input(1 video, 2 audio), 1 A/V output(1 video, 4 audio).
14 Auto rear viewing function
15 Mute at telephone calling
16 Picture adjustment (brightness, contrast, color, settings)
17 Card size Full function remote control
18 Full function OSD with Chinese, English, Russian.
19 With treble/medium/bass adjust function.
20 Screen angle / Position Memory
21 USB jack and SD card slots for MP3, MP4, WMA, AVI, JPEG files.
22 Steeling Wheel control ports.
23 Electronic & mechanical anti-shock system
24 Accessories: Remote Control, Power Cable, USB connector, Tools, User Manual, GPS antenna, iPod connector
25 PIP(Picture in picture) function.
Option
1 Built-in GPS system
2 Built-in DVB-T system (Add USD40/PCS)
GPS |
Operating System |
Windows CE 6.0 |
GPS Resolution Output |
800x480 |
Media Player |
Yes |
Card Supported |
Micro SD Card |
MAX Memory Supported |
16GB |
Map Supported |
PolNav, Igo, Route66, Tom-Tom, Support 3D Maps |
GPS Baud Rate=9600, Com Port=2 |
Display Screen |
Screen Type |
Digital TFT touchscreen |
Resolution |
800*480 |
Screen Dimension |
6.2 inch 16:9 |
Language |
Main Interface Language |
English Francais Deutsch Italian Espanol |
DVD Control Language |
English,Spainish,Turkish,Portuguese,Russia,etc. |
GPS Console Language |
English, Deutch, Franch, Portuguese, Italian, Espanol,Nederlands,etc. |
DVD Playback |
Disk Format Supported |
DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG |
Media |
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
Bluetooth |
A2DP |
Yes |
Microphone |
Built-in |
Received Call |
Yes |
Dialled Call |
Yes |
Missed Call |
Yes |
Download Contacts |
No |
Store Contacts |
No |
TV Tuner |
Built-in Analog TV |
Yes |
Analog TV System |
NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N ,SECAM-DK |
Built-in DVB-T Tuner |
Yes (Optional) |
DVB-T Format |
MPEG-2,Support 120km/h, 1 x Active Antenna Included |
Built-in ISDB Tuner |
No |
Radio |
AM Frequency Range |
522-1620 (Europe/China), 530-1710 (America) |
FM Tuning Range |
87.5-108 (Europe/China), 87.5-107.9 (America) |
RDS |
Yes |
iPod Control |
Touchscreen Control |
Can Control Music Through Touchscreen |
Show Information Of Music |
No |
Play Video |
No |
Storage Media |
SD Card Slot For Music/Movie |
Micro SD Card Slot |
MAX Memory Supported 32GB |
USB Port For Music/Movie |
Normal USB Port |
MAX Memory Supported 32GB |
Position: Back of the Unit |
Portable HD |
No |
Video & Audio |
Video Input |
1-Channel RCA Input |
Video Output |
1-Channel RCA Output |
Audio Input |
2-Channel RCA Input |
Audio Output |
4-Channel RCA Output |
Reverse Camera Input |
Yes |
3 Zone Out |
Yes |
Other Functions |
2-Zone |
Yes (Listen Radio/CD While Watching GPS Image) |
3-Zone |
Yes (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV
From The Sub-monitor Simultaneously) |
Pictrue In Pictrue |
Yes |
Steering Wheel Control Function |
Yes |
CANBUS |
No |
MFD |
No |
TMC |
No |
V-6 Disc Changer Memory |
Yes |
CDC |
No |
Parking Assistance |
No |
Game |
No |
Button Back Light |
Blue/Red/Purple Illumination |
Accessories |
User Manual*1,Power Cable*1,Remote Control*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,Touchpen*1,USB Cable*1 |
As a professional Car DVD PLAYER, Car GPS manufacturer and exporter in south of China, we could offer complete range of Car Multimedia products to our customers. Especially for OEM integrated car DVD player for different car brand like BMW, Audi, Volvo, Benz, Volkswagen, SKODA, Toyota, Honda, Nissan, KIA, HYUNDAI, Ford, MAZDA etc.
We are also an OEM / ODM solution provider capable of offering our customer with tailor-made products to meet your unique specifications under know-how and inspirations.
Welcome OEM order with customer brand name on the box and products, so if you want to order our models by OEM way, we can discuss it together
Our characteristics:
A) One-to-one service with efficient support;
B) We could offer the best competitive price;
C) We could supply unique items;
D) We offer 2 years warranty our products, 100 % quality test before shipment.
E) Fast shipment & Convenient payment method.
We have abundant exporting experience, espeically in EU market, so we can provide our customers with professional question reply and after-serivce support.
We welcome you to contact us and create long and friendly relationship with world-wide friends! You are sincerely invited to become a distributor of our products.
