| Prod Model: |
GAS8ZR88888TB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB Board Size: |
8 |
| Color: |
Red |
| Voltage: |
12V |
| Input Voltage: |
AC110V, 240V |
| Brightness Control: |
Manual, Automatic |
| Humidity: |
0%-95%Rh |
| Cabinet Size: |
980*380*60mm |
| Usage: |
Outdoor |
| Model: |
PE-Boxwccc9/10gz |
| Name: |
7 Segment LED Display |
| IP Rating: |
IP54 |
| Pixel Pitch: |
12mm |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
6400 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
Segment LED Display |
| Tube Chip Color: |
Single Color or Selective |
| Pixel Configuration: |
Single Color |
| Display Function: |
Display Digit, Price |
| Certification: |
CE, UL, RoHS |
Product Description

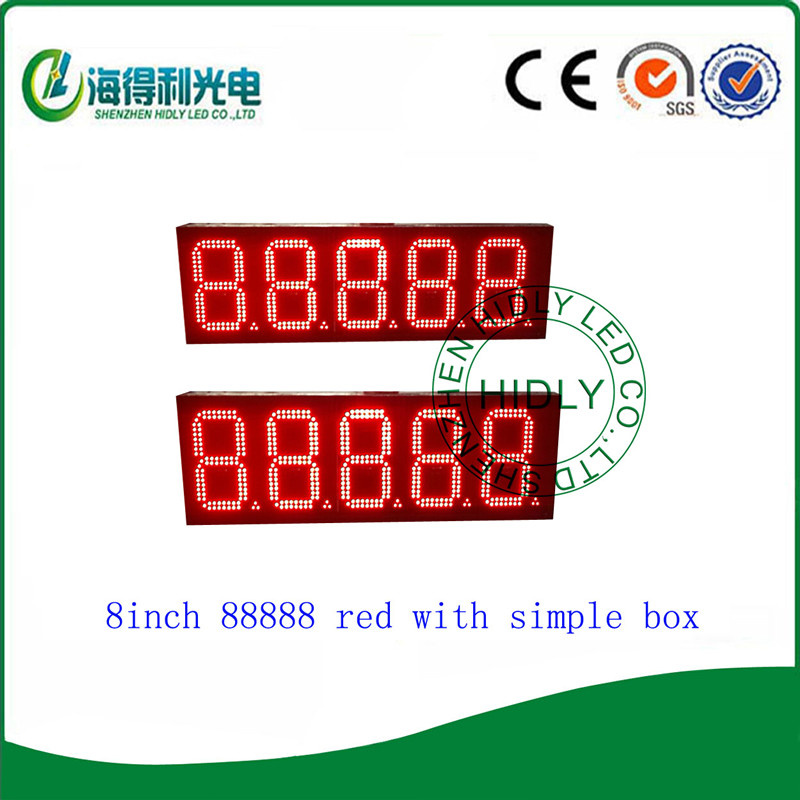

Hidly 8inch Red 7 Segment LED Display (GAS8ZR88888TB)
Specifications for seven segment led display
1. High brightness and quality
2. Enerqy--savor
3. CE or RoHS
4. Wit controller
5. Wide range-8, 12.5, 16, 18, 20inch
One piece 8 inches small panel match with three pieces 12.5 inches
Size: 87.5*34*4.5cm
12.5 inches small panel match with 20 inches
Size: 143.5*57.5*7cm
Gas station panel is programmed by SCM and control the high-brightness LED to display many different price digits. It is energy saving, environmental protection, easy-operation, catch eyes, it is new-style gas price display.
-----------------------------------------------------------------------------------------------------------------------------------------
Instruction for seven segment led display
1. Highly brightness LED are arranged to several 8 figure, the digits can be up to 32PCS.
2. Single side, double sides, three sides, four sides.
3. Support remote editing, 20m distance for infrared communication; Support PC program and wireless communication, distance can be 800m.
4. Adjusting the brightness automatically by skylight brightness, the display can adjust 16levels of brightness automatically between evening and daytime
6. Visual distance. 100m
7. Visual angle. 70 degree
8. Brightness. 4000CD/m2
9. Color. Red, green, amber, white or customized color.
10. Digit mesurement. 12.5inch(digit height) 1inch=25.4mm=2.54cm
11. Single dimension. 233mmX325mm
12. Location hole dimension. 218mmX310mm
13. Single 8 figure weight. 400g
14. LED quantity of one 8 figure. 250PCS
15. Display"0, 1, 2, 3, 4, 5, 6, 7, 8, 9, DOT"
16. Working environment temperature. -40 ° C to +80 ° C
17. Humidity. 0% - 95% RH
-----------------------------------------------------------------------------------------------------------------------------------------
Technical Info for seven segment led display
1. Controller power. 1.5watt, one controller can drive 32PCS"8"figure
2. Max power of 12.5inch is 20watt
3. Voltage. AC110 or AC220.
4. One power of 12V30A can connect 14PCS LED signs(360*0.8/20=14)
5. Method of controlling LED brightness. Manual operation(by remote controller)and automatically control(by light sensor to adjust brightness higher during daytime, and lower during evening to save energy. )
6. Component.: Main board(one controller can drive up to 32PCS of"8"figure maximum. ), power supply, remote controller, infrared receiver port, light sensor.
7. We can customize your products according to your detailed requirements, like voltage, power, installation size, display colors etc.
--------------------------------------------------------------------------------------------------------------------------------------
seven segment led display features
1. Good price
Our gas station panel is 10% lower than the market because of the introduction of full
Automatic production line with the characteristics of reducing the cost of labor and
Management.
2. Gas station panel Lightweight
Aluminum cabinet greatly saving fright cost and conveniently installing.
3. Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction dot rateless than
0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. LED digital number display supporting different formats of images and videos
Many thanks for your kind time to check HIDLY seven segment led display, If you need more information about seven segment led display, Please feel free to cotnact me. Thanks
Size |
8inch |
10inch |
12inch |
14inch |
16inch |
18inch |
20inch |
| Quantity of LEDs |
115 |
229 |
250 |
259 |
273 |
252 |
227 |
PCB Size |
235.6x148mm |
280x200mm |
328x232mm |
370x2462mm |
422x300mm |
498x353mm |
560x395mm |
Power |
5.4W |
11.5W |
10.9W |
9.1W |
9.6W |
11.4W |
12.5W |
Cabinet size for 8888 |
612*225*60mm |
830*318*60mm |
855*335*60mm |
1108x430x60mm |
1248*472*60mm |
1472x557x60mm |
1650x630x60mm |
| Color | Red. Green. Blue. Yellow. White |
| Control box size | 300 x 300 x 80mm |
| RF Control system | RF controller. RF remote, MeanWell Power supply ,fan, light Sensor, control box |
| Control Distance | 30m -100m
|
