| Prod Model: |
YET-R10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Access Controller |
| Communication Mode: |
Wiegand26 or RS232 |
| Software System: |
No |
| Data Reading Method: |
Card |
| Connection: |
Several Network Access Control System |
| Type: |
Card |
Product Description

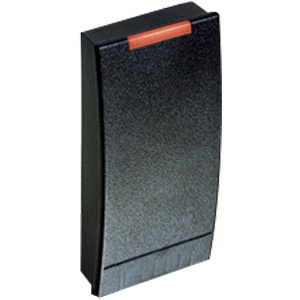

HID compatible proximity card reader. It reads all HID standard 125KHz proximity card serial number and transmits it to the access control system using the common Wiegand interface or any other OEM interface requirements in the future
Specification:
1. Voltage DC9V-15VDC (+_5%)
2. Current < 50 mA
3. Interface: Weigand26/34, RS485/232
4. Reader Range: 5 - 10 cm
5. Frequency: 122-128KHz
6. Operation Temperature: -20C to +65C
7. Operationg humidity: 5%-95% relative humidity non-condensing
8. Audio/Visual Indication: Green & Red and Buzzer signal output
9. Response Time: Less than 0.2 seconds
10. Cable length: 250mm
11. Waterpoof: IP65
