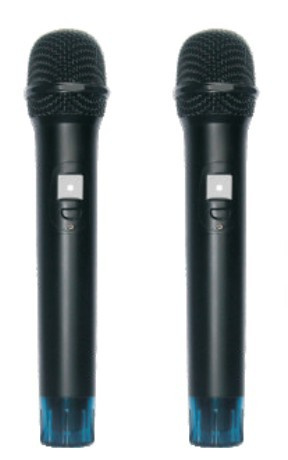

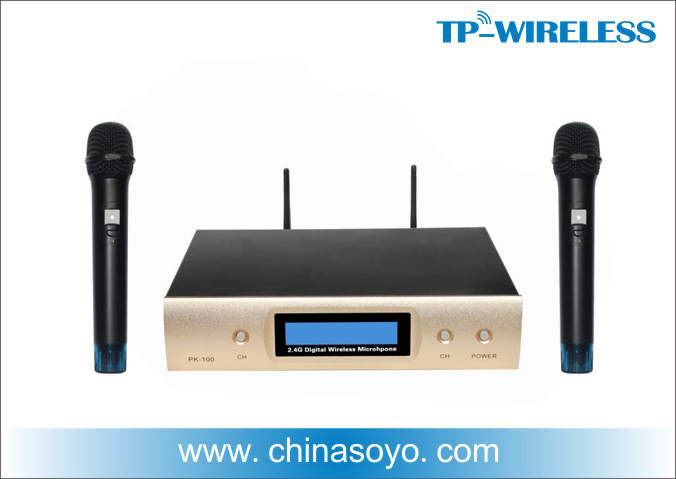

Hi-Fi Digital Wireless Microphone

Hi-Fi Digital Wireless Microphone
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 50/Set
Pay Type: T/T,D/P,Paypal,Money Gram,Western Union
Prod Model: TP-WMIC03
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black
Signal Transmission: Wireless
Application: Meeting
Directivity: Uni-direction
Transducer Principle: Electrodynamic Microphone
Sound Field Force: Combined Type

Product Description


Brand Name: SOYO
Model Number: SOYO-WMIC2009
Style: Handheld Microphone
Communication: Wireless
Use: Karaoke Microphone
Place of Origin: Guangdong China (Mainland)
Color: Black / Silver / Light Golden
Modulation: GFSK Sampling ratio: 64K
Frequency Response: 20 -20KHz
Channel numbers: 80
Sound Delay: < 0.5ms
Packaging & Delivery
Packaging Detail: Solid Gift box packaging
Delivery Detail 15days from order confirmed date



Specifications

1. Transmit frequency 2400-2480 MHz; 80 channels offered;
2. Complete digital transmission, high anti-resistance capability;
3. Sampling rate 64k 16Bit * 2; Frequency Response 20-20KHz, HDCD sound quality;
4. The shortest latency(< L0.5ms), Surround sound;
5. ID pair function, receiver will trace the signal from Handheld Microphone intelligently.
6. Rechargeable battery or dry battery can be used in wireless lmicrophone;
7. LCD screem of receiver displays signal status, channel and frequency.
8. Easy to use, convenient to install; Black, silver and light golden colors for option. Flexible in design and support customization.



NO. Description Transmitter module Receiver module
1 Work voltage 3.6- 6V DC 2.5 - 3.6V DC
2 Work electric current Max 120mA Max 35mA
3 Work temperature -15 - +65 -15 - +65
4 Frequency response 2400 - 2483 MHz 2400 - 2483 MHz
5 Modulation GFSK
6 Baud rate 2M bps 2M bps
7 Channel space 4MHz 4MHz
8 Stabilization of frequency +/-156KHz +/-156KHz
9 Work frequency range 2400 - 2483 MHz 2400 - 2483 MHz
10 Work channel 20 CH 20 CH
11 Channel space of module 4MHz 4MHz
12 Output power 0-20 dBm
13 Receiver sensitivity   90dBm
14 Input power Max 1.0Vrms
15 Input impedance 10k Ohm
16 Input mode Two input modes:
1. Microphone
2. Stereo audio

17 Stereo output 1   30mW   RL = 32Ω
18 Stereo output 2   50mW   RL = 16Ω
19 Output impedance   1k Ohm
20 RF Distance 100-150 meters in the open area under 20dBm
21 Output input gain ratio 1:1
22 Frequency response 20 - 20000Hz ( +/1dB )
23 The latency time < 0.5 ms
24 Sampling ratio 64kHz@16 bit*2
25 SNR 95 dB
26 Distortion 0.8%@1kHz
27 Dynamic range 90dB
28 Separation between the left and right track 70 dB
Soyo Technology development Co. Ltd is a national High-Tech enterprises with certification of software enterprises and products. SOYO owns independent intellectual property rights and the core technology on 2.4G/5.8g digital wireless audio and video transmission technologies. SOYO is well known in Asia-Pacific region as a professional digital wireless audio and video transmission solutions provider, and is committed to creating the best, most complete wireless audio, video and data transmission products and solutions

SOYO Technology was established in 2005, main founder graduated from the Tsinghua University and the University of Science and Technology of China(USTC), has always focused on the development and innovation of 2.4G/5.8G digital wireless audio and video transmission technology. Our products have been sold to over 50 countries and regions, cover four main application areas: Education, Tourism, Professional Audio, Consumer Electronics Field.

In the tourism & Museum industry, SOYO technology offers complete solutions from product to service, include digital wireless tour guide system, digital wireless VIP guide system, Audio guide/Video guide system, 3D video show technology and the related service of the Multilingual audio and video production etc. SOYO believe that we can give the the museum, Science and technology museum, Planning museum, Tourist Attractions the best service and totally solution on the tourism interpretation, wireless tour guide and show, exhibition digitalization and intellectualization. In the professional wireless tourism guide and exhibit explain technology field, SOYO technology has become the largest scale, the most powerful technology, most complete solutions & most perfect after-sales service network.

SOYO have successfully applied the digital wireless tourism guide system and professional exhibit explain loudspeaker system in below famous museum in China:

History museum of Party School of the CPC Central Committee, the British consulate in Shanghai, Museum of Shandong Province, Wuhan Ordnance Officer School History Museum, the Mongolian National Museum, Dalian Sun Asia Sea World, Deng Shichang Memorial museum, Huangpu Ancient village Cultural History Museum, Yanbian Museum, Peking University Library etc., also finished the construction of corporate pavilions of some famous domestic and foreign companies like China's Nuclear Power Group, Porsche (China branch), S. F Express (headquarters), Ricoh China, Mitsubishi Electric Co., Ltd in China, which is the remarkable achievements SOYO made amoung the museum of Chinese tourism industry equipment manufacturers. Soyo also engaged in cooperating with the famous exhibition /museum design company so they can provide professional tour guide and explain solution to the end user to expain what their good design on museum in wireless.

SOYO technology developing rapidly in recent years, has become a national double soft enterprise, national high-tech enterprise, AAA quality credit enterprise in China, achieve the honor of 2011 China venture capital value list new 30 strong entrepreneurship, the third China (shenzhen) innovation contest awards, the first China Tianjin Technology Entrepreneurship Competition Success Endeavour Award. Besides those, SOYO has passed the global wireless certification such as FCC in North American, CE in European Union, TELEC in Japan, Chinese 3C and China radio models approval etc., also gained all the certifications for the global sales of wireless products. We are worthy of being leader in the field of wireless audio and video transmission technology. In May 2013, SOYO officially listed in national financial reform of science and technology demonstration area Qianhai stock trading center, stock code is: 660173.

SOYO would like to share the beauty of Science, Technology and Innovation and create the bright future of the intelligence times with you.
