Product Description
Product highlight:
1. HF proximity card reader
2. TCP/IP interface, poe or external power supply.
3. Wall mounted installation
4. 3-5cm reading distance
5. Protocol: ISO14443A;
Product Description

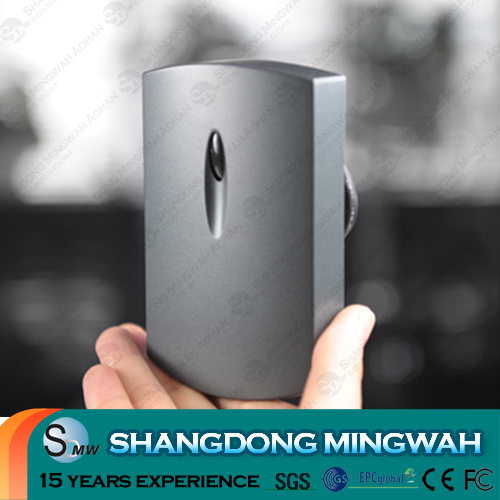

MW6540TP contactless card TCP/IP reader is the wall-mounted reader, supporting ISO14443A&B standard cards. It connects with the switch via external or POE power. It's a frontend network processor to develop contactless card applications and system integration.
Product Features
1)Industrial design, suitable for indoor or outdoor environments
2)Input power: 8-28V DC current. It can work together with almost all the controller in the market.
3)Support POE power supply.
|
Basic Parameters |
|
Model |
MW6540TP |
|
Dimensions |
118 mm× 76 mm× 23mm |
|
Operating Temp |
-20 to +70 centigrade |
|
Interface |
TCP/IP |
|
Power Supply |
POE or external power supply |
|
RFID Parameters |
|
FrequencyRange |
13.56MHz |
|
Protocols |
ISO 14443 A& B |
|
Cards Supported |
ISO14443A/B cards, such as Mifare 1K/4K, DESFire, Ultralight, CPU etc. |
|
ReadRange |
< 5cm (depend on the cards) |
Shandong Mingwah Aohan Smart Tech Co., Ltd. is a leading RFID enterprise in China. SDMW focus on providing customer with the highest quality RFID products and comprehensive RFID solutions.
SDMW has over 15-years experience on RFID, and formed a leading R&D team on software and hardware. Its products cover from classical RFID cards& tags to the relevant equipments such as smart card reader, magnetic card reader, UHF/HF /LF card reader, 2.45 GHz Active RFID reader, POS terminal etc. All the products are based on the ISO standard such as ISO7816, ISO14443 Type A/B/C, ISO15693, ISO18000-6B/ EPC protocol, and most of them are designed comply with CE, RoHS, FCC, UL,
Based on technological innovation, SDMW provided lots of personalized RFID products and solutions in LF/HF/UHF/Microwave fields. The products are widely used in Security, Intelligent Transpiration System, Parking system, Assets tracking, Identification, Access Control, Financial, and Medical etc.
SDMW formed an integration of sale, marketing and customer service system, which offers you One-stop service. We also offer 24 hours technical service and RFID resolutions.
"Offering prefect RFID products; Creating more intelligent and open information net, and Helping you to sensing the intelligent of RFID" is what SDMW strive for.
"To be your preferred profession partner in RFID"is the vision of SDMW
"Passion, Innovation, Integrity, Responsible, Service, Team work" are the core value of each SDMW worker.
Contact now, and be successful with us!
