| Prod Model: |
TC-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Am Output Power: |
Max 150 W(Input 10W) |
| Used For: |
Professional |
| Output Number: |
1 |
| Element Number: |
Monoamplifier |
| Type: |
Power Amplifier |
| Usage: |
Power Amplifier |
| Voltage: |
12-14 Vcc |
Product Description

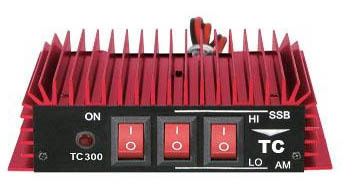

HF Power Amplifier/cb amplifier/amplify power
Mini Amplifier
Sample is available
| This model can be amplify 100-150W for CB radio. 1. Turn on/off switch 2. Auto receive/transmit switch 3. Electrode reversal protect |
| Specifications |
| Frequency range | HF (20-30 MHz is the best) |
| Operate voltage | 12-14 Vcc |
| Input current/POWER | 14-20 A |
| Input power | 1-5 W |
| SSB input power | 2-10 W |
| FM Output power | Max 150 W(Input 10W) |
| AM Output power | Max 150 W(Input 10W) |
| SSBoutput power | Max 300 W(Input 10W)
Max 250W (Input 5W ) |
| Working mode | FM- AM-CW-SSB |
| Blown fuse | 2x12 A |
| Dimension | 109x225x35 mm |
| Net weight | 750 g. |
| Product Description |
| Compact high power all mode linear amplifier with automatic TX/Rx switch and On/Off switch. |
| Electronic switch. Inversion polarity protection. |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
