| Prod Model: |
CLA-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Color: White And Blue: |
Size: 360 X 622 X 228cm |
| Structure: |
Portable |
| Usage: |
Engineering |
| Air Volume: |
301-400m³/h |
| Type: |
HEPA Filter |
| Certification: |
CQC |
| Application Area: |
41-60m² |
| Power Source: |
Electrical |
| Operating Principle: |
Passive |
| Purifying Technology: |
Photocatalyst |
| Anion Density: |
>4000000pcs/m³ |
Product Description
Air Purifier for home and Office (CLA-02)(1) Anion generator, plasma technology using positive and negative ions to purify air

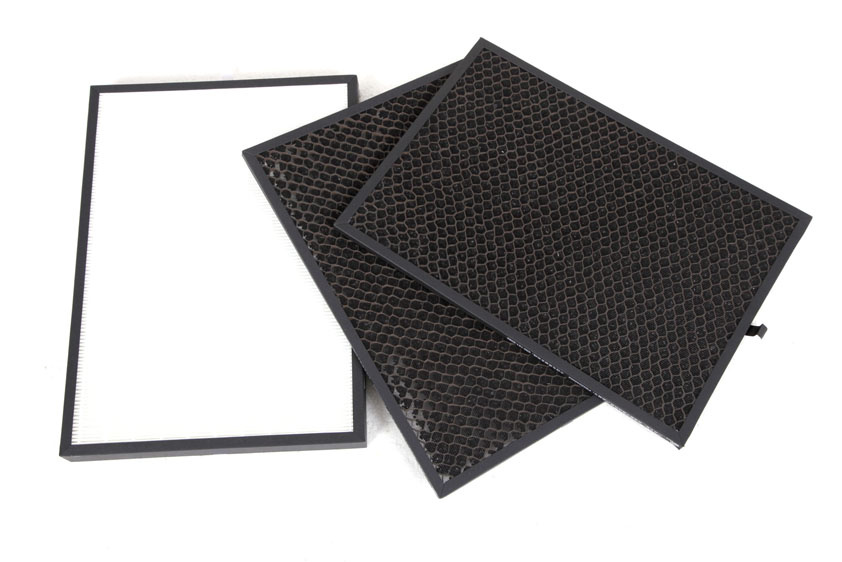

(2) HEPA filter of high efficiency

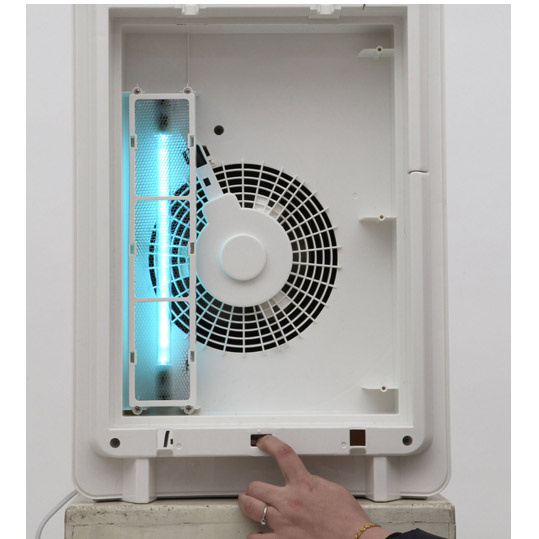

(3) UV lamp
(4) Formaldehyde filter
(5) Activated carbon filter-Highly effective
(6) Nano Silver
(7) Air quality intelligent senstor
(8) Adjustment of air speed
(9) Remote control, time setting
(10)Optional: Vitamin C / Catechin / DNA
| Model Number | CLA-01 | CLA-02 | CLA-03 |
| Filter | Pre-Filter | Pre-Filter | Pre-Filter |
| Formaldehyde filter | Formaldehyde filter | Formaldehyde filter |
| VOC Filter | VOC Filter | VOC Filter |
| HEPA Filter | HEPA Filter | HEPA Filter |
| CADR | Smoke | 176 | 176 | 176 |
| Dust | 185 | 185 | 185 |
| Pollen | 190 | 190 | 190 |
| Room Size(m2) | 30-60 | 30-60 | 30-60 |
| Fan speed Sleep | 20dBA / 39W / 110 CFM | 20dBA / 39W / 110 CFM | 20dBA / 39W / 110 CFM |
| Low | 22dBA / 43W / 165 CFM | 22dBA / 43W / 165 CFM | 22dBA / 43W / 165 CFM |
| Noise Level(dB)/ |
| Power Consumption(W)/ | Middle | 33dBA / 48W / 210CFM | 33dBA / 48W / 210CFM | 33dBA / 48W / 210CFM |
| Air Flow Rate(CFM) | High | 42dBA / 55W / 235CFM | 42dBA / 55W / 235CFM | 42dBA / 55W / 235CFM |
| Pollen |
|
|
|
Dust exclusion
(particles and impurities as small as 0.3 microns) | 99.99% | Formaldehyde Decomposition rate | 95% |
| Germicidal rate | 99.06% | Anion generation(pcs/cc) | > 5 million |
| TVOC | 99.00% |
|
|
| Body Dimension | 14.2 x 24.5 x 8.9 inch | 14.2 x 24.5 x 8.9 inch | 14.2 x 24.5 x 8.9 inch |
| (Width X Height X Depth) | 360 X 622 X 228(mm) | 360 X 622 X 228(mm) | 360 X 622 X 228(mm) |
|
|
|
|
| Packing Size |
|
|
|
| Net Weight | 7.5kg | 7.5kg | 7.5kg |
| Gross Weight | 8.5kg | 8.5kg | 8.5kg |
| Loading quantity per 20'/40'/40'HQ | 399/810/954 | 399/810/954 | 399/810/954 |
