| Prod Model: |
QAL-CP-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Colorful Steel |
| Size: |
15 Heat Pipe Tubes |
| Package: |
Cartons with Foam |
| Color: |
White/ Black |
| Angle: |
27'-45' |
| Capacity: |
150L or Optional |
| Pre-Heated Solar Water Heater: |
Optional |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Certification: |
CCC |
| Interior Material: |
SUS304 |
Product Description
CE, ISO, Keymark, five years warranty, 6 years export experience, manufacture since 2000
Qal solar water heater advantages:
1> CE, ISO. Five years warranty, long life span
2> Most competitive price and high quality
3> Quality assurance comply with ISO 9001-2008
4> Product quality in compliancee with CE
5> Fast delivery and rich export experience
6> OEM and ODM service

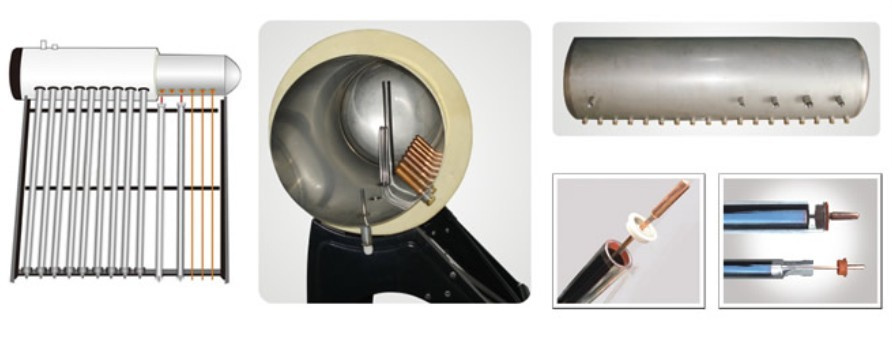

Solar Heater Details:
Model: QAL-CP-12
Heat pipe Vacuum tube:High qulity borosilicate glass 3.3, Φ58*1800mm
Inner tank:SUS304-2B stainless steel plate, 1.5mm thickness
Outer tank:Color steel plate, 0.4mm thickness
Insulating layer:Polyurethane foam 55mm
Bracket:Galvanized steel
Capacity:100L,150L,200L,250L,250L,300L
QAL integrative pressurized system is a renovate model for the solar hot water, which adopts advanced heat pipe technology, combines heat pipe solar collector with pressurized tank to form a compact model.
Solar heater features
1)Highly efficient absorber of high performance with daily average efficiency over 70%
2)Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction
3)Withstand pressure of 6 Bar, can be connected directly with city water
4)No water inside the tubes, the system can still work even with several tubes breakage
5)Simple structure, easy to assembly and install
6)Can be used all year round in the very cold climate
7)Can be used together with Auxiliary electric boost
8)Long service life, can be used as long as 15 years
Solar heater working principle
1.The solar heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.
2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot
3.No water in the heat pipe makes the whole system could bear pressure.
| Description | pressure solar water heaters |
| Material of out tank | 0.4mm thickness color steel/ fluorine carbon steel |
| Material of inner tank | Food grade1.5mm thickness SUS304 stainless steel |
| Tank insulating layer | 55mm 45kg/m³ high-density polyurethane foamed |
| Max pressure | 0.6 Mpa |
| Inlet and outlet hole | Male G 1/2,3/4 |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96 (AM1.5) |
| Emission ratio | εh=0.04-0.06 (80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 1.5mm thickness Galvanized Steel |
| Structure of tank | 5 holes for air vent,water inlet and outlet, El. Heater and mag. rod |
| Fastening pieces | Made of stainless steel screw |
| Absorber area | 1.125 m² |
| Tube quantity | 58x1,800mmx15tube with heat pipe |
| Tank capacity | 150L |
From its early beginnings in 2000 Redao (originally called Alinsidun Technologies) is a designer and manufaturer of solar water heating prodcts in China. All of our products are designed to ensure robust performance over a long lifespan. All Redao products are complied with CE, ISO9001-2008.
With our dedicated and experienced team, our specialised manufacturing base, as well as the continued focus on technical solutions and customer service, we are sure that Redao will remain the supplier of choice for many throughout the coming years.
Redao strives to maximize production outputs and quality using the very lastest in manufacturing techniques, and uses equipment with proven reliability and the flexibility to adapt to fast changing requirements of customers. If you are interested in Redao water heater system, please feel free to call us.
Redao brief profile:
2000>Alinsidun establish, the former name of Redao. Production of solar water heater tank begins.
2001>Alinsidun develop its first solar water heater. Rush production begins.
2002>Alinsidun opened sales and distribution office in Shanghai, China.
2003>Alinsidun was awarded "Observing contract & Valuing Credit Star factory" by Zhejiang Quality Examinations and Appraisal Center.
2004>Export production begins.
2005>Alinsidun observed Good Quality control system by Chinese Product Quality Management center. At the same time, Alinston became the mumber of China Solar water Quality Control System.
2006>Alinsidun was awarded "China Solar Water Heater Most Famous Brand" by China Product Quality Management Center.
2007>Alinsitun complied with the Quality Assurance Requirements of ISO 9001-2000
2011>Redao became the company name instead of Alinston, and Redao solar water heaters complied with CE certification. In Aprial, Redao complied with ISO 9001-2008.
2012>QAL mark registered.
