Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
Warranty: |
5 Years |
Inner Tank: |
Sus304-2b Imported Food-Grade Stainless Steel |
Capacity: |
100L-300L |
Collector: |
Vacuum Tube |
Structure: |
Compact Type |
Pressure: |
Pressurized |
Interior Material: |
Stainless Steel |
Collector Components: |
Glass Vacuum Tube |
Certification: |
CE |

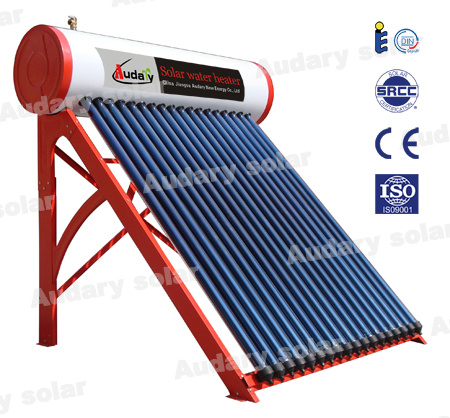

Product Description
Pressurized tank can work withstand over 6 bar pressure
The hydraulic pressure is same as tap water which would make the bathing very comfortable.
with the T/P valve, air vent valve makes the system work very stable and safety. It is using the special heat pipe which makes higher heat transfer into the tank. Anti freezing design, no water inside the tubes, so it still work when some tubes broken.
Luxury and solid bracket which can be mounting both on sloop and flat roof.
Intelligent controller and electric back up heater, work at anytime and enjoyable.
1. Inner tank: SUS304/2B or SUS316L
2. Outer tank: PVDF or colorful steel
3. Insulation: Polyurethane foam
4. Bracket: Luxury galvanized steel
5. Tube: Heat pipe with 58*1800mm evacuated tube
Material |
Evacuated tube |
High borosilicate glass, with aluminum absorption layer of magnetron sputtering |
Inner tank |
SUS 304-2B food-grade stainless steel, Φ 360mm |
Outer tank |
Color coated galvanized steel, Φ 470mm |
Bracket |
Galvanized steel with electrostatic plastic-sprayed |
Thickness |
Insulation layer |
55mm |
Inner tank |
1.2mm |
Outer tank |
0.4mm |
Bracket |
1.5mm |
Accessories |
Fasteners |
Stainless steel screws. |
Sealing ring |
Macromolecule silicone rubber. |
others |
P/T valve, electrical heater, magnesium rods, relief valve |
Specification |
Heat preservation |
72 hours |
Hail resistance |
20-30mm |
Max Water Temperature |
Can reach at least 95 degree |
Circulation |
Indirect /Closed loop (Active) |
Heating System |
Thermosyphon (Passive) |
Connection Type |
Direct-plug |
Absorption Rate |
≥ 0.95± 0.02 |
Emission Rate |
≤ 0.20± 0.02 |
Vacuum Tightness |
P≤ 5.0*0.0001Pa |
Idle sunny property parameres |
Y=220-260. /KW |
Total Weight |
110KGS |
Certifications Solar |
Keymark, SRCC, SGS, CE, ISO9001 |
Warranty |
5 years |
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
