| Prod Model: |
JJL |
| Warranty: |
5 Years |
| Product: |
Heat Pipe Solar Collector/Thermal Solar Water Heat |
| Solar Vacuum Glass Tube: |
High Boron-Silicon |
| Coating Of Glass Tube: |
Cu/Ss-Aln/Aln(Three Target) |
| Manifold Pipe Material: |
Tu1 Copper |
| Application: |
Solar Collector, Solar Hot Water Heater |
| Flow Type: |
Heat Pipe |
| Frame/Stand/Bracket Material: |
SUS201 Oraluminium Alloy Frame 1.2mm |
| Material Of Inner Manifold: |
Copper, with Stand Pressure up to 0.6MPa |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Composition: |
Collector |
| Certification: |
CCC |
| Collector Components: |
Heat Pipe |
Product Description

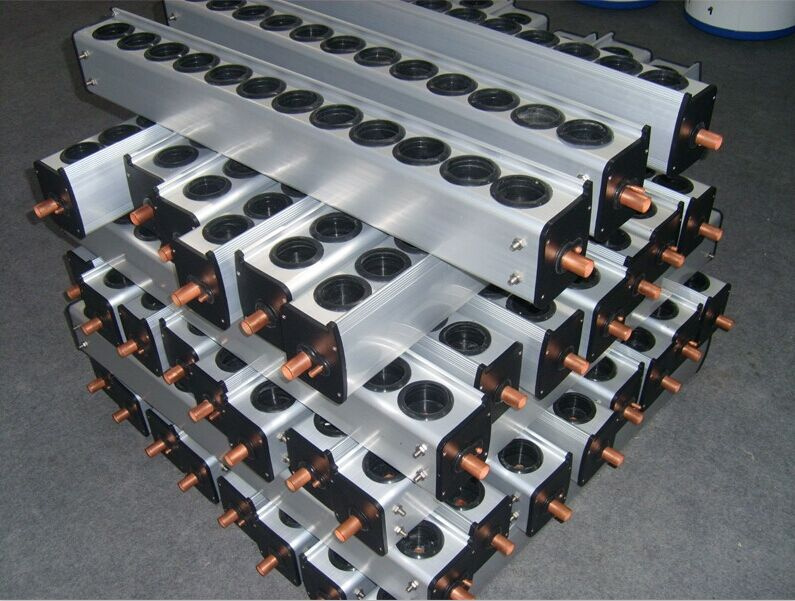

Heat Pipe Solar Collector/Thermal Solar Water Heater
We manufacturer of solar water heater more then 15years in China.
Main products:non pressure solar water heater,high pressure solar water heater,prea-heated solar water heater,heat exchange solar water heater,heat pipe solar collector,non pressure solar collector,solar manifold,split solar water system etc.
Key Specification:
Water is rapidly heated by the heat pipe
There is no water in the vacuum tube, so the tube will not break in winter
The small size of the collector allows for versatile architectonic integration
Collector can be combines with existing pipeline
The collector can operate even in case of a broken tube. A single tube can if necessary be exchanged without interruption of the heating cycle.
Material:
Outer tank: aluminum alloy 2.0mm
Frame if made of aluminum alloy.
Remark:
Manifold connection(inch):1/2 3/4
Test pressure(pa):1MPa
Operating fluid ppressure(pa):0.6MPa
Max. service temperature:95
Max. stagnation temperature:242
Distance from tube to tube:75
Flow range recommendation:50-150l/m2h
Insulation thickness(mm):40
Min. collector angle(degree):15
Max. collector angle(degree):75
| Model | Tube
Specification | Tube Coating | Absorb Area | 20'GP |
|
| JCN-PS10 | 58*1800*10mm | Heap Pipe | 1.3m2 | 147 |
| JCN-PS12 | 58*1800*12mm | Heap Pipe | 1.55m2 | 120 |
| JCN-PS15 | 58*1800*15mm | Heap Pipe | 1.95m2 | 92 |
| JCN-PS20 | 58*1800*20mm | Heap Pipe | 2.6m2 | 72 |
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
