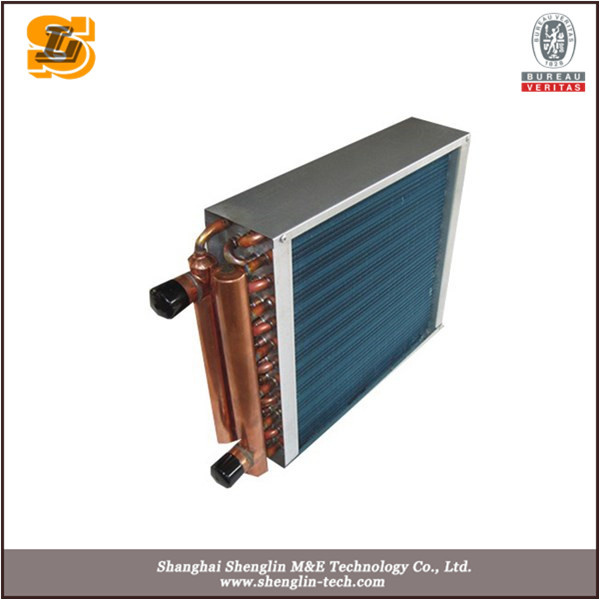

Heat Exchanger for Ice Maker (CD series)
| Price: |
US $ 40-45/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
CD series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Material: |
Copper, Aluminium |
| Fin Material: |
Steel, Stainless Steel |
| Hole Space: |
17.6 |
| Refrigerant: |
R22/R134 |
| Structure Material: |
Metal Material |
| Heat Transfer Surface: |
Tubular Heat Exchanger |
Product Description
Specification- Material :copper , aluminum ,galvanized plate
- Aluminum foil: hydrophilic or bare
- Fin type: louver fin or flat fin or corrugated fin
- Pitch of fins can be adjusted between 1.8—5.8mm.
- Pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
- Suitable for R134A, R22, R404A, R407C refrigerant and so on
- Voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
- Different alternative condensing fans available: shaded pole or outer rotor fan motor.
- Did gas examination under 3.0Mpa air pressure to ensure the tightness.
|
Fin Pattern |
Copper Tube O. D. (mm) |
Row Space(mm) |
Hole Space(mm) |
Fin Thickness(mm)
|
Fin Space(mm) |
|
Flat fin |
Sine wave with blade fin |
Smooth sine wave fin |
Window fin |
Sesamoid fin |
|
A |
7 |
12.7 |
21 |
0.105 |
/ |
/ |
1.3 |
1.3 |
/ |
|
B |
7 |
13.2 |
17.6 |
0.105 |
/ |
/ |
1.3 |
1.3 |
/ |
|
C |
7 |
12.7 |
20.4 |
0.105 |
/ |
/ |
1.3~1.8 |
1.3~1.8 |
/ |
|
D |
7.94 |
15.88 |
25.4 |
0.105 |
1.8~3.0 |
1.8~3.0 |
1.8~3.0 |
1.8~3.0 |
/ |
|
E |
9.52 |
22 |
25.4 |
0.105~0.15 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
/ |
|
F |
9.52 |
22 |
25.4 |
0.18~0.4 |
3.5~6.35 |
/ |
/ |
/ |
/ |
|
G |
9.52 |
21.65 |
25 |
0.105~0.18 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
/ |
|
H |
9.52 |
21.65 |
25 |
0.15~0.24 |
3.2~6.35 |
3.2~6.35 |
3.2~6.35 |
/ |
/ |
|
I |
12.75 |
27.5 |
31.75 |
0.115~0.15
|
1.5~3.5 |
1.5~3.5 |
1.5~3.5 |
1.5~3.5 |
1.6~3.2 |
|
J |
15.88 |
33 |
38.1 |
0.115~0.15 |
1.5~4.0 |
1.5~4.0 |
1.5~4.0 |
/ |
/ |
|
K |
15.88 |
34.64 |
40 |
0.115~0.15 |
/ |
2.6~3.5 |
2.6~3.5 |
/ |
/ |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
