| Prod Model: |
JJLSSNP-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |

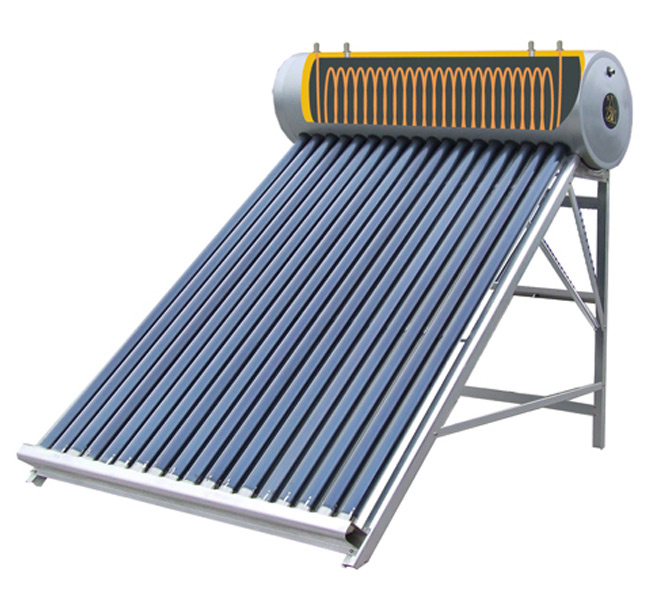

Heat Exchang Solar Water Heater |
| Inner Water Tank: |
SUS304 Stainless Steel 0.4mm Thick |
| Outer Water Tank: |
SUS201 Stainless Steel 0.4mm Thick |
| Bracket: |
SUS201 Stainless Steel, 1.2mm |
| Tube: |
20 Vacuum Tube 58*1800mm |
| Angle: |
20 Degree to 60 Degree |
| Warranty: |
5 Years |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Bracket |
| Certification: |
ISO9001 |
Product Description
We're a professional manufacturer of solar water heater, with rich experience in the R&D and Production. We can offer the different styles and colors prodcut. Customers' own logo can accepted.
Solar water heater specifications:
1, Inner water tank: SUS304 stainless steel 0.4mm thick
2, Outer water tank: SUS201 stainless steel 0.4mm thick
3, Bracket: 1.2mm SUS201 stainless steel
4, Solar vacuum tube:
A) Size: 58 x 1, 800mm
B) Qty: 20 / 24 / 30 PCS (copper coil: 10, 20, 25, 30meter)
5, Temperature insulation layer: 5, 5cm imported polyurethane, keep same temperature and high pressure foam
6, Tank diameter: 460mm
7, Temperature using range: Solar water heater can be used above 20 degrees below zero, in the case there is electrical heater to keep the water heat).
Model | Tube Size | Absorber Space | Volume | Tube Qty | Actual Capacity | Loading pcs |
| | MM | M2 | M3 | | (L) | 20 GP | 40 GP | 40 HP |
| JIJ4715-15-NP | 47*1500 | 1.69 | 0.36 | 15 | 82.5 | 72 | 150 | 188 |
| JIJ4715-18-NP | 47*1500 | 2.03 | 0.42 | 18 | 99 | 61 | 128 | 161 |
| JIJ4715-20-NP | 47*1500 | 2.25 | 0.46 | 20 | 110 | 56 | 117 | 147 |
| JIJ4715-24-NP | 47*1500 | 2.70 | 0.54 | 24 | 132 | 48 | 100 | 125 |
| JIJ4715-30-NP | 47*1500 | 3.38 | 0.65 | 30 | 165 | 40 | 83 | 104 |
| JIJ5818-15-NP | 58*1800 | 1.92 | 0.59 | 15 | 120 | 44 | 91 | 115 |
| JIJ5818-18-NP | 58*1800 | 2.31 | 0.69 | 18 | 144 | 37 | 78 | 98 |
| JIJ5818-20-NP | 58*1800 | 2.57 | 0.74 | 20 | 160 | 35 | 72 | 91 |
| JIJ5818-24-NP | 58*1800 | 3.1 | 0.89 | 24 | 192 | 29 | 60 | 76 |
| JIJ5818-30-NP | 58*1800 | 3.62 | 1.09 | 30 | 240 | 23 | 49 | 62 |
| JIJ5818-36-NP | 58*1800 | 3.89 | 1.29 | 36 | 288 | 20 | 41 | 52 |
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
