| Prod Model: |
Sanway K-820 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gross Weight: |
5kg |
| Operation Distance: |
300m |
| Style: |
Headset Microphone |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Application: |
Measurement |
| Directivity: |
Omni-direction |
| Transducer Principle: |
Piezoelectric Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Combined Type |
| Sound Channel: |
Stereo |
| Connector(',s): |
XLR 3 Pin |
Product Description

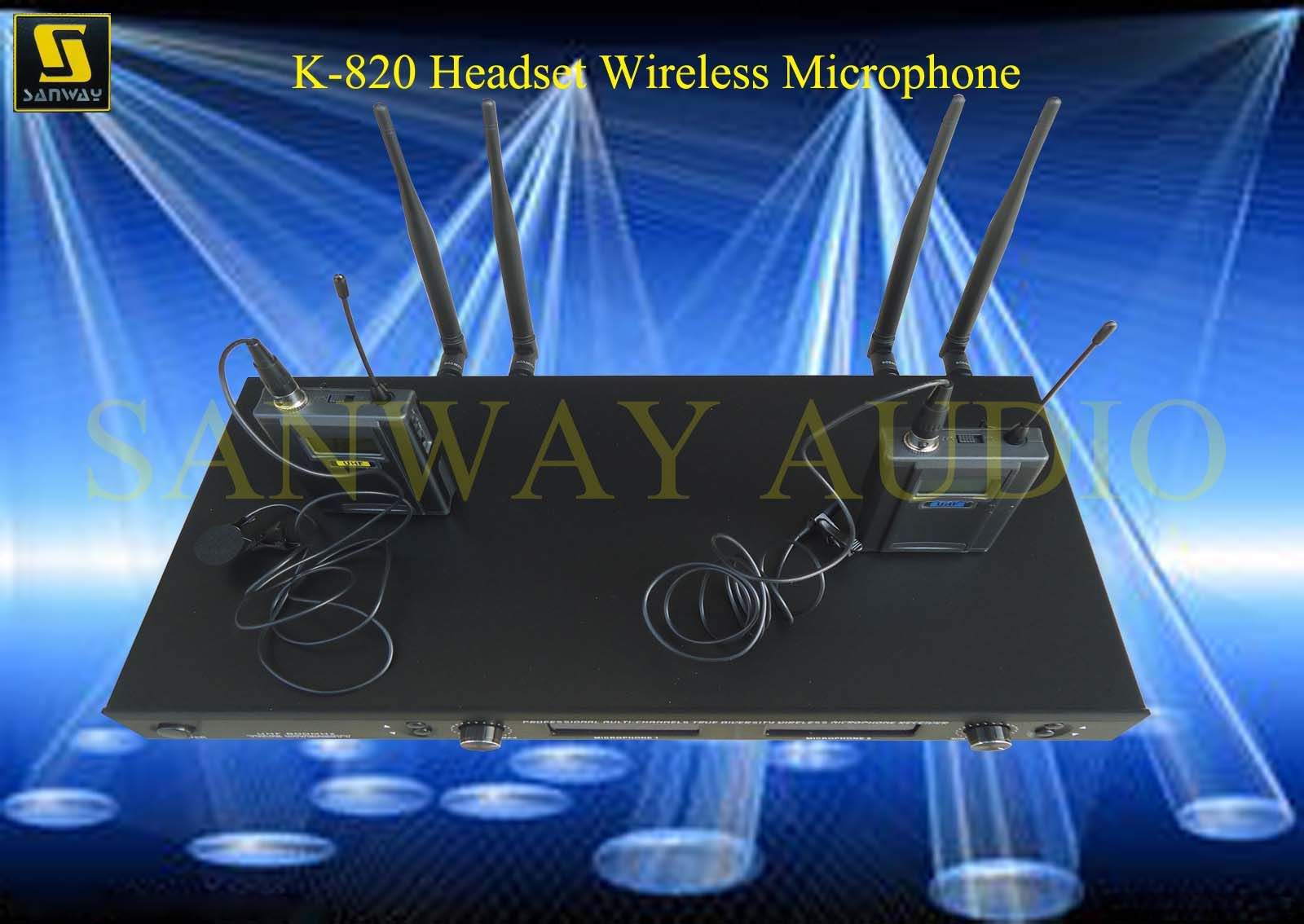

Headset Wireless Microphone System (K-820)
FEATURE
* UHF 800MHz band PLL frequency synthesized
* 64+96 applied channels with 300KHz channel space
* Dual tune true diversity receiver
* Twice mixer superheterodune circuit for high sensitivity
* Excellent SAW filter for RF and IF circuit
* Manufactured by SMT components and technics
* AA size batteries for microphone, supply time up to 10~30h
* Dual DC-DC step up circuit design for microphone
* Up to 300 meter operation distance in perfect environment
Applications
1>. Arenas, Cinema
2>. Convention Centers
3>. Medium or large Ballrooms
4>. Perfect for corporate
5>. Theaters Music
6>. Club or Church
7>. Concert reinforcement
SPECIFICATION
Frequency range: 730~950MHz
Selectable channels: 64+96
Oscillation mode: PLL synthesized
Frequency stability: ± 10ppm
Receive mode: Superheterodyne
Diversity type: Dual tune true diversity
Input sensitivity: -90dBm
Audio response: 40~18000Hz
T. H. D. At 1kHz: ≤ 0.5%
Signal to Noise Ratio: ≥ 100dB
Audio output: Balanced and Unbalanced
RF power: 10~30mW
Modulation mode: FM
Battery requirement: 2× 1.5V AA size
