| Prod Model: |
YT-HD01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
77.2 X72 X20 (Mm) |
| Weight: |
0.15kg |
| Color: |
Black |
| Max Bandwidth: |
225MHz |
| Max Baud Rate: |
6.75gbps |
| FM: |
Without FM |
| Finish: |
Piano Finish |
| Player Type: |
HDMI Splitter |
| Speaker System Audio Output Mode: |
Surround Sound |
| Control: |
Wired |
| Sound Channel: |
5.1 |
| HDMI Quantity: |
1 |
Product Description

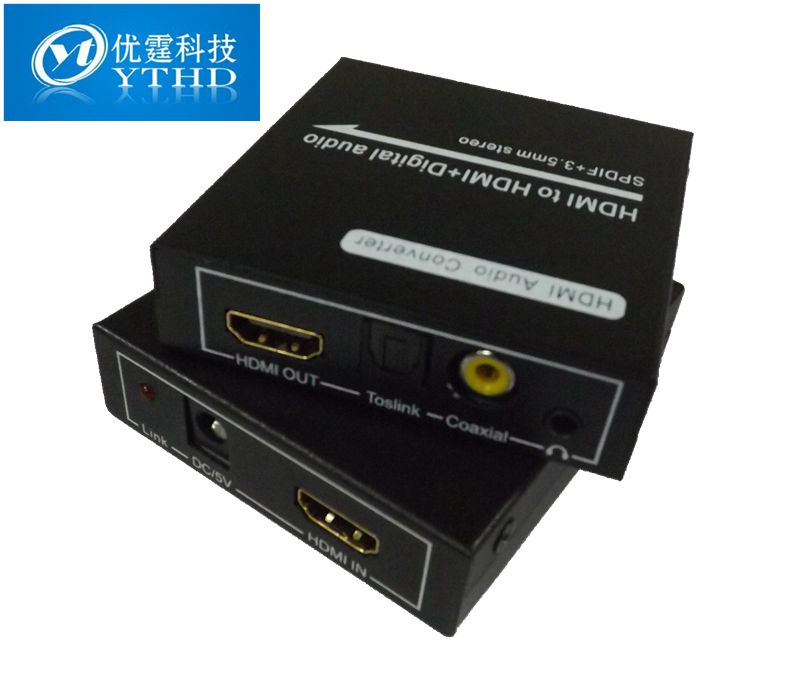

The YT-HD01 converter allows the HD Source connected to single HD Display and adds extra one 3.5/ L+R and SPDIF /COAXIAL audio out port.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES:
1. One HDMI input converted to one HDMI+ Audio (SPDIF+3.5/ L+R +COAXIAL) output
2. Output audio support: SPDIF+3.5/RL+COAXIAL analog Audio Output
3. Input Resolution: Up to 1080P(50/60Hz)
4. HDMI to achieve the synchronization of audio signal separation. Automatic identification
2.0CH / 5.1CH Two kinds of audio mode options
5. LED indication: When source or sink is working, LED relative to is light.
6. No loss of quality
7. Installs in minutes
8. Need DC 5V/1A power supply
The accessories with the machines lists as picture:
1. DC 5V USB power adapter
2. User manual
3. 3.5mm audio to L/R channel cable
4. Optical cable 1m
5.1. 4V HDMI cable 0.8m
Operating and Connecting:
1. To use one hdmi cable to connect the HD Source with the input HDMI port.
2. To connect the converter hdmi output port with the HD Display.
3. To use one audio cable to connect the converter 3.5 stereo (L/R) port with the audio equipment.
4. To use the optical cable to connect the SPDIF/COAXIAL port with the audio equipment.
5. To connect the converter with 5V DC USB power adaptor.
SPECIFICATIONS: YT-HD01
HDMI resolution...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format...24bit/deep color 30bit, 36bit
Audio output...SPDIF+ COAXIAL +3.5 stereo /L/R)
Max bandwidth...225MHz
Max baud rate...6.75Gbps
Input/Output TMDS signal...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal...5Volts p-p (TTL)
Input cable distance...≤ 15m AWG26 HDMI standard cable
Output cable distance...≤ 20m AWG24 HDMI standard cable
Max working current...500mA
Power adapter format...Input: AC TO USB (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range...(-15 to +5centigrade)
Operating Humidity range...5 to 90%RH (No Condensation)
Dimension (L x W x H)...77.2 X72 X20 (mm)
Weight...150g
Notes:
Please use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Please hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Please turn the power off when the machine is not used for long time.
6. Please do not open the cover and do not touch the inside parts.
7. Please use the original factory power adaptor.
Before power on, Please check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
|
Serial NO |
Trouble Description |
Cause and Ways to deal with |
|
1 |
Non-Power-Connected |
1.Check if the power adaptor head is truly and correctly inserted the power socket. 2.Check the power switch if it is in on status. |
|
2 |
No Picture |
1.Pls to make sure that the TV is on and has been connected with the machine.
2.To check if the signal source is on and well connected.
3.Check the system connection quality.
4.Check if the line is all good quality.
5.Check the cable quality |
|
3 |
Obscure Picture |
1.To try again to connect the cable to be free from the unsuccessful connection. 2.HDMI Cable Quality |
|
4 |
No sound |
1.Please confirm the setting position of audio mode switch |
ShenZhen YouTing Technology Co., Ltd is one company that focus on research, production, and sales of 3D splitter, switcher, matrix, extender, converters, optical transceiver, the wireless transmission equipment and various of HDMI, DVI, VGA, AV, YPbPr interface supporting wire and equipment.
Our products were wisely used in radio and television, audio and video system integration, IT industry, engineering, security monitoring system of form a complete set HD DVD player products, high-definition TV makers demonstration and smart home products, military communications and other industries.
YT Technology as the pioneer of new AV products, we will delivery the goods to global market through electronic business forum. It has passed the CE/FCC/RoHS test and can supply excellent pre-sales/after-sales service. Now the YT Tech has kept good cooperation with the branded IC Chips/Solution company and has good fame at the Europe/America/Asia area. Welcome the masses of trader, franchiser, TV manufactures, engineering business, hotel, bar AV project engineering, etc., to inquire mutual aid, cooperation.
