| Prod Model: |
HDCA03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Material: |
Metal Housing |
| Power: |
5V/1A |
| Certifications: |
CE,FCC,RoHS,ISO9001,Reach,HDMI Adopter,Hdcp |
| Accessories: |
User Manual, Power Adapter |
| Audio: |
Coaxial, 3.5mm Audio, Optical |
| HDMI Port: |
1 |
| HDMI Version: |
1.4b |
| Warranty: |
1 Year |
| Availability: |
1000PCS in Stock |
Product Description

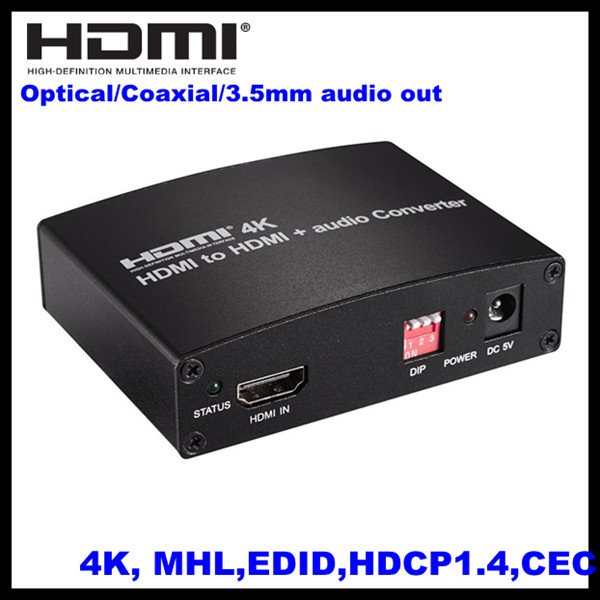

HDMI to HDMI+audio converter
4K HDMI to HDMI+audio converter
This HDMI to HDMI+audio converter converts the HDMI video signal to displayer/projector, and converts the stripped HDMI audio signal via the digital Optical/ Coaxial/3.5mm audio output to amplifer or speaker ,So that audio and video can be separated. the resolution of this converter can be up to 4096X2160/30Hz
Features:
l Support HDMI1.4/HDCP1.4
l Support 3D video format
l Support highest resolution to 4096X2160
l Support the max baud rate of 3G and the TMDS clock is 300Mhz
l Support 8/10/12 bit deep color
l Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 15 meters,output up to 15 meters.
when the resolution is 4K, input up to 10 meters, output up to 10 meters.
l Support CEC control
l Support MHL2.0
l 5V/1A power adapter
Specifications:
HDMI version | HDMI 1.4 |
| HDMI resolution | up to 4096*2160 |
| Support video format | 8/10/12 bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 300MHz |
| Max baud rate | 3 Gbps |
| Input cable distance | (1080p resolution)≤15m, (4K resolution )≤10m AWG26 HDMI standard cable |
| Output cable distance | (1080P resolution)≤15m,(4K resolution)≤10 AWG26 HDMI standard cable |
| Max working current | 1A |
| Power adapter format: | input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A |
| Operating Temperature range | (-15 to +55ºC) |
| Dimension (L x W x H) | 65x88x24 (mm) |
| Weight | 130g |
Connection and Operation:
1: Connect the UHD signal source to this converter with one HDMI cable.
2: Connect this converter to the display with one HDMI cable.
3: Connect 5V/1A power adapter to the converter.
4: Keys operation:Reset key is the key for system reset.
5: DIP:EDID management.
