Prod Model: |
Indoor Full Color LED Video Display |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
240mm*120mm*10mm |
Module Weight: |
0.18kg |
Module Resolution: |
120dots(W)*60dots(H) |
Pixel Configuration: |
1r1d1b |
Package Mode: |
SMD2121 |
Install: |
Fix Install or Rental Install |
Cabinet: |
Iron / Aluminun /Die-Casting Aluminum etc |
Payment: |
T/T Western Union |
Delivery Time: |
10-15working Days |
Warranty: |
2 Years |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Configuration: |
1R,1G,1B |
Display Type: |
LED Video Display |
Application: |
Super ,Market ,Concert |
IP Rating: |
IP43 |
Certification: |
FCC ISO |
Pixel Pitch: |
2mm |
Pixel Density: |
250000dots/M2 |
Scanning Mode: |
1/24scan |
System Operating Platform: |
Win98/2000/Nt/XP |
Product Description

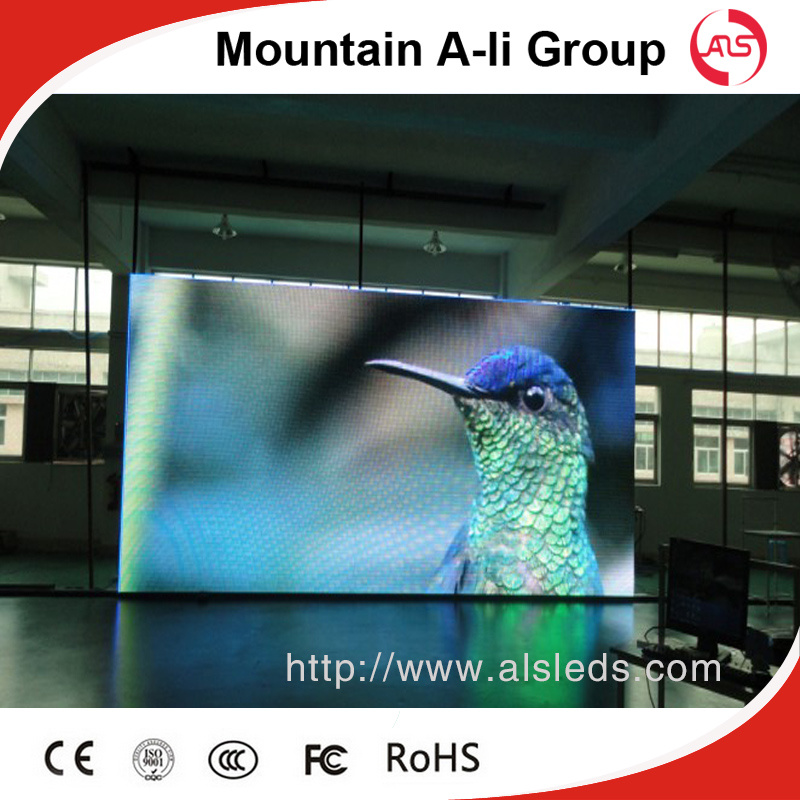

HD P2mm Indoor Full Color LED Video Display
Product Features :
1.Energy saving design, good cooling system, high definition, high cost, outstanding reliability and
2: complete function by the majority of new and old customers favorite
3:.Ultra-high refresh rate, support the camera recorder, to ensure a clear picture quality
4.Quick editing of assembly, disassembly system, saving unloading time
HD P2 indoor led billboard with factory price techincal parameters |
Unit Module | Item | parameter |
Model | ALS - P2 - 24S |
Module size | 240mm*120mm*10mm |
Pixel Pitch | 2mm |
Pixel Density | 250000dots/m2 |
Pixel Configuration | 1R1G1B |
Package mode | SMD2121 |
Module Resolution | 120dots(W)*60dots(H) |
Max power consumption | 18w |
Module Thickness | 14mm(without magnet) 25mm (with magnet ) |
Module Weight | 0.18kg |
Driving Method | Constant Current Driving |
Scan Method | 1/24scan |
Interface Way | HUB75E |
Brightness | ≥1500cd/m2 |
Unit Module | dimension | 480mm*480mm*98mm |
Quantity of Module | 8 |
Thermal discharge | fan 2pcs |
Power supply Mode | 5V/40A* 2pcs |
Pixel per cabinet | 240mm*240mm |
Thickness | 98mm |
Optimal Viewing Distance | 2M-10M |
Optimal Viewing angle | 160°(W)120°(H) |
Enviroment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
Power | Relative Humidity | 20%-90% |
Operating Voltage | AC220V±10% |
Average power consumption | ≤200W/m2 |
Max power Consumption | ≤300W/m2 |
Current | ≤20mA (Single LED ) |
Control system | CPU | Pentium4 or above P4 or above |
Operate system | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
Main technical parameter | Driving Device | IC Constant current driving |
Refresh Rate | ≥400HZ |
Gray/Color | RGB each 256 grade, can display 16.7M clolor |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768 |
|
Using Range:
1 :Widely used in a variety of needs large hall, sports arena, banking, telecommunications, government
2:agencies, terminal,pier, railway stations, the stock market and other trading market, medical systems,
3:eletric power, galleries and other publicity, advertising, information diseemination, the guide places.
Why choosed us:
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system
4.ISO9001,CE , CCC,ROHS Certificates
Trade Terms:
1.Packing: Anti-shaking wooden cabinet /Air flight case/carton
2.Shipping port: Shenzhen. China
3.Shipping freights are quoted according to your requests
4.Delivery time:10-15 working days
5.2 years warranty ,lifelong maintaining.
After-sales service:1. Service principles:Reponse in time, solve problems as soon as possible and ensure the use.Top
quality+reasonable price+responsible after service=successful & win .
2. Service period:In the Maintenance period of the LED screen body, free of all maintenance charges;
After Maintenance period, only charge the material costs fees free of manual work fees.
3. Service scope:If the users find any problem that cannot be solved, please contact with our company, we can
response in 24 hours.In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4. Under normal use and storage, Our Company will be responsible for the equipments .Special service for big
project, such as stadium, exhibitions, squares and so on .
Pre-sales service:
1.Our company can arrange professionals to conduct site installation and debugging in strict accordance with the
requirements of the schemes and the original manual.If there is any special requirement, it is necessary to make
changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence of
completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with
client to find solutions.
2. Our company can train the users based on the manual.The training include system use, system maintenance
and equipment protection
3. Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.4) Under normal use and storage, Our Company will be responsible for the equipments .Special service for big project, such as stadium, exhibitions, squares and so on .
Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual.If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence of completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual.The training include system use, system maintenance and equipment protection
3) Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.
on of millions of viewers.
HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
