| Prod Model: |
LW-FI 2.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2.5mm: |
Small Pixel Pitch |
| RGB: |
HD Video Screen |
| Advertizing: |
Indoor Rent |
| Light Weight: |
5kg Per Panel |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
ETL |
| Pixel Pitch: |
2.5 |
| Pixel Density: |
160000 |
| Scanning Mode: |
1/30 Scan |
| System Operating Platform: |
Window7 , 8 etc |
Product Description
Function and Technology Character:

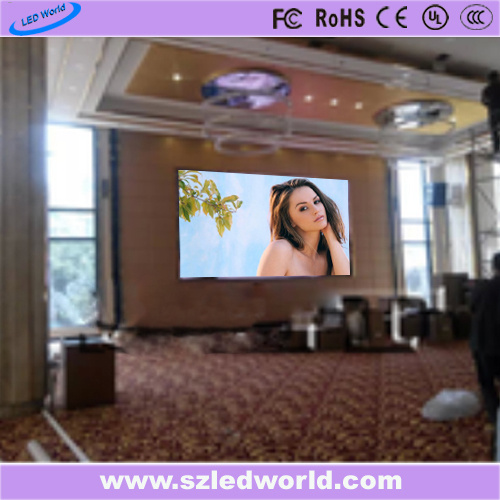

(1) 160000 pixels/M2 A full HD led video wall an amazing element for fashion show and international conference.
(2) Light weight cabinet:5.6kg/Unit(400x300mm),considerably save your cost on installation and transportation.
(3) Super slim depth:It is feature with only 50mm thickness of display board and sylish aluminum frame design.
(4) High strength: Die-casting aluminum materials plate well improves heat dissiation and extraordinarily maintains ideal lifespan.
(5) Advanced R&D technology and reliable components ensure its outstanding performance of high grey scale & refresh rate.
Parameters |
UHD LED Display Series |
| Pixel Pitch (mm) | 1.56mm | 1.92mm | 2.5mm |
| Pixel density(pix/m2) | 409600 | 270400 | 160000 |
| LED Type | SMD1010 | SMD2020 |
| Viewing Angle | H 160°,V 160° |
| Drive Method | 1/32 | 126 | 130 |
| Color Depth(nits) | ≤800 | ≤1000 | ≤1000 |
| Color Depth | 16bit |
| Refresh Rate(Hz) | ≥2000 |
| Module Size(mm) | 200×150×3 |
| Cabinet Size(mm) | 400×300×75 |
| Cabinet Material | die casting aluminum |
| Cabinet weight(kg) | 5.6 |
| Voltage | 110/240V |
| Average.power(W / m2) | 400 | 370 | 330 |
| Max.power(W / m2) | 1200 | 1100 | 1000 |
| IP Grade | IP31 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| CompliantStandard | CCC,CE |
