| Prod Model: |
BD-318 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Resolution: |
1920×1080 |
| Frame: |
240f/S |
| HDD Memory: |
Max. 2tb |
| SSD Memory: |
Max. 512MB |
| Video Output: |
WiFi Connection with PC or Smartphone |
| Power Input: |
8-32 V |
| Special Function: |
3G/GPS |
| Compression: |
H.264 |
| RS232: |
2 |
| RS485: |
1 |
| Compression Format: |
H.264 |
| Brand: |
Brandoo |
| Interface: |
WiFi Output |
Product Description

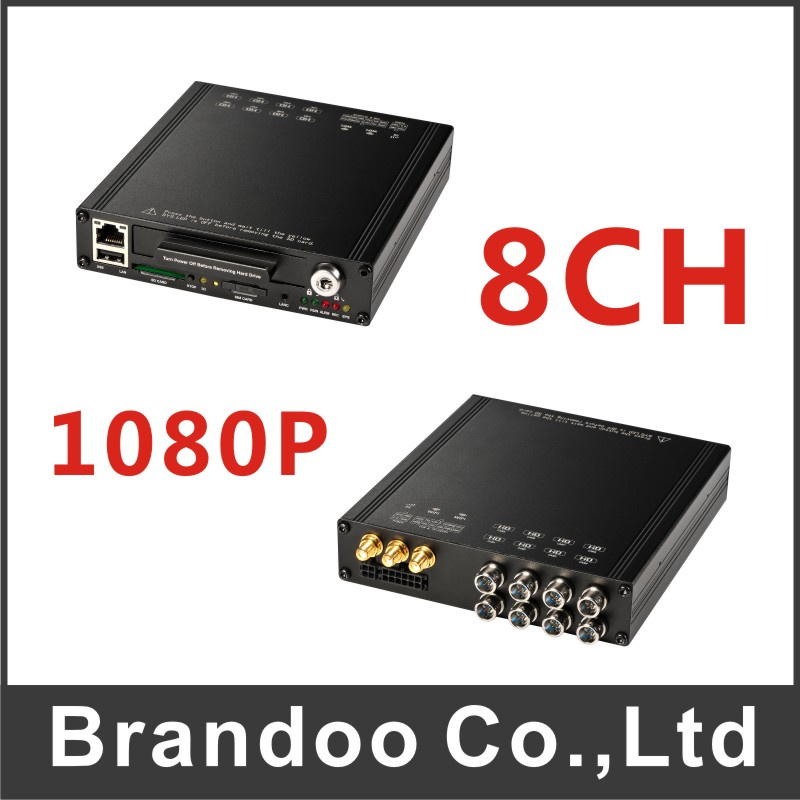

This is a 8 channel 1080P Mobile DVR works with 30f/s real time recording for each channel. The DVR support HDD or SSD memory to use, 3G/GPS/WIFI are available for special used.
Features:
> 2TB HDD / 512MB SSD memory available
> 1080P video resolution for 8 channels
> 30f/s real time recording for each channel
> Language for menu can be customized
> Video output to laptop or smart phone by WIFI
> 3G/GPS function available
> APP for cell phone used (developing)
Specifications:
| Item | Description | Parameter |
| System | Language | English (Customized available) |
| Interface | IE Interface |
| Security | Administrator and user password protected |
| Video | Video Sensor | 1920×1080, 1/3'' progressive scan cmos,1/2/4channel |
| Video Standard | 1920×1080, 30fps |
| Audio | Audio Input | 1/2/4/8 channel audio input |
| Recording mode | Audio and video synchronize |
| Compression | AAC |
Storage
| Video Compression | H.264 High Profile |
| Resolution | 1080p at 240fps |
| Video bitrate | 1080p: 200Kbps ~ 8Mbps |
| Audio bitrate | 8KB/s |
| Storage | 2TB HDD/ 512MB SSD |
| Format | AVI |
| Sensor | Sensors | 1 speed sensor, 1 ignition sensor, 3 common use sensors |
| Communication | WiFi | 802.11b/g/n, max 300M |
| Network | RJ45,10M/100M Lan port |
| COM | Two RS232 connector and one RS485 connector |
| GPS | supported |
| Software | Player | |
| 3 rd party player | VLC media player,Storm player,WINAMP |
| Firmware update | Via SD card or USB disk |
| Power | Power input | DC:+8V ~ +32V |
| Power output | [email protected];+5V@1A |
| Power consumption | Less than 5W ;less than 0.1W in standby mode |
| Working temperature | -10c ~ +60c |
| Dimension | DVR size: 9.7CM(Width)×2.6CM(Height)×11.6CM(Length)
Housing size: 10.3CM(Width)×2.8CM(Height)×15.1CM(Length) |
Brandoo Co., Limited, was founded in 2007, we mainly focus on mobile DVR systems, and car safety solutions, and SD card type recorders in Shenzhen, China.
We have over 6 years experienced in design, manufacture, marketing and sales of mobile security products, especially for SD card recorders and 2CH car MMS alarm system, we are patent owner of them. Anyway, we still a young team, so, we are great-hearted and brave to face any problem and troubles.
We always study from our customers, because we want to establish a long term cooperation ship with you. We are not only business partner, we hope we are good friend also when you know us. We also hopes that we can go better and better together!
Why will you choose Brandoo
If you like our products, just tell our staff and you will get answers soon.
We are not always have a special products, or have a very good price. But we will face all of your questions and answer you actively, and try our best to help you solve all problems.
If you do not like our products, just let us know what products you are looking for, our staff will try best to help you find a supplier and let you know the contact information.
