Hard Ice Cream Freezer Machine Maker
| Price: |
US $ 13000-18000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
BNJ-300B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R404A |
| Application: |
Ice Cream |
Product Description
Application
BNJ series Ice-cream freezing machines are the ideal equipments for large-scale and continuously soft ice-cream production. Mixing and froze the material and air to make ice-creams, it can produce high quality ice-creams continuously and automatically, which will help reduce the cost in processing.
System

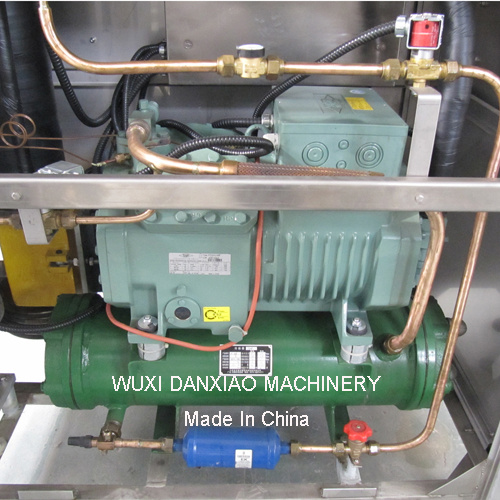

BNJ series Ice-cream freezer is equipped with independent refrigeration system, and adopts international famous brand of semi-closed compressor, valves and other parts. Special made evaporator with good refrigeration effect to make product quality stable. The pneumatic pump for material transportation is imported frequency transformer for regulating the speed. The machine is easy for operation, and it can be conveniently assembled and unassembled for cleaning.
Operational principle
Ice-cream material and air inlet the freezing drum through the feeding pump, and Freon compressor will start refrigerating. Scraper inside freezing drum begin to mix the material and air, and stainless steel blade will scrape the frozen ice-cream on the internal wall, then ice-cream will be out through the discharge pump.
|
NO. |
Parameters |
Unit |
Value |
|
1 |
Feed temperature(No more than +4°C) |
°C |
+2~+4 |
|
2 |
Discharge temperature |
°C |
-5.5 |
|
3 |
Maximum capacity(expansion rate 100%) |
L |
300 |
|
4 |
Cooling Capacity(+30°C/-30°C) |
W |
8700 |
|
5 |
Refrigerant |
|
R404 |
|
6 |
Condensate Flow
(+15°C/-+18°C,Maximum Pressure0.1Mpa) |
m3/h |
1 |
|
7 |
Motor capacity |
Mixing pump motor
Stirring Motor scraper
Compressor Motor |
Kw |
0.75kw/1390rpm |
|
Kw |
3kw/960rpm |
|
Kw |
5.5kw/1450rpm |
|
8 |
Dimensions(L×W×H) |
mm |
830×1380×1600 |
|
9 |
Net Wight |
kg |
680 |
Wuxi Danxiao Machinery Co., Ltd. is a professional manufacture in the field of ice cream machinery. Our products, especially ice cream extrusion line, ice cream filling machine, stick ice cream machine, ice-cream freezing machine etc, have won good reputation among our customers.
Danxiao are equipped with advanced processing equipments (like CNC lathe), strict testing and inspection standards and has a number of technical experts with years' of manufacturing experiences who can supply strong technical support and enable "Danxiao" to supply series of high quality ice creams machine. Complete quality management system, warm and thoughtful after-sale services always help us provide customers with high-quality products and first-class service and to make each of our equipment to bring our customers with maximum benefit which proved that "Danxiao" is your wise choice.
With decades of experience in designing and manufacturing ice-cream equipments, Danxiao has developed into a leader in ice cream machine industry. However, we still keep researching and developing new products so as to go up to a new stage, and to meet the increasing demands of international market. With the faith of "Fineness & Perfection", Danxiao" desire to cooperate with you for mutual development.
