| Prod Model: |
BTH-003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Talk Range: |
100 |
| Operation Range: |
10m |
| Mic Type: |
DSP Noise Cancellation Mic |
| Standby Time: |
500m |
| Talking Time: |
20 Hours |
| Battery: |
Li-Polymer Battery (1600mA/3.7V |
| Type: |
Bluetooth Wireless Speaker |
| Amplification Type: |
Passive |
| Speaker Material: |
Plastic |
| Usage: |
Zello APP |
| Interface: |
RJ-45,RJ-11 |
| Sound Channel: |
2.0 |
| Color: |
Black |
| Special Function: |
With Remote Control |
| Compatible Product: |
Universal |
| SNR: |
-90db |
Product Description

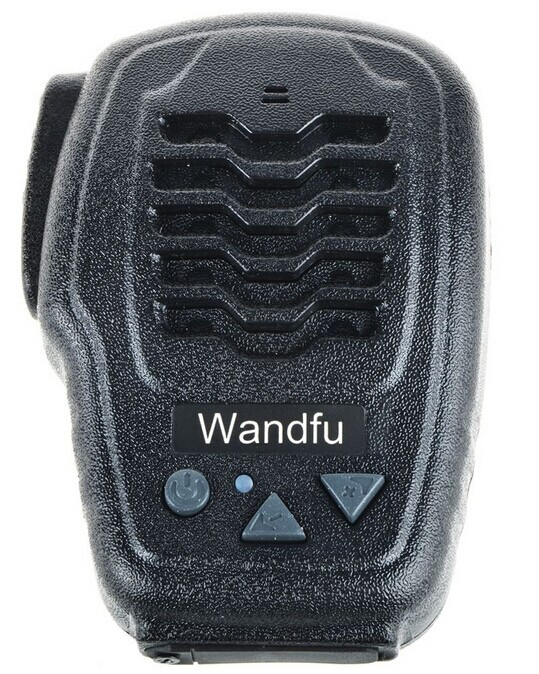

BTH-003 Specifications:
Bluetooth Shoulder Micphone BTH-002
1. DSP noise supression & Echo Cancellation
2. BT 3.0 Class 2 AGHSP, AGHFP Profiles
3. PTT button supported
4. Waterproof
Feature of BTH-003 PTT Bluetooth microphone, wireless Bluetooth speaker:
1. Bluetooth V3.0 HSP, HFP, A2DP, AVRC Profiles Supported
2. Can connect with mobile phone for calls handling and stereo music
3. Switch to mono and stereo
4. Push-to-Talk PTT button support control to Bluetooth adapter/dongle
5. Can connect with various radio Bluetooth adapter/dongle
6. Support 3.5mm headset connector
7. DSP noise suppression and echo-cancellation, Crystal Voice Quality
8. Compatibility with various mobile phones
9. Connect to two way radio and mobile phone at the same time, priority setting
10. Volume up/down independently tunable
11. Firmware USB upgrade available.
12. Four-Button Operation
13. Long life lithium battery (1600mA/3.7V)
14. 12 hours Talking time
15. 300 hours standby time
16. 1 year warranty
Our product can pair all kinds of smart phone which support BT profiles to realize handsfree function, one can answer, reject, hang up calls, and also enjoy music. Moreover, it has PTT button, which can connect with bluetooth dongle/adapter,and realize wireless PTT talking, and has the micro-USB port and 3.5mm headset jack, which support multiple types of headphone.
Technical Specification
Product Name
Bluetooth Microphone
Model
BTH-003
Microphone Type
DSP Noise Suppression MIC
Bluetooth Version
V3.0 Class 2
Module
DK_208M
Chip
CSR BlueCore5MM
Bluetooth profile
HSP, HFP, A2DP, AVRCP
RF Power
10dB
RF Frequency
2.4~2.4835GHz
Operate distance
10 Meters
Charging time
3.5 h
Music play
12 h
Talking time
20 h
Standby time
500 h
Battery Power
DC5.0V/500mA
Battery type
1600mAh Lithium-ion polymer rechargeable battery
Working voltage
3.3-- 4.2V
Weight
0.13kg
Color
Black
Working Temperature
-15ºC~50ºC
Storage Temperature
-25ºC~60ºC
Compatible with
Various brand mobile phones, GPS navigators
