| Prod Model: |

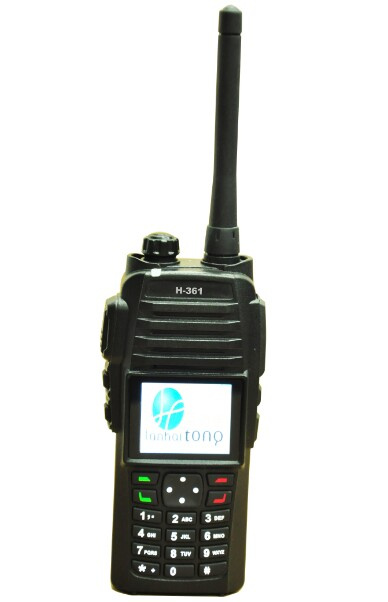

H361 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Talk Range: |
8km Max |
| Usage: |
Commercial, Home |
| Battery Type: |
Lithium Battery |
| LCD: |
with |
| Battery Capacity: |
1800mAh (Li-ion Battery) |
Product Description
Technical Parameters:
Frequency range: (400-470) MHz
Channel Numbers: 256
Channel Space: 12.5kHz
Operating Temperature: -25~+60 centigrate
Antenna Impedance: 50Ω
Microphone Impedance: 2kΩ
Battery: Li polymer battery, DC 7.4V ± 20% 1500mAh
Sensitivity: 0.25μ V (narrow)
Adjacent Channel Selectivity: ≥ 60dB
Inter-modulation Immunity: ≥ 60dB
Spurious Rejection: ≥ 60dB
Frequency Stability: ± 2.5ppm
Max Frequency Deviation: ± 2.5kHz
Audio Frequency Response: ± 3 dB
Mainly Functions:
Display clock
Simulation tone/ Digital tone
Tail tone elimination
Monitor Function
Digital-analog hybrid VOX scanning function
VOX Function
TOT (Transmit Time-Out Timer) protection
Channel lockout
Support digital mode, analog mode, repeater mode (optional)
Address list, Call records
PTT default contact(group)call
General call, group call, individual call, emergency call
Manual dialing
Digital voice encryption
GPS position
Kill radios, relive radios
Working status inquiry
Digital energy saving mode
Editable message, preset shortcut SMS
Ring tone of coming call, SMS TTS reminding
Assistant tool: Calculator, calendar, memorandum, notebook, alarm clock, etc.
