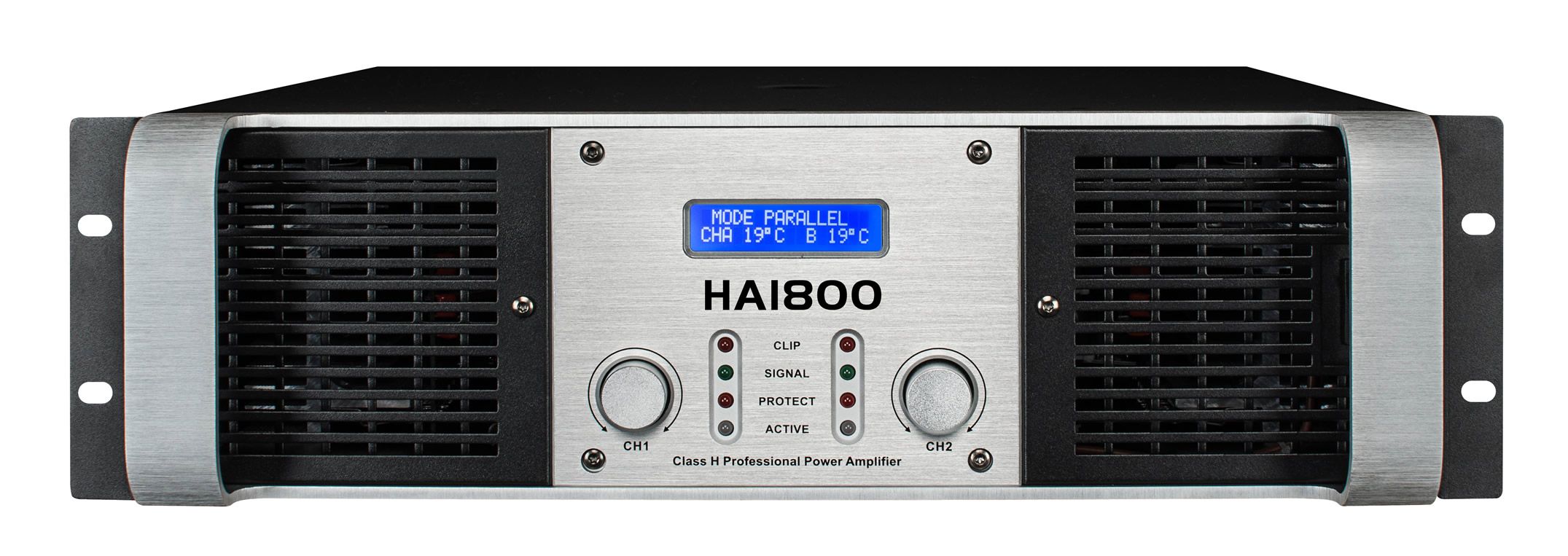

Ha Series 3u Panel with LCD Display Power Amplifier
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HA1800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Watt: |
400W |
| Height: |
3u |
| Type: |
Professional Amplifier |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
HA Series 3u Panel with LCD Display Power Amplifier
HA series power amplifier specification| Model | HA1500 | HA1800 | HA2200 | HA2600 |
| Stereo power 8Ω | 2x750W | 2x900W | 2x1100W | 2x1300W |
| Stereo power 4Ω | 2x1100W | 2x1350W | 2x1800W | 2x1950W |
| Stereo power 2Ω | 2x1500W | 2x1800W | 2x2200W | 2x2600W |
| 8Ω BLT | 2250W | 2700W | 3900W | 3900W |
| 4Ω BLT | 3000W | 3600W | 5200W | 5200W |
| Frequency Response | 5-20K+/-0.5dB | |
| THD+N | <0.05%@8Ω 1KHz 1/4Po |
| S/N Ratio | >99dB >100dB >102dB >104dB |
| Slew Ration | 30V/u S 35V/u S 20V/u S 20V/u S |
| Damping Factor | >400 >400 >300 >300 |
| Crosstalk | >60dB@8Ω 1 KHz |
| Input Impendance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Protect | Overheat short circuit,DC,limit and-softstart,Output relay-zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 35KG | 38KG | 40KG 41KG |
| Packing Dimensions | 650x585x200mm |
Features:1.HA series power amplifier can be switched between stereo and mono mode
2.With work model and temperature display
3.DC,AC or vacant ground can be chosen freely.
4.Mature circuit and excellent production,use 3 tier class H circuit
5.Wide frequency response,low distortion so that the voices are more accurate .
6.Multiple sound protection such as over-current,over-voltage,over-temperature,overload,DC and so on.
7.Efficient power management,make the machine more environmental and safe.
