| Prod Model: |
GS-668 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Gold |
| System: |
Receiver and Microphone |
| T.H.D: |
<0.4%@1kHz |
| S/N: |
>108dB |
| Style: |
Handheld Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Mono |
| Wireless Technology: |
UHF |
Product Description
GS-668 Professional Wireless Microphone transmitter description
1.200 UHF frequency response can be choosen, antenna stagewise anti-interference operation.
2.Use solid aluminum material ,much comfortable
3.IR infrared ray ,automatically match when press the "SEND" button
4.Stable PLL circuit and mute control function,can protect it from the interference of computer ,KTV and DVD
5.Adopt international standard half U metal crate and the bright LCD screen display
6.The life of battery is twice times of the normal microphone
This series is designed for senior KTV room,it is the strongest,most stable transmitter, definitively have a best performance in all rough condition.
Specification

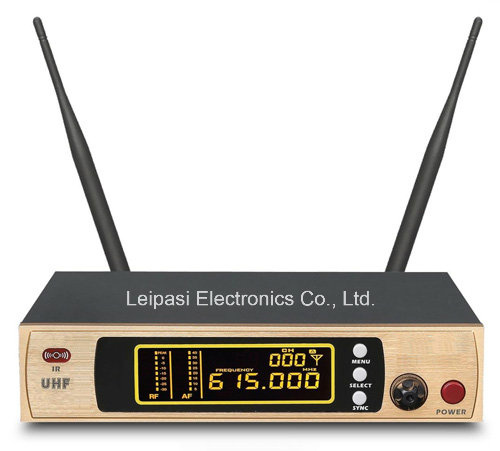

| GS-668 receiver |
|
|
| Crate specification | EIA standard half U |
| Channel number: | Mono |
| Frequency stability: | +-0.005%,PLL |
| Carrier band: | UHF 660--830MHz |
| Modulation system: | FM |
| Working effective range | Normally 50m(in open area) |
| Oscillation Mode: | PLL |
| Frequency bandwidth: | 60Mhz |
| Maximum deviation degree S/N: | >108dB |
| Totally THD: | <0.4%@1KHz |
| Totally frequency response: | 65Hz--18KHz+-3dB |
| Power supply: | 100-240V AC50/60 hz,10W |
| Weight: | 4.3KG |
| Size: | 210(W)x43(H)x206(D) |
| GS-668 swing microphone |
|
|
| Carrier Band: | UHF660-830MHz |
| Oscillation Mode: | PLL |
| Harmonic radiation: | <-63dbm |
| Frequency band: | 60Mhz |
| Maximum deviation degree | ±45 KHZ |
| RF power output: | 8mW;8mW/15mW(Selectable) |
| Battery | AAx2 |
| Current drain: | 90mA |
| battery life: | About 6 hours |
| Our Advantage | 1.We are professional audio factory, so we can provide the compitive price to you.
2.we focus on middle and high-end items and ensure every product made by the the superior material. we have strict quality control system to avoid quality problems.
3.There are many types you can choose ,if you have you own designed idea,we also accept the OEM order
4.Little order is availiable |
| The Sample | About the sample, buyer need to charge the sample and freight fee. |
| The Shipping | 1.Express
2.Air shipping
3.Sea shipping |
| The Lead-time | 1.Small order and sample:5-7days
2.Big order:30-45 days |
| Payment | T/T (T/T:30% deposit before producing ,the balance paid before shippment) |
Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.
Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.
We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.
There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.
OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.
It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
