Grf 18" Subwoofer+Amplifier+Processor Outdoor Concert Sound System
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,Western Union |
Prod Model: |
SR1000/SR18/3D300/D412 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
PRO Audio |
Color: |
Black |
Subwoofer: |
18 Inch |
Operation Mode: |
Wire / Remote Control |
Speaker Material: |
Wood |
Certification: |
CCC |
Application: |
Stgage/Conert/Conference |
Monitor: |
No Display Screen |
Product Description

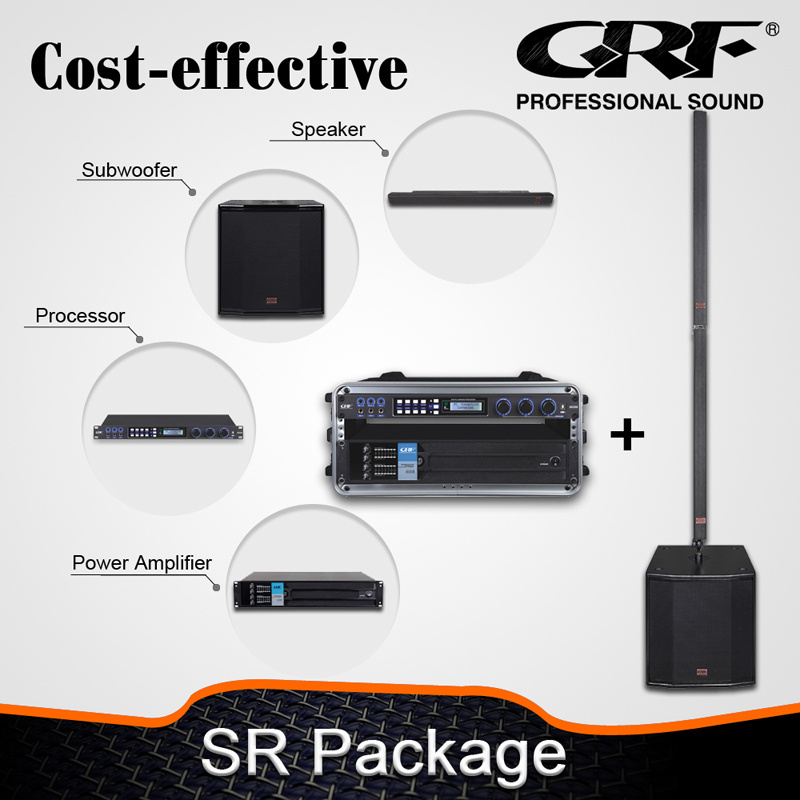

SmartRay Passive Version :- SR-18 + SR1000 as a passive speaker package enables different types of application. The extenal amp+procssor Rack is ideal solution for the package
Extenal amp is 4CH X 600W, and the Processor allows 4 microphone inputs , effect, EQ etc...
SR1000 specification:
Type
SR1000
Frequency response
150Hz~18KHz
Power handling
200W
Peak power
800W
Sensitivity
95dB
Max. SPL peak
116dB~122dB
Dispersion
120 H x35V
Components
2" Neodymium x16
Nominal impedance
8ohms
Input connectors
2xNeutrik NL4
Suspension
SmartRay Custom made
Enclosure material
Aluminium
Finish
piano coating
Dimension(HWD)
1000x55x70mm
Net weight(kg)
3.8kgx2
SR18 subwoofer specification:
Model
SR18
Type
18" subwoofer
Frequency response
28Hz-120Hz
Power handling
400w/1600w
Sensitivity
102dB
Max. SPL peak
139dB
Nominal impedance
8ohm, +1/-1
Input connectors
2xneutrikxnl4mp
Enclosure material
Birch plywood
Finish
Textured black paint
D406 power amplifier specification:
8 ohms Stereo Power
4X600W
4 ohms Stereo Power
4X1200W
Input connetor
XLR female
Input impedance
20k ohms balanced
Input Sensitivity
0.77V 1.44V
Input CMRR
>80dB
Output connector
Speakon
Hum&Noise
>112dB
Damping Factor
>1000 @ 8Ω
THD
<0.1% (20Hz-20kHz 1W)
Frequency Response
20Hz 34KHz,(+0/-0.3dB, 1W/8ohms)
Level control
front level meter, from negative infinity to 0dB
Cooling
variable speed fans, front to rear airflow
Power Requirement
AC voltage 180-240V 50-60Hz
Amplifier dimensions
88mmX488mmX438mm
Packing dimensions
15 0mmX 600mmX550mm
Net weight(kg)
12.9
Gross weight(kg)
16
3D300 processor specification:
Front Panel
USB port
connect the computer with the PC software to control the device
Effect/ Mic/ Music Master Volume Adjust
Control effect and Mic Music volume
LCD Display
Show all the operation menu
Main Menu Control Button
Edit Mic Music Effect L R Aux Center Sub save and recall user and factory preset
Mic Input Jack
insert Mic1 2 3 input signal
Mic Input Gain Control
Control Mic 1 5 input gain
Rear Panel
Power Cord
Power input:AC~90-250V,50-60Hz
RS232 Interface
Connect with PC/KTV, remote control
Stereo AUX,center,sub woofer output
Connect with stereo AUX,center, sub woofer amp system
Main output
L/R balanced output, connect with main amp system
Media input and output
media and audio in-phase input and output system
Audio Input
DVD,TV,AUX,BGM audio input port, can be switched to automatic or manual
MIC4/5 Input Socket
MIC4/5 input socket, suggest to use this when connect with wireless Mic.
