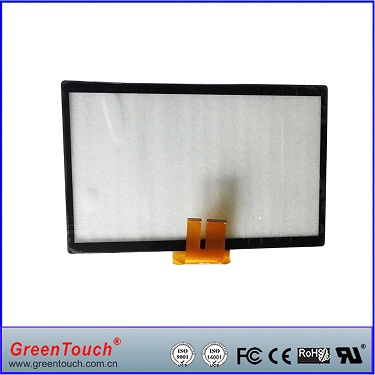

Greentouch Capacitive 32inch Multi Touch Screen with USB Port Support Android

Prod Model:	GT-PCAP32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	32inch
Touch Point:	Multi Touch 10 Points
Interface:	USB
Thickness:	3.3
Structure:	G+G
Type:	Projected Capacitive
IC Controller:	Eeti
Model:	Gt-CTP-P32
Supportive OS:	Windows,Android,Linux,Mac
Usage:	Kiosk,Touch Table
Screen Size:	30-40 Inches
Aspect Ratio:	16:9
Application:	Public Information Inquiry System
Screen Type:	Capacitive
Customized:	Customized
Resistive Touch Screen Type:	Capacitive

Product Description

Product Description:
Green Touch now developed a single point and multi-point capacitive touch screen, mainly in G + G
and G + P structure-based, covering the 5 inch to 32 inches (supports customizable), supports 10-touch,
slide, flip, etc. function. 10 real touch points to support handwriting, pen function, the focus for
educational, medical, computer machine, automotive and other industrial applications.

Product Category:

Size	Thickness(mm)	Application IC	Structure	Interface
5-10.1''	1.25	SLV,FT	G+P/G+P/G+F/G+F+F	I2C/USB
10.4-32''	2.0-3.3	EETI/EM	G+G/G+P	USB/R232

System Type:

Size	Windows XP	Win7	Win8	Android	Linux	MAC
5"-10.1"	/	Support	Support	Support	Support	/
10.4"-32"	Support debug	Driver free	driver free	Support debug	Support debug	Support debug

Product Applications:
* Consulting appliances
Electronic watches, electronic manual, Tablet PC, PDA,
MP3, MP4, tablet
* Communication Equipment
Online game console, STB video phones, fax machines, telephones, smart phones, GPS
*  Household appliances
Portable LCD TVs, air conditioners, refrigerators, computers, one machine, audio-visual and home
appliances by remote control
*  Entertainment equipment
Keyboards, handheld amusement machine, languages learning
*  Medical Equipment
Electronic blood pressure monitors, electronic thermometers, electronic scales
*  Equipment
Multimeter, logic analyzer, decibel meter, photometer


Product advantages:
*  Antistatic ability, aesthetic design
*  Touch intensity small, high transmittance
*  Support for USB Interface
*  High definition, waterproof, fog
*  Support for single and multi-point touch

Product Specifications:

Dimensions	32"
Structure	G+G/G+P
Drive mode	COB
Proportion	16:9
Thickness	1.25-3.3mm
Surface hardness	6H
Transmittance	>90%
Working temperature	-30 ºC ~ +75 ºC
Storage temperature	-40 ºC~ +85 ºC
Humidity	90% at 60ºC
Linearity	1PT:+/-1mm,10PT:+/-2.5mm
Touch life	> 100,000,000 times
Maximum resolution	4096×4096
Maximum support points	Max,10 points
Controller Type	PCBA control board
Connection	I2C/USB/RS232
Host Interface	USB, 4 wire, 2.0 Full speed
Operating Voltage	USB 5VDC
Power consumption	Active Mode:<30mA,Idle Mode:5mA
Oscillation frequency	12MHz
Reaction time	<10ms
Read speed	100 MHz
Antistatic air discharge	8KV
Antistatic. Contact Discharge	4KV
Adapter ripple	Vpp<50mv
