| Prod Model: |
TOMY15082510 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Technics: |
Cog |
| Display Content: |
128*64 Dots |
| Display Type: |
Stn,Positive,Transflective |
| Driver Method: |
1/65duty,1/9bias |
| Viewing Direction: |
12:00 |
| Controller: |
Splc501c |
| Backlight: |
Blue |
| Opeating Temperature: |
-20~+70 |
| Storage Temperature: |
-30~+80 |
| Usage: |
Industrial Equipment |
| Digital LCD Module Type: |
Metering Module |
| Type: |
LCM |
| Response Time: |
16ms |
| Viewing Angle: |
MVA |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
| Touch Screen Type: |
N/a |
Product Description

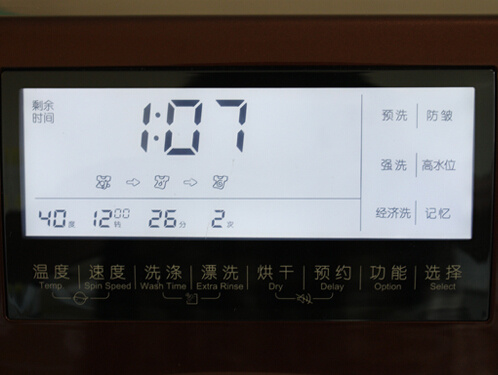

Graphic LCD display for washing machine
| ITEM | CONTENT | UNIT |
| MODULE DIMENSION | 69.9(w)*94.3(h)*9.0(t) Max | mm |
| ACTIVE AREA | 56.27(w)*38.35(h) | mm |
| DOT SIZE | 0.55 (w)*0.39(h) | mm |
| DOT SPACE | 0.05(w)*0.05(h) | mm |
Our advantages:
1) Small MOQ accepted
2) Competitive price and short lead-time
3) ROHS/ ISO 14001 and other related certification are available
4) Reliable and trustable after sale service
Application: Auto electronics,3D&Shutter,Meters&Instrument,Telecommunication,Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics
| Usage/Application: | Lift Automobile Household Appliance Nurse call/pager Detector Others |
| Display type: | TN HTN STN FSTN TFT VA |
| Display content: | Character Graphic Segment Dot-matrix |
| Polarizer type: | Transmissive Transflective Reflective
Negative Positive |
| Pixel/resolution: |
|
| Module size: |
|
| Viewing area: |
|
| Active area: |
|
| Power supply voltage: |
|
| Backlight: | LED EL CCFL Without |
| Driving scheme: | Duty: Bias: |
| Assembly type: | COG COB COF TAB SMT |
| Viewing direction: | 6:00 O'clock 12:00 O'clock |
| Connector type: | Pin FPC Heat-seal Zebra |
| Touch panel: | CTP RTP Without |
| Surface treatment: | Anti-glare Anti UV Others |
| Storage temperature: | -30°C to +70°C |
| Operation temperature: | -20°C to +60°C |
| Demand quantity: |
|
If you have any questions, pls feel free to contact us!
Suzhou Tomy Optronics Co., Ltd (TOMY) established in 2010, specializes in the design, development, production, sales and services of state-of-the-art liquid crystal display modules and related electronic products.
TOMY mainly produces thousandds of types of standard or customized TN, STN, color STN and TFT-LCM products. Application of our products include: Instruments, office equipments, messages, telecommunications, home appliances as well as automotives.
Our TOMY Optronics Is a professional LCD manufacturer with 19 years' Experience. Our production equipment and technology brought in from Japan. TOMY is equipped with a young and highly qualified management and technology team dominated by postgraduate students. This guarantees that TOMY will take the lead in its industry.
TOMY has passed ISO 9001, ISO 14001, TS 16949 certifications as well as RoHS and REACH certification. TOMY is confident and determined to overcome endless challenges to become the best small-to medium sized display customization company.
