| Prod Model: |
AF200-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
220V, 450-900W |
| Refrigerant: |
R22 / R404A |
| Stoage Capacity: |
30kg |
| Condenser Unit: |
Air |
| Certification: |
CE |
| Condition: |
New |
| Ice Making: |
Rotary Extrusion |
| Ice Shape: |
Granular Snow Ice |

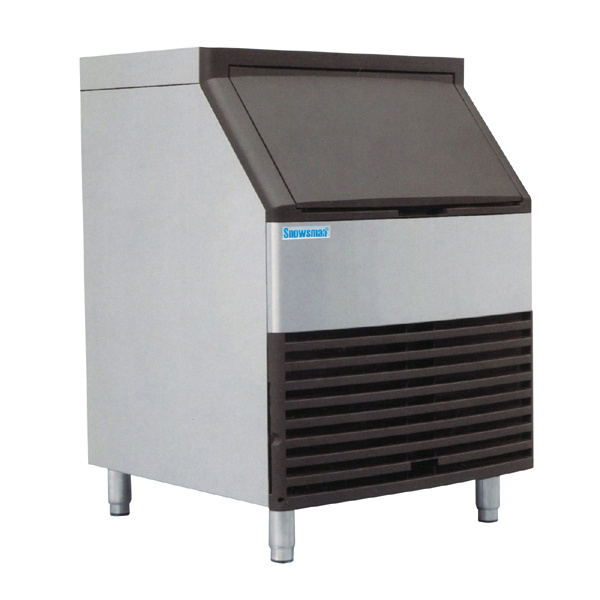

Product Description
Model
Max outputs (Kg / day)
Ice shape
Storage capacity (Kg)
Size
WxDxH (mm)
Power
Refrigerant
Conderser unit
AF-200
90
granular snow ice
50
670x680x1050
220V,450W
R22/ R404a
air
AF-250
120
granular snow ice
50
670x680x1050
220V,650W
R22/ R404a
air
AF-400
180
granular
snow ice
50
670x680x1050
220V,900W
R22/ R404a
air
Snow ice with small shape, the tempreture is slightly below 0 degree. The snow ice used in hospital, laboratory, hotel sashimi, fresh display of buffet, cold drink shop, wine & champagne cooling and supermark for seafood display.
Characterristics of granular snow ice machine as below:
1. Adopt advanced deceleration motor, free of maintenance, low noise, can work smmothly at the poor conditions;
2. Ratary extrusion type for ice making, compact structure, automatic separation for ice & water, ice is dry & fine;
3. Floating ball type of water inlet, no residual water, save the drainage process, high speed of ice production with energy saving;
4. The original " intelligent core" ensure the machine the stable performance & convinent maintenance;
5. Front mounted radiator, convenient cleaning, low noise;
6. Inner tank, water tank & water pipe meet food grade standards;
7. Overall ice storage tank, the thermal insulation layer is integral foam, excellent heat preservation performance.
