| Prod Model: |
QGL-15FA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Direct Cooling |
| Certification: |
CE |
| Condition: |
New |
Product Description
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: QINGFENG
- Model Number: QGL-15FA
- Type: Air Cooler, Air Cooler
- Style: Double-temperature, Double-temperature
- Certification: CE
- Capacity: 1600ton/day
- Temperature: 12deg. Celsius, 12deg. C.
- Climate Type: 0-50deg. clesius, 5 to 50deg C.
- Refrigerant: R404A, R22, R404a, R22
Packaging & Delivery
| Packaging Details: | PLYWOOD CASE |
|---|
| Delivery Detail: | 30 working days |
|---|
Specifications
Grain refrigerator: the most natural & cost effective way to preserve all kind of grains, seeds and perishable granular.
Grain Refrigerator
:
Grain Refrigerator: Function:
Grain is our food! Using KINGFIT Grain Cooler wecan help you treat it that way. Grain is also a living mateial and has
to be treated accordingly. A KINGFIT Grain Cooler accomplshes whatnaure cannot always provided: safe strage
temperature regardlessof ambient conditions.
The most natural and cost effective way to preserve all kind of grains, seeds and perishable granular products.
- Prevention from insect development & fungi.
- No chemical treatment.
- Partial drying effect.
- Reduction of dry substance loss.
- Works independent of ambient conditions.
- Keeps the fresh harvest scent.
- No yellow colored rice.
Avoids typical problems of grain storing: heat development, insect activity, product fermentation, moulds, toxins,
weight loss because of grain metabolism, water condensation. Grain chilling permits higher grain moisture contents,
without risk. With the use of cooling procedure, expensive and dangerous chemical fumigations are avoided.
The product is stored in best possible condition. Operating costs of grain chilling are cheaper than traditional ones.
Typical pay-back for the QINGFENGcooling units is achieved in 1-2 years. Even shorter under the tropics.
| Seed grains | Bread grains | Fodder grains |
Moisture content% | Product
Temp ºC | Approx. storage
period | Product
Temp ºC | Approx. storage
period | Product
Temp ºC | Approx. storage
period |
12-15 | 9-12 | unilimited | 9-12 | unilimited | 10-12 | unilimited |
15-16 | 8-10 | 12-18 months | 9-10 | unilimited | 9-10 | unilimited |
16-18 | 5-7 | 4-6 months | 8-10 | 5-10 months | 8-10 | 6-13 months |
18-20 | 5 | 2-3 months | 8-10 | 2-7 months | 8-10 | 3-9 months |
10-22 | 5 | 1 month | 6-8 | 1-4 months | 6-8 | 1-5 months |
Applications:
The cooling system is specially recommended for rice, maize, wheat, barley, soya beans, sunflower seeds,
sorghum, cotton seeds, green coffee beans, lucerne pellets, feed pellets etc.
The refrigeration can be used in silos and warehouses. In silos, the chiller air outlet is connected to the existing
aeration inlet pipe. The use of the cooling system is usually immediate and no additional works are necessary.
In warehouses, an on-floor or under-floor duct system has to be previously arranged. Our technical department
will gladly offer you support.

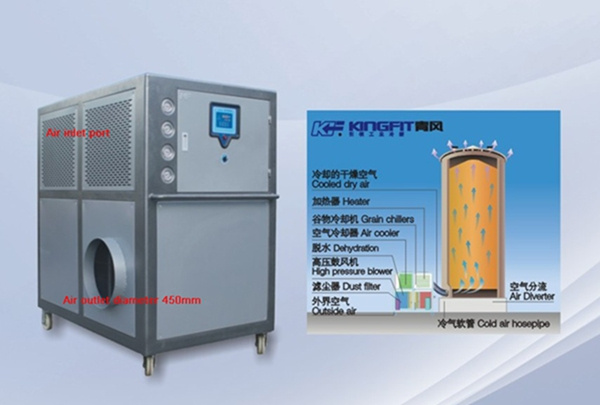

How it works:
The cold air produced by the QINGFENG chiller unit us introduced at the bottom of the silo. This air begins to cool
the bottom layer of grain. The air pushes the heat to pass upwards through the mass of grain and escapes as
warm exhaust air. As the cooling process develops, a cooling zone is formed and slowly moving up through the grain.
The cooling operation is completed as soon as the escaping air is cold. The same sequence occurs in case of
flat storage plants. Grain is a band heat transmitter, in other words, it is a good insulator material. The radiation of
heat from the outside is of little influence, even if stored inside of steel silos or warehouses. For this reason,
no insulation of walls is required.
Tecnical Parameters:

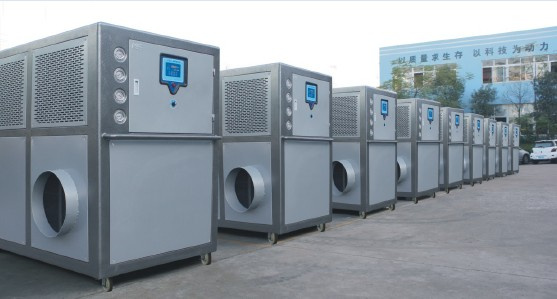

Pictures for your reference:
Zhejiang Kingfit Environment Co., Ltd.is subsidiary of Kingfit International Group Limited in East China, founded in 1998, with total capital of USD 5.38 million of Sino-joint venture enterprise. East China factory is located at Shuige Ind. Park in Lishui City of Zhejiang Province with convenient traffic, and covers a land area of 20000sqm. Our company is constantly introducing advanced manufacturing workmanship and testing equipment, invests 5% of it gross sales amount into R&D center every year and we established tight national testing center. The products are recognized by the users from abroad and at home and entitled "the Top 10 Well-known Refrigeration Equipment in China" and "National Quality Guaranteed and Eligible Product in Refrigeration Equipment Industry" etc. Our company introduced many leading technology production lines for the manufacture of screw style chiller, box-type chiller, cooling tower, freezing dryer, high temperature heat pump, ice making machine etc. The products are exported to more than 30 countries, this is a high tech enterprise integrated scientific research, production and trade, and is also currently the largest and most professional refrigerating and heating equipment manufacturer in China.
We have passed ISO9000, CE, AS certification, gradually becoming the navigator of industrial refrigerating and heating. And received many patented technologies, such as anti-corrosion flooded screw style chiller, flooded scroll style chiller, economizer, U-type anti-corrosion evaporator, external thread titanium evaporation, ice machine etc.
We sincerely welcome customers at abroad and home to our company for cooperation and let's make contribution to the flourish and development of refrigeration equipment in China together.
